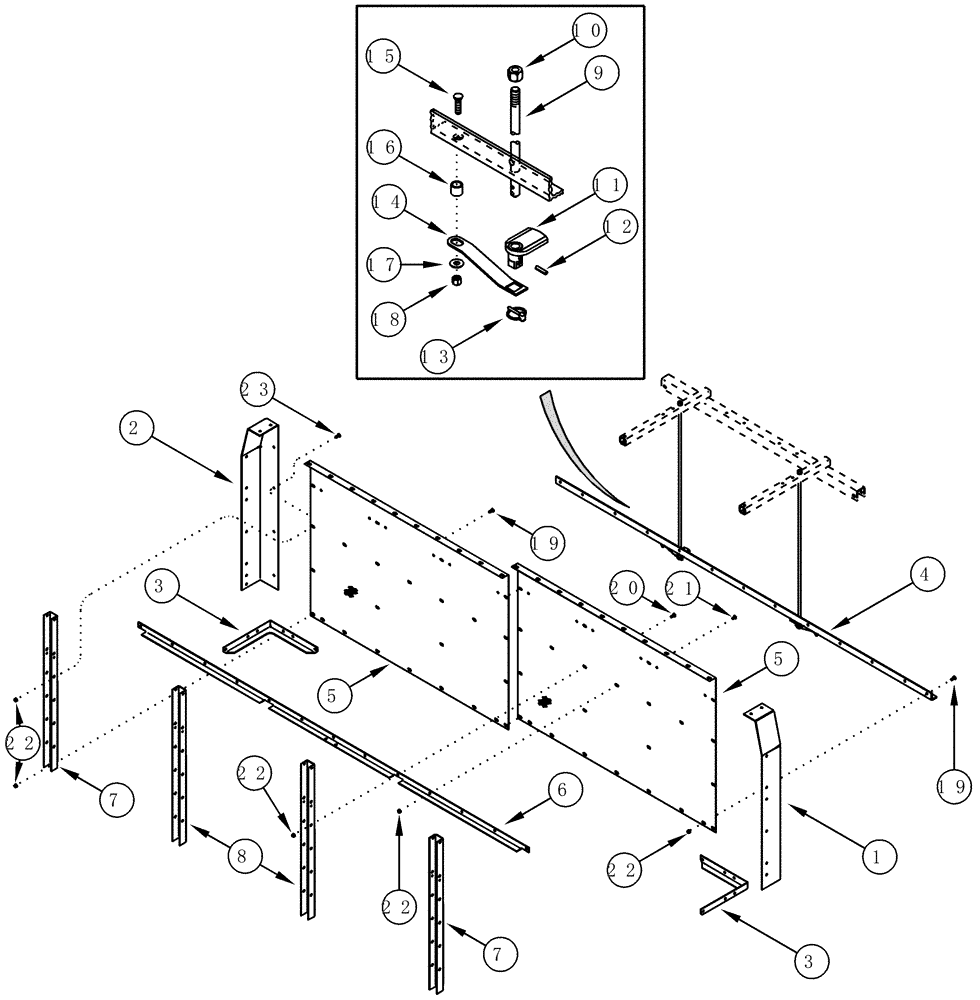

Запчасти Case IH CPX610 (09D-03) - LID, BASKET - REAR WALL (16) - BASKET

1

198850A2

COVER

Corner Post, Left Hand Rear

1шт.

2

198851A2

COVER

Corner Post, Right Hand Rear

1шт.

3

239327A1

BRACE

Basket Corner, Lower

2шт.

4

246437A1

ANGLE

Basket Top Lower Lid

1шт.

5

245063A1

SHEET

Rear, Serial Range: -JJC0250245

2шт.

5

86990569

SHEET

Rear, Start Serial: JFG010501

2шт.

6

220417A5

ANGLE

Center Tie

1шт.

7

244794A1

CHANNEL

Vertical Rear, Outer

2шт.

8

244795A1

CHANNEL

Vertical Rear, Inner

2шт.

9

220606A3

ROD

Basket Top Guide

2шт.

10

231-41110

LOCK NUT,5/8"-11, GB

2шт.

11

243203A1

PLATE

Basket Top Lock

2шт.

12

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

2шт.

13

A33497

LINCH PIN,4.76mm OD Pin

2шт.

14

243131A2

PLATE

Basket Lock Keeper

2шт.

15

420-2624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2; 8

2шт.

16

313458A1

SPACER

2шт.

17

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

18

231-4146

NUT,3/8"-16, GB

2шт.

19

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

10шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

9шт.

22

231-5146

FLANGE NUT,3/8"-16

36шт.

23

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

10шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

17шт.
