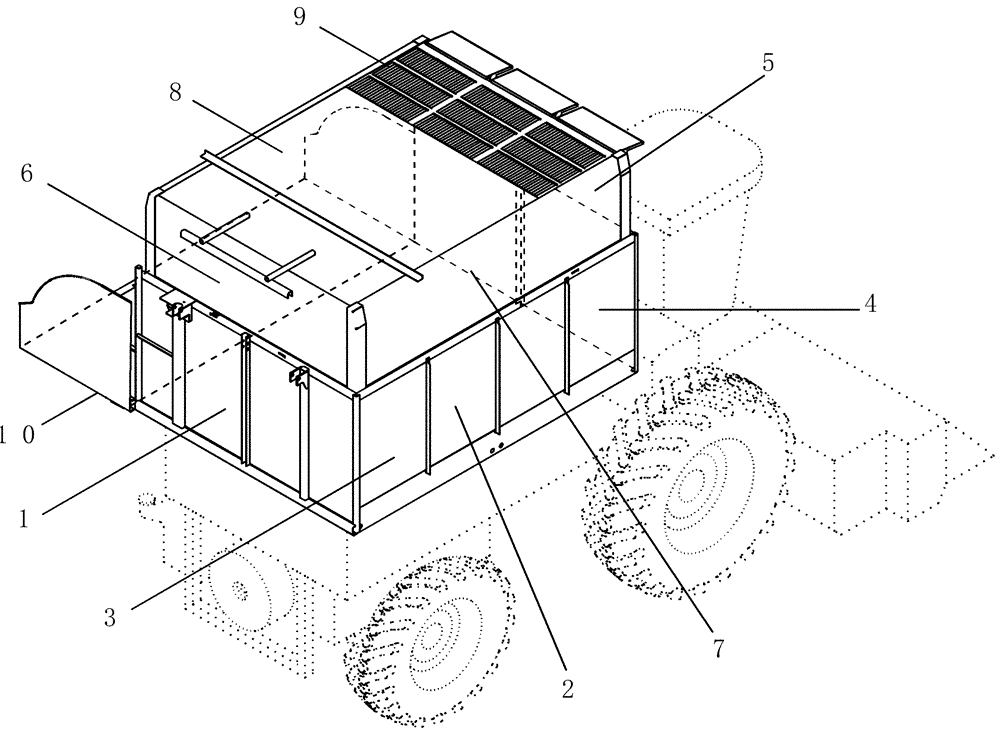

Запчасти Case IH CPX610 (09D-01) - MAJOR BASKET ASSEMBLIES (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY, Inc. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BASKET, Floor

1шт.

See Figures 9D-14, 9D-15

1шт.

2

NSS

NOT SOLD SEPARAT

BASKET, Right Hand Side

1шт.

See Figure 9D-12

1шт.

3

NSS

NOT SOLD SEPARAT

BASKET, Rear

1шт.

See Figure 9D-11

1шт.

4

NSS

NOT SOLD SEPARAT

BASKET, Front

1шт.

See Figure 9D-10

1шт.

252722A2

LID

Basket Lid, Inc. 5- 9, Serial Range: -JJC0250199

1шт.

252722A3

LID

LID Basket Lid, Inc. 5 - 9 (Shown), Start Serial: JJC0250200

1шт.

5

NSS

NOT SOLD SEPARAT

PANEL, Basket Lid, Front Wall

1шт.

See Figure 9D-02

1шт.

6

NSS

NOT SOLD SEPARAT

PANEL, Basket Lid, Rear Wall

1шт.

See Figure 9D-03

1шт.

7

NSS

NOT SOLD SEPARAT

PANEL, Basket Lid, Right Hand Wall

1шт.

See Figure 9D-04

1шт.

8

NSS

NOT SOLD SEPARAT

PANEL, Basket Lid, Left Hand Wall

1шт.

See Figure 9D-05

1шт.

9

NSS

NOT SOLD SEPARAT

PANEL, Basket Lid, Top

1шт.

See Figure 9D-06

1шт.

10

NSS

NOT SOLD SEPARAT

Door Assy

1шт.

See Figures 9D-16 - 9D-18A

1шт.
