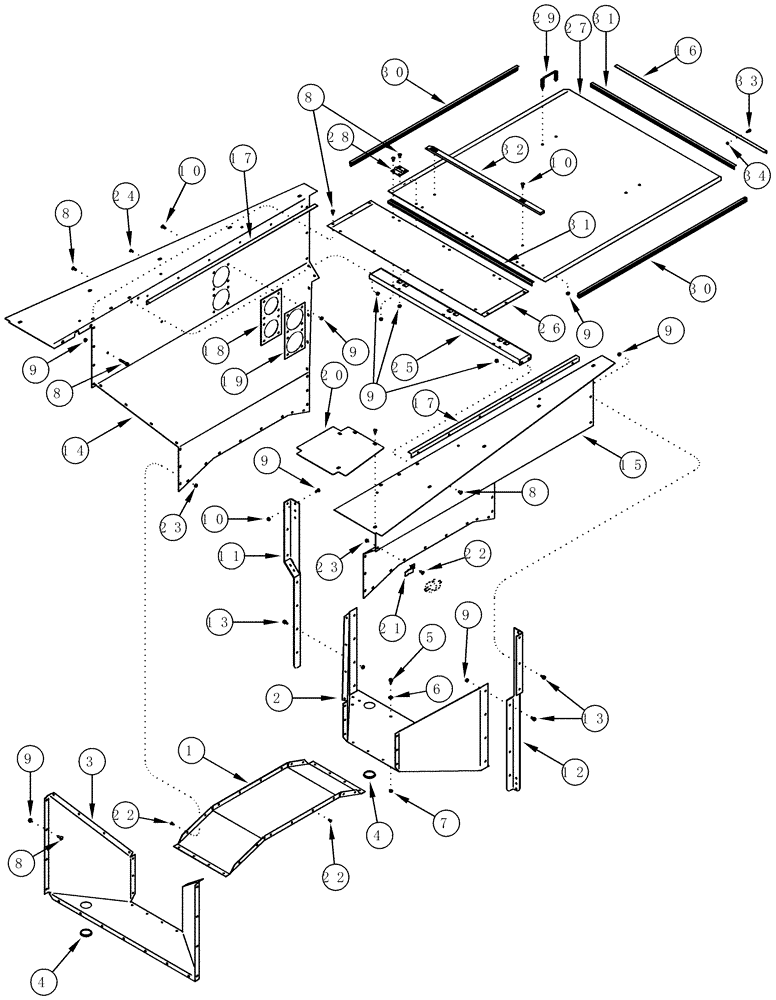

Запчасти Case IH CPX610 (09C-22) - AIR TUNNEL - BTW JJC0250100 & JJC0250199 (15) - HANDLING SYSTEM

1

304373A3

SHEET

Center Floor

1шт.

2

447299A1

SHEET

Front Floor

1шт.

3

304374A2

SHEET

Rear Floor

1шт.

4

205-128

HOLE PLUG BUTTON,2 1/2"

2-1/2 OD

2шт.

5

113-84

BOLT,Hex, 5/16" - 18 x 3", Gr 5, Full Thd

1шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

55шт.

9

825-5148

SERRATED NUT,M8, Flg Ser

99шт.

10

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

M8 x 20

27шт.

11

304378A2

SUPPORT

Left Hand

1шт.

12

304382A2

SUPPORT

Right Hand

1шт.

13

905-8016

BOLT,Hex Flg, M8 x 16mm

16шт.

14

441278A1

SHEET

Left Side

1шт.

15

441279A1

SHEET

Right Side

1шт.

16

321179A1

ANGLE

Door Front, Seal

1шт.

17

321050A1

ANGLE

Door, Side, Seal

2шт.

18

321286A2

SEAL

Charge Air Tubes

1шт.

19

321287A1

PLATE

Charge Air Tubes

1шт.

20

441281A1

COVER

2шт.

21

408340A1

BRACKET

Fuel Filter Mounting

1шт.

22

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

64шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Not Illustrated

64шт.

24

905-8050

BOLT,Hex Serr, M8 x 50mm

M8 x 50

1шт.

25

362853A1

CHANNEL

1шт.

26

314306A3

COVER

1шт.

27

314298A3

DOOR ASSY.

Cooler Access

1шт.

28

215720C1

HINGE

3шт.

29

1278124C1

HANDLE

2шт.

30

321048A1

DOOR SEAL

2шт.

31

321049A1

DOOR SEAL

2шт.

32

429207A1

GUIDE

Chain

1шт.

33

905-6016

BOLT,M6 x 16mm

M6 x 16

7шт.

34

825-5146

SERRATED NUT,M6, Flg Ser

7шт.

35

131-137

SPRING NUT,Ret, 5/16"-18

10шт.

36

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.
