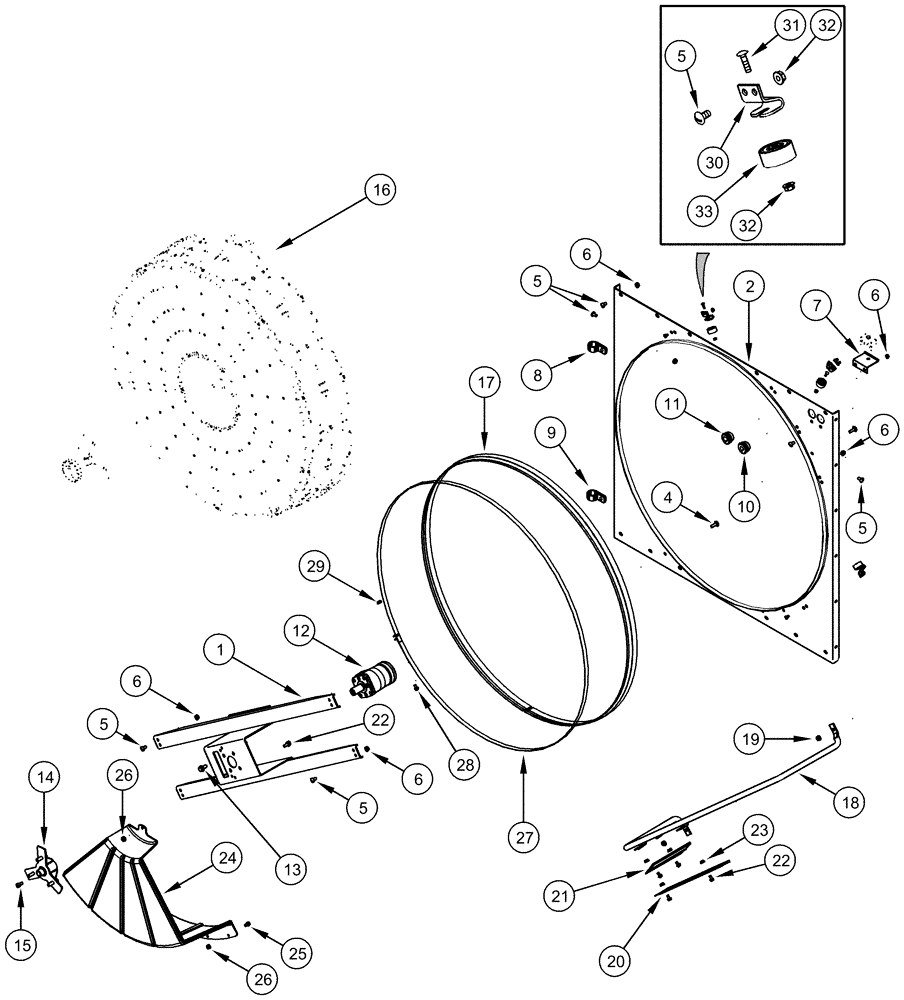

Запчасти Case IH CPX610 (09C-18) - ROTARY AIR SCREEN MOUNTING AND BRUSHES (15) - HANDLING SYSTEM

1

86998791

BRACKET

Rotary Air Screen, Replaces 392759A1

1шт.

2

413326A3

SUPPORT ASSY.

Rotary Air Screen

1шт.

4

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

5шт.

5

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

, Serial Range: -JJC0250199

39шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

, Start Serial: JJC0250200

39шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

, Serial Range: -JJC0250199

41шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0250200

41шт.

7

396393A1

BRACKET

1шт.

8

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

9

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

10

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

11

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

12

401198A1

MOTOR, HYDRAULIC,GEAR, 97 CC

Inc. 12A, 12B

1шт.

12a

1542724C1

SEAL KIT

Not Illustrated

1шт.

12b

906093R1

KEY,M8 x 7 x 32, Par

8 x 7 x 32

1шт.

13

87021006

BOLT,M10 x 26.4mm, Cl 10.9

M10 x 16; 10.9, Replaces 854-10020

4шт.

14

396942A2

HUB

Rotary Air Screen

1шт.

15

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

16

REF

INSTRUCTION

Rotary Air Screen

1шт.

See Figure 9C-19

1шт.

17

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

, Start Serial: JJC0250200

1шт.

17

86976657

SEAL

, Serial Range: -JJC0250199

1шт.

18

395909A1

TUBE

Brush Mounting

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

395905A2

BRUSH

Front

1шт.

21

395906A2

BRUSH

Side

1шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

24

413961A3

BAFFLE

1шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4, Replaces 905-6016

5шт.

26

231-5344

FLANGE NUT,Flg, 1/4"-20

(Replaces 825-5146)

5шт.

27

392787A1

CLAMP

, Serial Range: -JJC0250100

1шт.

27

86976658

CLAMP,1060mm

, Start Serial: JJC0250100

1шт.

28

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

29

231-1444

NUT,1/4"-20, GB

1шт.

30

444034A2

SUPPORT

4шт.

31

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

1/4 x 1; 2

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

87408568

BALL BEARING,44.45mm OD

Idler

4шт.

33

47532534

BALL BEARING

, Start Year: 02-OCT-13

4шт.
