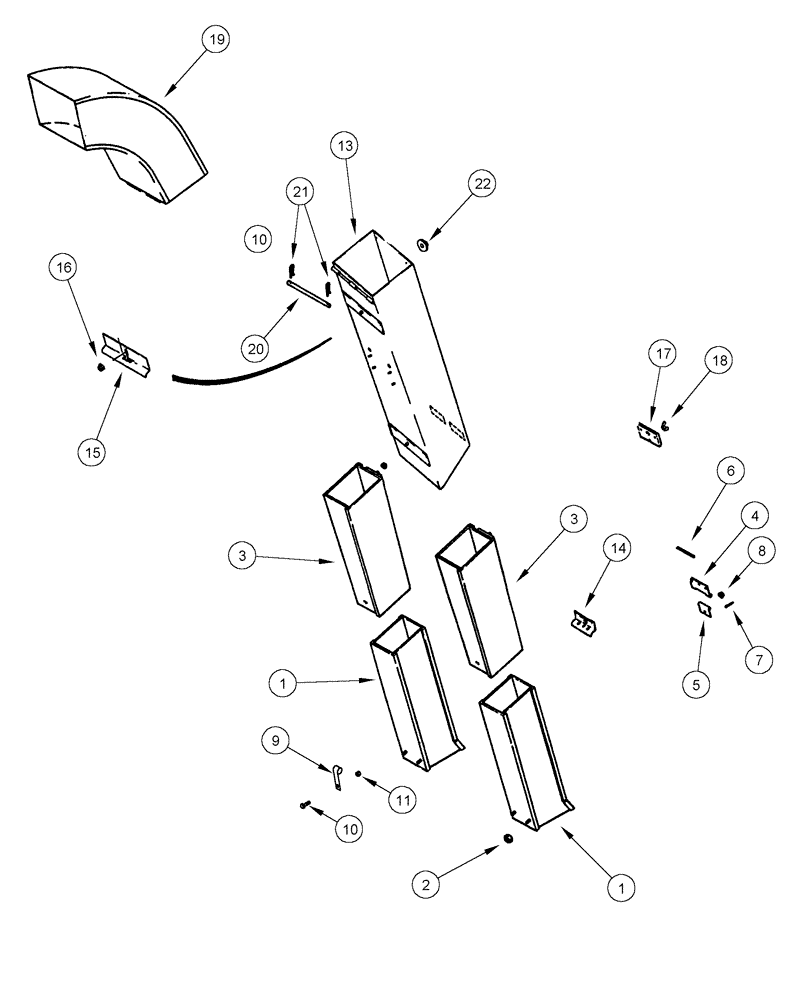

Запчасти Case IH CPX610 (09C-14) - CONVEYOR CHUTES - CENTER (15) - HANDLING SYSTEM

1

1349934C3

CHUTE

Male, Lower

2шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

1349938C1

CHUTE

Female

2шт.

4

1349843C1

HINGE

Female, Upper

2шт.

5

1270014C1

HINGE

Male

2шт.

6

1349860C1

PIN,7.94mm OD x 129mm L

2шт.

7

432-816

COTTER PIN,1/8" x 1"

2шт.

8

231-4116

NUT,3/8"-16, GB

3/8

2шт.

9

1984343C1

HOOK

2шт.

10

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

12

231-4115

NUT,5/16"-18, GB

2шт.

13

199607A4

CHUTE

Upper Center, Double

1шт.

14

127589A1

CLAMP

Lower

1шт.

15

127588A1

CLAMP

Upper

1шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

1983180C1

COVER

Duct Access

2шт.

18

129-409

WING NUT,1/4"-20

2шт.

19

199936A3

CHUTE

1шт.

20

233321A2

PIN,7.94mm OD x 366.5mm L

Used With Double Conveyor Chute and Hood

1шт.

21

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

2шт.

22

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

2шт.
