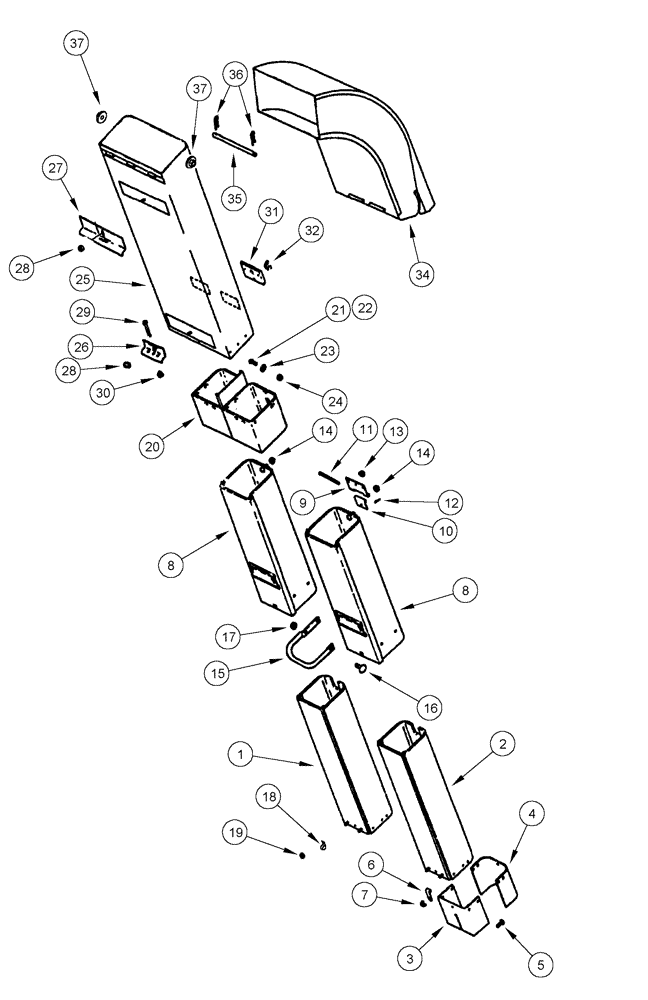

Запчасти Case IH CPX610 (09C-11) - CONVEYOR CHUTES - OUTER, DRUMS NO. 1 & 6 (15) - HANDLING SYSTEM

1

226659A1

CHUTE

Male, Lower, Outer

2шт.

2

1349803C1

CHUTE

Male, Lower, Outer

2шт.

3

131427A2

SHEET

Polyurethane

4шт.

4

131428A2

SHEET

Polyurethane

4шт.

5

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

6

1984343C1

HOOK

Air Pipe

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

8

1984139C3

CHUTE

Female, Outer

2шт.

9

1349843C1

HINGE

Female

2шт.

10

1270014C1

HINGE

Male

2шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

2шт.

12

432-816

COTTER PIN,1/8" x 1"

2шт.

13

231-4116

NUT,3/8"-16, GB

3/8

2шт.

14

231-5146

FLANGE NUT,3/8"-16

4шт.

15

196609A1

BRACKET

Air Hose, Used On Machines With Dual Wheels

2шт.

16

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

19

231-4115

NUT,5/16"-18, GB

2шт.

20

1349872C3

DIVIDER

Double Chute

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

10шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

23

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

11/32 x 3/4 x 1/16

14шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

25

199601A4

CHUTE

Double, Upper

2шт.

26

127589A1

CLAMP

Lower

2шт.

27

127588A1

CLAMP

2шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.

29

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

30

230-4114

NUT,1/4"-20, GA

1/4

4шт.

31

1983180C1

COVER

4шт.

32

126177

WING NUT

1/4

4шт.

34

242378A2

HOOD

Outer, Double

2шт.

35

233321A2

PIN,7.94mm OD x 366.5mm L

2шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

4шт.

37

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

2шт.
