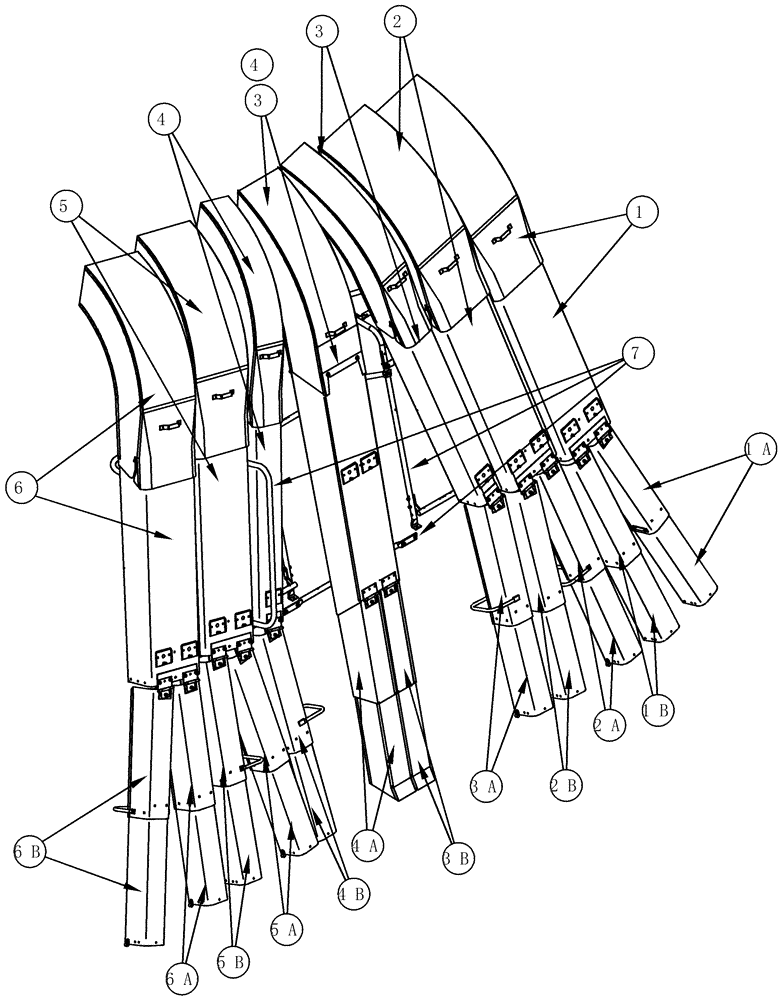

Запчасти Case IH CPX610 (09C-10) - CONVEYOR CHUTES - IDENTIFICATION (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

Chute Assy, Drum Number 1, Inc. 1A, 1B

1шт.

See Figure 9C-11

1шт.

1a

REF

INSTRUCTION

Chute, Rear Drum Outlet

1шт.

1b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

2

REF

INSTRUCTION

Chute Assy, Drum Number 2, Inc. 2A, 2B

1шт.

See Figure 9C-12

1шт.

2a

REF

INSTRUCTION

Chute, Rear Drum Outlet

1шт.

2b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

3

REF

INSTRUCTION

Chute Assy, Drum Number 3, Inc. 3A, 3B

1шт.

See Figures 9C-13, 9C-14

1шт.

3a

REF

INSTRUCTION

Chute, Rear Drum Outlet

1шт.

3b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

Identification

1шт.

4

REF

INSTRUCTION

Chute Assy, Drum Number 4, Inc. 4A, 4B

1шт.

See Figures 9C-13, 9C-14

1шт.

4a

REF

INSTRUCTION

Chute, Rear Drum Outlet

1шт.

4b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

5

REF

INSTRUCTION

Chute Assy, Drum Number 5, Inc. 5A, 5B

1шт.

See Figure 9C-12

1шт.

5a

REF

INSTRUCTION

Chute, Rear Drum Outlet

1шт.

5b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

6

REF

INSTRUCTION

Chute Assy, Drum Number 6, Inc. 6A, 6B

1шт.

See Figure 9C-11

1шт.

6a

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

6b

REF

INSTRUCTION

Chute, Front Drum Outlet

1шт.

7

REF

INSTRUCTION

Support, Conveyor Pipe

1шт.

See Figure 9C-15

1шт.
