Запчасти Case IH CPX610 (09C-01) - DRUM OUTLETS FRONT (15) - HANDLING SYSTEM

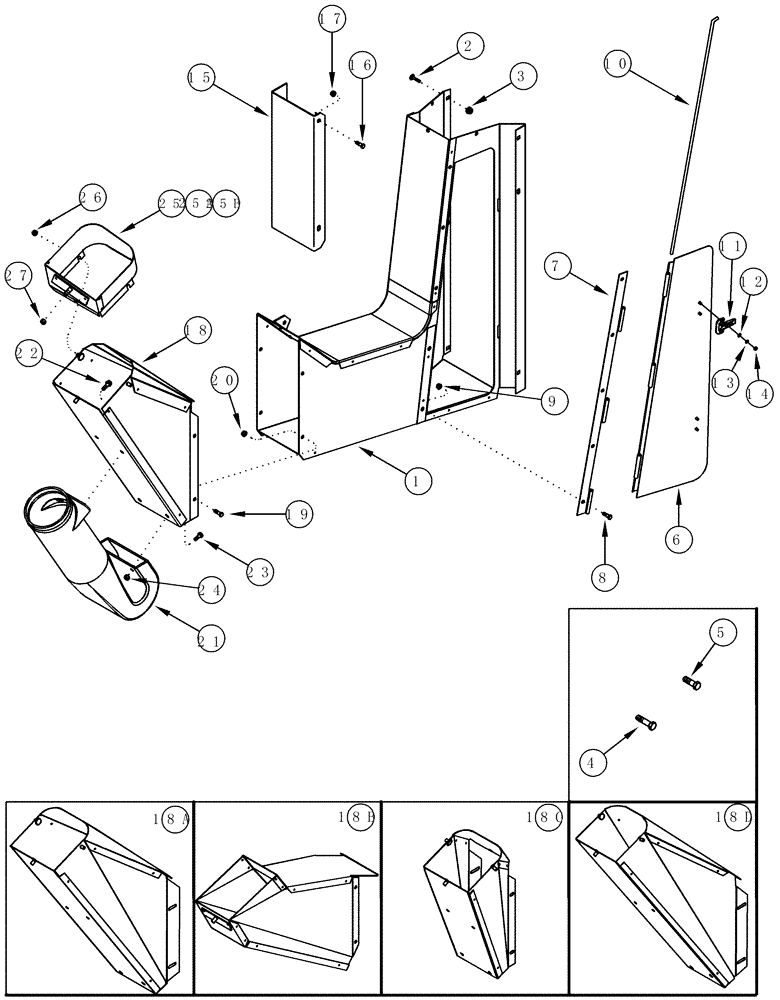

Схема запчастей Case IH CPX610 - (09C-01) - DRUM OUTLETS FRONT (15) - HANDLING SYSTEM
3
7
19
24
4
18c
25b
1
10
20
18
18a
17
11
25a
21
27
25
16
13
6
14
2
26
5
8
18b
22
15
18d
9
12
23

Артикул

Название

Примечание

Количество

431242A1

PACKAGE

Front Outlets, Inc. 1 - 3, 6 - 17

1шт.

1

280026A3

OUTLET

Drum, Front

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

6

291601A1

DOOR

Front Outlet, Access

1шт.

7

291604A1

HINGE

1шт.

8

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

5шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

10

291605A1

PIN,6.35mm OD

1шт.

11

1333780C1

LATCH

2шт.

12

495-31022

WASHER,#10

4шт.

13

492-11010

LOCK WASHER,#10

4шт.

14

225-14210

NUT,#10-32

4шт.

15

280641A1

CHANNEL

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

431647A1

PACKAGE

Front Extension, Inc. 18, 19, 20

1шт.

18

378133A1

EXTENSION ASSY.

Front Outlet, Drum No. 1

1шт.

431243A1

PACKAGE

Front Extension, Inc. 18A, 19, 20

1шт.

18a

281769A2

EXTENSION ASSY.

Front Outlet, Drum No. 2, 5

1шт.

431480A1

PACKAGE

Front Extension, Inc. 18B, 19 (4), 20 (4), 27 (1)

1шт.

18b

282872A1

EXTENSION ASSY.

Front Outlet, Drum No. 3

1шт.

431496A1

PACKAGE

Front Extension, Inc. 18C, 19, 20

1шт.

18c

282308A3

EXTENSION ASSY.

Front Outlet, Drum No. 4

1шт.

431648A1

PACKAGE

Front Extension, Inc. 18D, 19, 20

1шт.

18d

374107A1

EXTENSION ASSY.

Front Outlet, Drum No. 6

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

5шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

431245A1

PACKAGE

Front Nozzles, Inc. 21 - 24

1шт.

21

1984189C2

NOZZLE

Front Long

1шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

431654A1

PACKAGE

Front Transitions, Inc. 25, 26, 27

1шт.

25

378199A1

ADAPTER

Front Outlet, Drum No. 1

1шт.

431655A1

PACKAGE

Front Transitions, Inc. 25A, 26, 27 (1)

1шт.

431244A1

PACKAGE

Front Transitions, Inc. 25B, 26, 27 (1)

1шт.

25a

377156A1

ADAPTER

Front Outlet, Drum No. 2

1шт.

25b

1546036C1

ADAPTER

Transition, Front Outlet, Straight, Drum No. 4, 5

1шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

27

231-4116

NUT,3/8"-16, GB

3/8

2шт.

Выбрано товаров: 43
