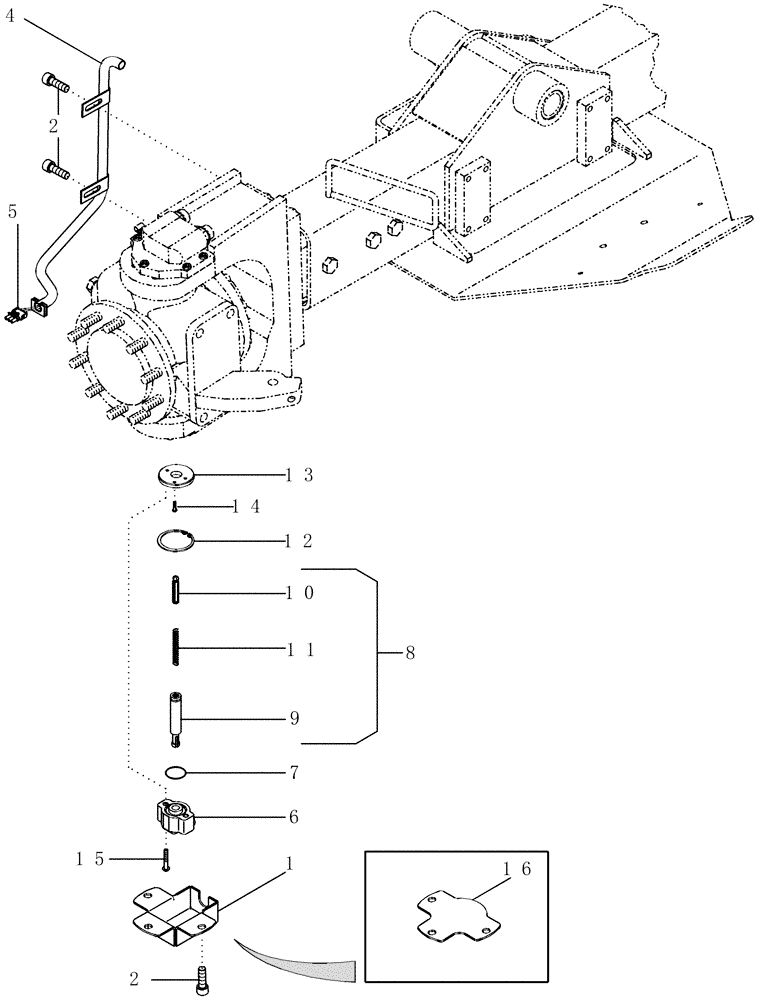

Запчасти Case IH CPX610 (09A-41) - ROW GUIDANCE SYSTEM FEEDBACK SENSOR ASSEMBLY (13) - PICKING SYSTEM

1

400044A1

COVER

Potentiometer

1шт.

2

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

2шт.

3

444673A1

HARNESS

Guidance, Inc. 4 - 5

1шт.

4

400048A2

TUBE

1шт.

5

397193A2

HARNESS

1шт.

See Figure 04-15A

1шт.

6

400041A1

SENSOR

1шт.

7

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

Shaft Assembly, Telescoping, Inc. 9 - 11

1шт.

9

400035A1

PIN

Spring Retaining

1шт.

10

400036A1

SHAFT

Steering Sensor

1шт.

11

400037A1

SPRING

Sensor Pin

1шт.

12

100-21225

SNAP RING,2.25", Int, #225

1шт.

13

400040A1

DISC

Sensor Adjusting

1шт.

14

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

1шт.

15

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

No. 8 x 1-1//4

2шт.

16

400049A1

COVER

Without Row Guidance

1шт.
