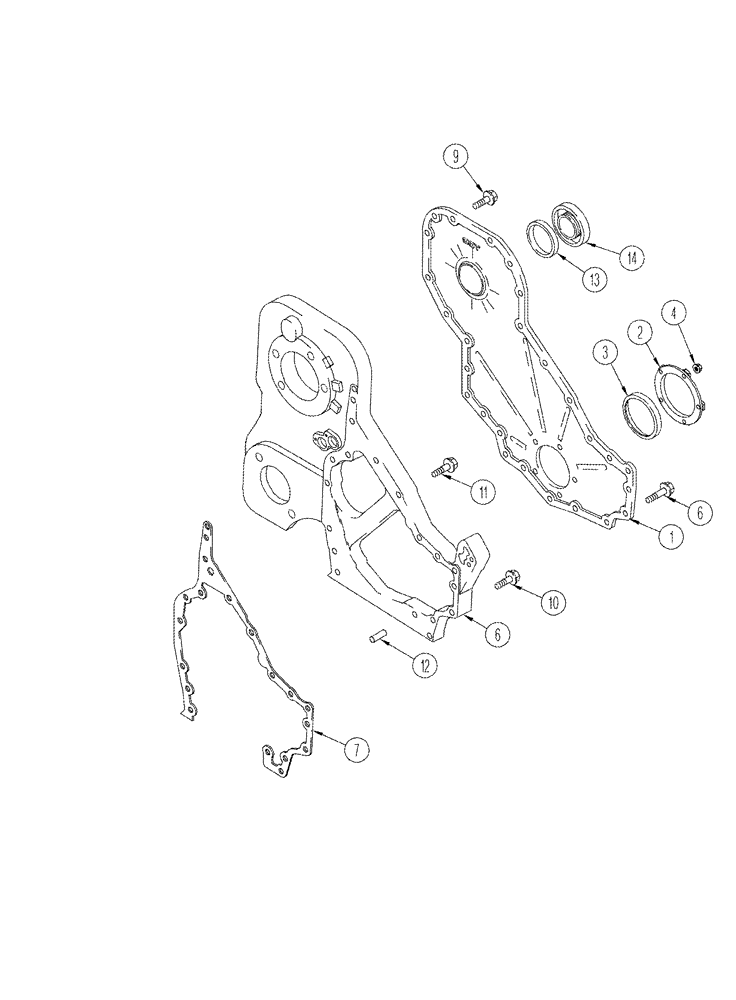

Запчасти Case IH CPX610 (02-10) - FRONT GEAR COVER (01) - ENGINE

1

J948045

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, Order A77790 or A77808

1шт.

See Figure 02-23

1шт.

4

J938077

LOCK NUT

M6

5шт.

5

J823494

SEALANT

3 oz, Not Illustrated

1шт.

6

J945853

HOUSING

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

2шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.

15

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Not Illustrated

1шт.
