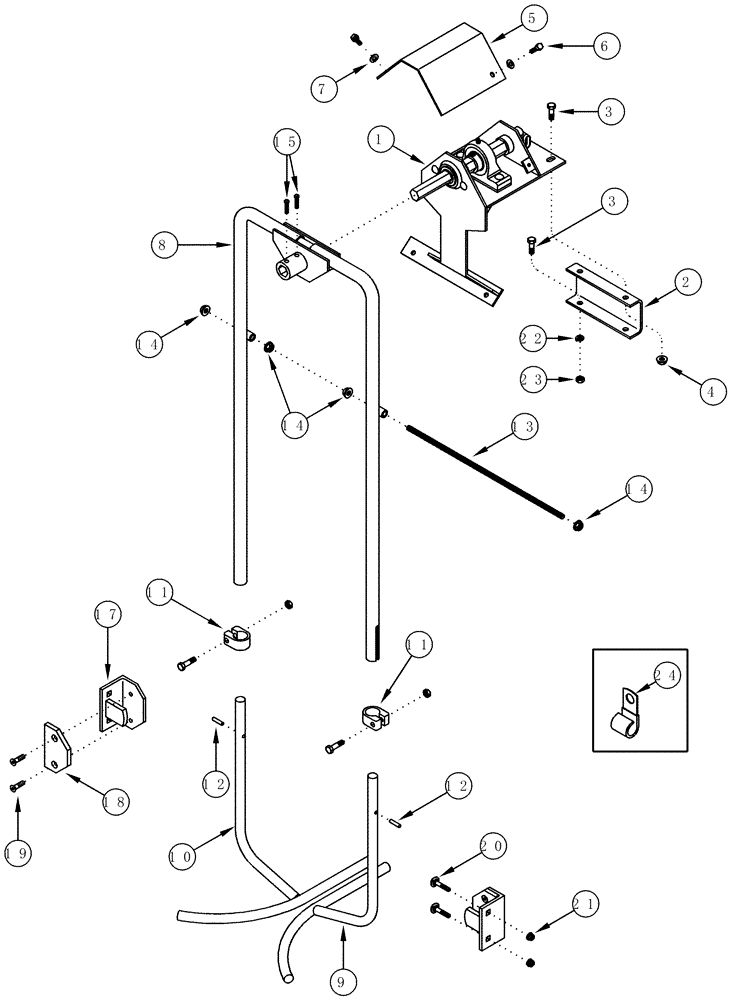

Запчасти Case IH CPX610 (09A-39) - ROW GUIDANCE SYSTEM - PROBE BOX ASSEMBLY (OPTIONAL) (13) - PICKING SYSTEM

1

436244A1

BOX

Probe Assembly

1шт.

See Figure 9A-40

1шт.

2

444777A1

CHANNEL

Probe Box Mount

1шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

444778A1

COVER

Probe Box

1шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

495-11028

WASHER,1/4", SAE

2шт.

8

444676A1

ARM

Pendulum

1шт.

9

444779A1

ROD

Gathering Shoe, Left Hand

1шт.

10

444780A1

ROD

Gathering Shoe, Right Hand

1шт.

11

444979A1

CLAMP

Inc. Hardware

2шт.

12

438-11216

LOCK PIN,3/16" x 1", Slotted

3/16" x 1", Slotted

2шт.

13

445380A1

ROD

3/8

1шт.

14

231-5345

FLANGE NUT,Flg, 5/16"-18

3/8

4шт.

15

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

16

444677A1

GUIDE

Assembly, Inc. 17, 18, 19

2шт.

17

444678A1

GUIDE

1шт.

18

444786A1

WEAR PAD

1шт.

19

461-42512

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/4"

1/4 x 1/4

2шт.

20

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

4шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

Located On Number Four Drum

5шт.
