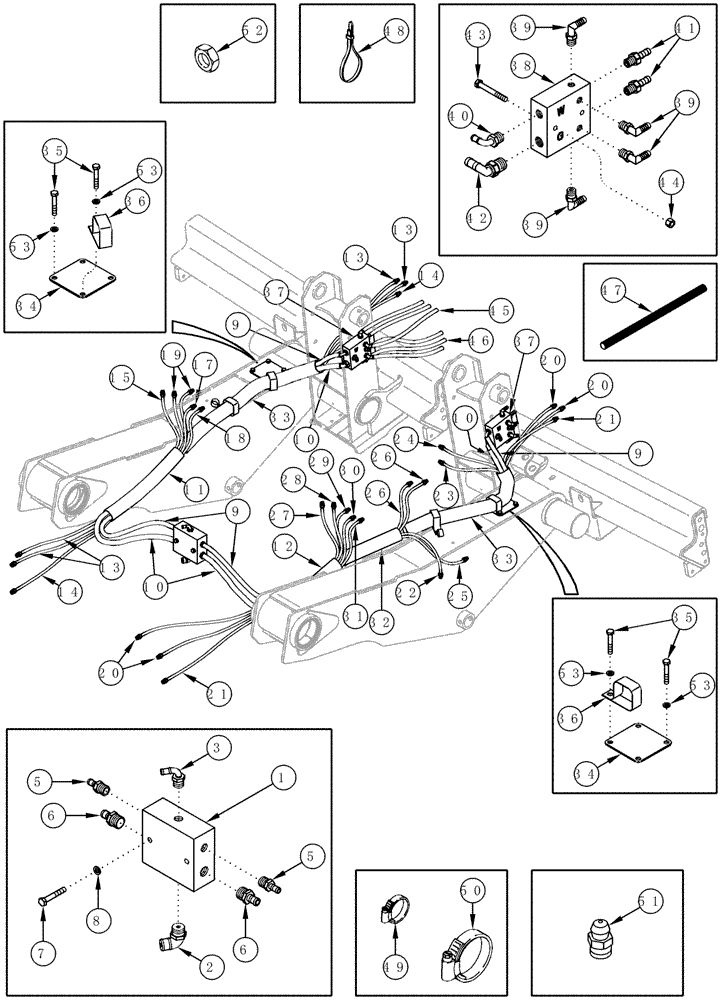

Запчасти Case IH CPX610 (09A-38B) - DRUM BAR LUBRICATION SYSTEM - MANIFOLDS AND HOSE BUNDLES - ASN JJC0250200 (13) - PICKING SYSTEM

1

426601A1

BLOCK

Manifold, Plastic

1шт.

2

426780A1

FITTING,1/2" Male Thread x 3/4" 90 Degree Hose Barb

1/2 Male x 3/4 hose shank

1шт.

3

426777A1

FITTING,3/8" Male Thread x 3/8" 90 Degree Hose Barb

3/8 Male x 3/8 barb

1шт.

4

1546018C1

ELBOW

1/4 PT x 3/8 stem

2шт.

5

426778A1

PIPE FITTING,3/8" Male Thread x 3/8" Hose Barb

3/8 Male x 3/8 hose shank

2шт.

6

426779A1

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

1/2 Male x 1/2 hose shank

2шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

5/16 x 7/8 x 1/16

2шт.

NSS

NOT SOLD SEPARAT

Hose Bundle, Left Hand, Inc. 9 (1), 10 (1), 11, 13 - 19, 33 (1)

1шт.

NSS

NOT SOLD SEPARAT

Hose Bundle, Right Hand, Inc. 9 (1), 10 (1), 12, 20 - 32, 33 (1), 34

1шт.

9

87414875

HOSE,9.53 mm ID x 2540.00 mm

Water Line, 2540 mm (100 in), Cut From 87417263

2шт.

10

426127A1

HOSE

Bar Lube Line, 2337 mm (92 in), Cut From 426950A1

2шт.

11

87415007

SLEEVE

Hose, Cordura, 840 mm (33 in)

1шт.

12

87415926

SLEEVE

Hose, Cordura, 610 mm (24 in)

1шт.

13

87415010

HOSE

Drum Feed #2, #3, 5766 mm (227 in), Grease Filled

2шт.

14

87415009

HOSE

Drum Feed #1, 5842 mm (230 in), Grease Filled

1шт.

15

87414988

HOSE

Lift Arm Pivot, Left Hand, 2032 mm (80 in), Grease Filled

1шт.

16

87414995

HOSE

Toolbar Pivot, Left Hand, 2540 mm (100 in), Grease Filled

1шт.

17

87414990

HOSE

Toolbar Pivot, Left Hand Front Cylinder Pin, 2972 mm (117 in), Grease Filled

2шт.

18

87414997

HOSE

Rockshaft Pivot, Left Hand, 1982 mm (78 in), Grease Filled

1шт.

19

87414992

HOSE,1880.00 mm, SAE 100R7 Class 16

Rockshaft Left Hand Rear Cylinder Pin, 1880 mm (74 in), Grease Filled

2шт.

20

87415011

HOSE

Drum Feed #4, #5, 5995 mm (236 in), Grease Filled

2шт.

21

87415012

HOSE

Drum Feed #6, 6249 mm (246 in), Grease Filled

1шт.

22

87414989

HOSE

Lift Arm Pivot, Right Hand, 2667 mm (105 in), Grease Filled

1шт.

23

87414996

HOSE

Toolbar Pivot, Right Hand, 3150 mm (124 in), Grease Filled

1шт.

24

87414991

HOSE

Toolbar Retainer, Right Hand, 3226 mm (127 in), Grease Filled

1шт.

25

87414994

HOSE

Right Hand Front Cylinder Pin, 3531 mm (139 in), Grease Filled

1шт.

26

87414998

HOSE

Rockshaft Right Hand Rear Cylinder Pin, 2464 mm (97 in), Grease Filled

2шт.

27

87415003

HOSE

Fan Idler Pivot, Right Hand, 1347 mm (53 in), Grease Filled

1шт.

28

87415000

HOSE

Front Fan Front Bearing, 1524 mm (60 in), Grease Filled

1шт.

29

87415002

HOSE

Front Fan Rear Bearing, 1270 mm (50 in), Grease Filled

1шт.

30

87414873

HOSE

Pump Outlet Drum, 1321 mm (52 in), Grease Filled

1шт.

31

87415819

HOSE

Pump Outlet Chassis, 1500 mm (59 in), Grease Filled

1шт.

32

87415928

SLEEVE

Cordura Hose, 1067 mm (42 in)

1шт.

33

87415927

SLEEVE

Cordura Hose, 1346 mm (50-3/8 in)

2шт.

34

87415938

COVER

2шт.

35

430801A1

SCREW

8шт.

36

1301387C2

CLIP

8шт.

37

87414625

MANIFOLD

Block Assy, Grease and Water, See Figure 09A-38B

2шт.

38

87414568

MANIFOLD

1шт.

39

1546018C1

ELBOW

4шт.

40

426777A1

FITTING,3/8" Male Thread x 3/8" 90 Degree Hose Barb

3/8 x 3/8 elbow

1шт.

41

87414642

PIPE FITTING,1/4" Male Thread x 3/8" Hose Barb

1/4 x 3/8 barb

2шт.

42

87414643

FITTING,1/2" Male Thread x 1/2" 90 Degree Hose Barb

1/2 x 1/2 barb 90

1шт.

43

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

44

231-1445

NUT,5/16"-18, GB

4шт.

45

87414876

HOSE,9.53 mm ID x 3048.00 mm

Water, 3048 mm (120 in), Cut From 87417263

6шт.

46

427377A1

HOSE,9.52 mm ID x 3048.00 mm

Lube, Cut From 122467A1

6шт.

47

427379A1

CONDUIT

Convoluted Insulation, 2337 mm (92 in)

6шт.

48

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

49

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

28шт.

50

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

No. 8

4шт.

51

219-8

LUBE NIPPLE,1/4" - 28 NPTF

No longer required

1шт.

52

F53473

LOCK NUT,1/8-27 NPSM

1/8, No Longer Required

1шт.

53

892-11008

LOCK WASHER,8mm ID

8шт.
