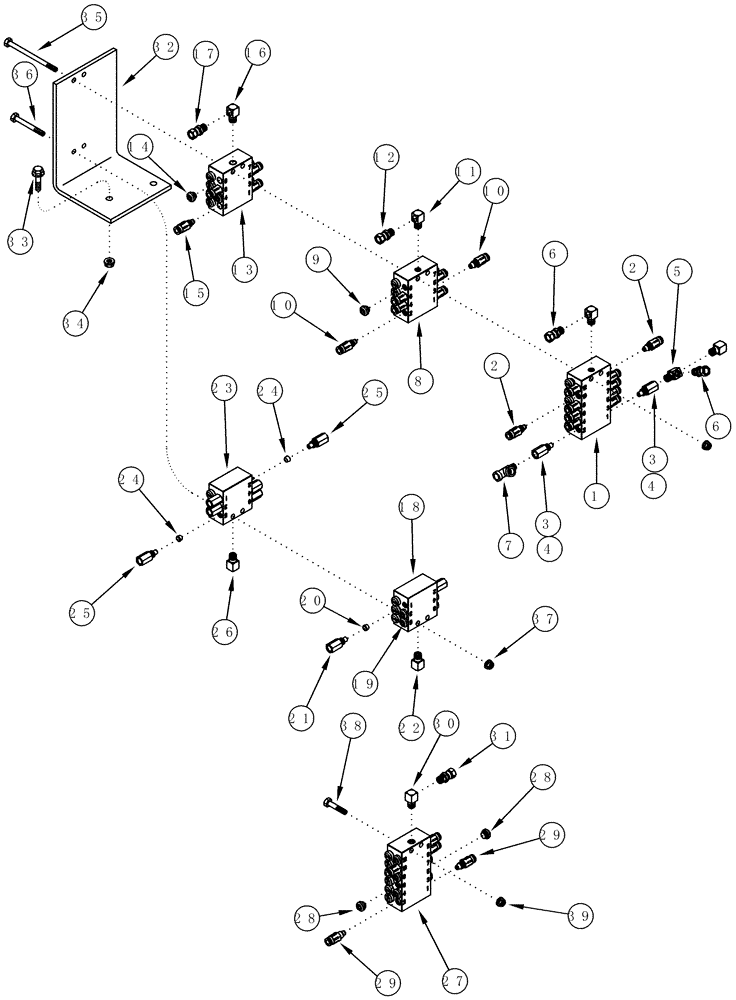

Запчасти Case IH CPX610 (09A-36) - AUTOMATIC LUBRICATION SYSTEM VALVES - OPTIONAL BSN JJC0250200; STANDARD ASN JJC0250200 (13) - PICKING SYSTEM

429336A1

VALVE

Secondary, Chassis Lube, Inc. 1 - 7, Order Components, Replaced By 87422419

1шт.

87422419

VALVE

VALVE Secondary, Chassis Lube, Inc. 1 - 5, 7, Order Components

1шт.

1

429614A1

VALVE

1шт.

2

700714008

HYD CONNECTOR

429336A1 (10)

1шт.

3

700706678

FERRULE

429336A1 (2), 87422419 (12)

1шт.

4

700720095

SAFETY VALVE

429336A1 (2), 87422419 (12)

1шт.

5

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

2шт.

6

429343A1

FITTING

1/8 PT sw, 429336A1 (2)

1шт.

7

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1шт.

429335A1

VALVE

Secondary, Chassis Lube, Inc. 8 - 12, Order Components, Replaced By 87422418

1шт.

87422418

VALVE

VALVE Secondary, Chassis Lube, Inc. 8 - 11, Order Components

1шт.

8

429617A1

VALVE

1шт.

9

429615A1

PLUG

2шт.

10

700714008

HYD CONNECTOR

429335A1 (6)

1шт.

10

700720095

SAFETY VALVE

87422418 (6)

1шт.

10a

700706678

FERRULE

87422418 (6), Not Illustrated

1шт.

11

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

1шт.

12

429343A1

FITTING

1/8 PT sw, 429336A1 (1)

1шт.

429337A1

VALVE

Secondary, Chassis Lube, Inc. 13 - 17, Order Components, Replaced By 87422420

1шт.

87422420

VALVE

VALVE Secondary, Chassis Lube, Inc. 13 - 16, Order Components

1шт.

13

429617A1

VALVE

1шт.

14

429615A1

PLUG

4шт.

15

700714008

HYD CONNECTOR

429335A1 (4)

1шт.

15

700720095

SAFETY VALVE

87422420 (4)

1шт.

15a

700706678

FERRULE

87422420 (4), Not Illustrated

1шт.

16

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

1шт.

17

429343A1

FITTING

1/8 PT sw, 429337A1 (1)

1шт.

429334A1

VALVE

Primary, Chassis Lube, Inc. 18 - 22, Order Components

1шт.

18

700706835

MANIFOLD

1шт.

19

429615A1

PLUG

4шт.

20

700706678

FERRULE

2шт.

21

700720095

SAFETY VALVE

2шт.

22

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

1шт.

429332A1

VALVE

Primary, Drum Lube, Inc. 23 - 26, Order Components

1шт.

23

700706835

MANIFOLD

1шт.

24

700706678

FERRULE

6шт.

25

700720095

SAFETY VALVE

6шт.

26

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

1шт.

429333A1

VALVE

Secondary, Drum Lube, Inc. 27 - 31, Order Components

6шт.

27

429614A1

VALVE

1шт.

28

429615A1

PLUG

7шт.

29

700714008

HYD CONNECTOR

5шт.

30

219-82

ELBOW,90 Degree, 1/8"-27

1/8 Dry

1шт.

31

429343A1

FITTING

1/8 PT sw

1шт.

32

428621A1

ANGLE

1шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

1/4 x 4-1/2

2шт.

36

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4 x 3

2шт.

37

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

38

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

12шт.

39

231-5344

FLANGE NUT,Flg, 1/4"-20

12шт.
