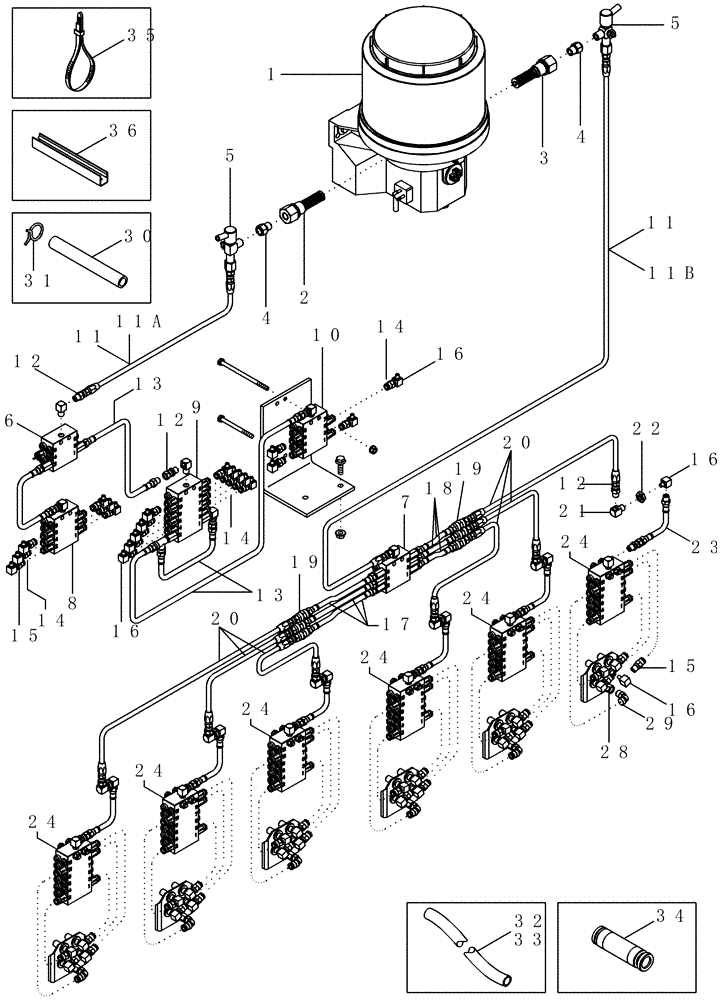

Запчасти Case IH CPX610 (09A-34) - AUTOMATIC LUBRICATION SYSTEM - OPTIONAL BSN JJC0250200; STANDARD ASN JJC0250200 (13) - PICKING SYSTEM

414340A3

PACKAGE Lincoln Auto Lube Pump, Inc. 1 - 29

1шт.

Order From Machinery Price List

1шт.

See Figure 9A-35, Inc. 32 - 41

1шт.

See Figure 9A-36, Inc. 32 - 39

1шт.

1

429330A1

PUMP

Lincoln Auto Lube Pump

1шт.

See Figure 9A-35

1шт.

2

429339A1

ELEMENT

5 mm

1шт.

3

429340A1

ELEMENT

7 mm

1шт.

4

429341A1

FITTING

2шт.

5

429342A1

VALVE PRESSURE RELIE

2шт.

6

429334A1

VALVE

Primary Chassis Divider

1шт.

See Figure 9A-36

1шт.

7

429332A1

VALVE

Primary Drum Divider

1шт.

See Figure 9A-36

1шт.

8

429335A1

VALVE

Secondary Chassis Lube

1шт.

See Figure 9A-36

1шт.

9

429336A1

VALVE

Secondary Chassis Lube

1шт.

See Figure 9A-36

1шт.

10

429337A1

VALVE

Secondary Chassis Lube

1шт.

See Figure 9A-36

1шт.

11

429354A1

HOSE,3.20 mm ID x 2300.00 mm

Cut From 430133A1

2шт.

12

429353A1

COUPLING

1/8 PT sw

16шт.

13

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

280 mm (11 in)

4шт.

14

430142A1

TUBE

2750 mm (108-1/4 in), Grease Filled, Cut From 430134A1

20шт.

15

429352A1

FITTING

1/4 Tube x 1/8 PT str

44шт.

16

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4 tpr

50шт.

17

429356A1

HOSE

1100 mm (43-5/16 in), Right Hand Drum, Grease Filled

3шт.

18

429355A1

HOSE

450 mm (17-23/32 in), Left Hand Drum, Grease Filled

3шт.

19

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1/8 PT

6шт.

20

429357A1

HOSE,3.20 mm ID x 6250.00 mm

Grease Filled, Cut From 430133A1

6шт.

21

429344A1

ELBOW

90 deg

6шт.

22

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

6шт.

23

429348A1

HOSE

900 mm (35-7/16 in), Grease Filled

6шт.

24

429333A1

VALVE

Secondary Drum Lube

6шт.

See Figure 9A-36

1шт.

25

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

12шт.

26

231-5344

FLANGE NUT,Flg, 1/4"-20

12шт.

27

430140A1

TUBE

750 mm (29-1/2 in), Grease Filled, Cut From 430134A1

30шт.

28

429618A1

BUSHING

1/4 tpr x 1/8 PT

6шт.

29

429349A1

ELBOW

1/8 PT x 1/4 sw

6шт.

30

431125A1

HOSE

25.4 mm (1 in)

18шт.

31

1988888C1

CLAMP

18шт.

32

430133A1

TUBE,3.20 mm ID x 12190.00 mm

Grease Filled, Used For Repair Of 1/4 in OD Grease Lines Inside Picker Drum Cabinet With "Push On" Fittings

1шт.

33

430134A1

TUBE

15240 mm (50 ft), Grease Filled

1шт.

34

448990A1

TUBE,1/4" x 1/4"

1/4 in OD, Repair

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

36

195510A1

PROTECTION STRIP

91 mm (3-5/8 in), Cut From 1977224CX

4шт.
