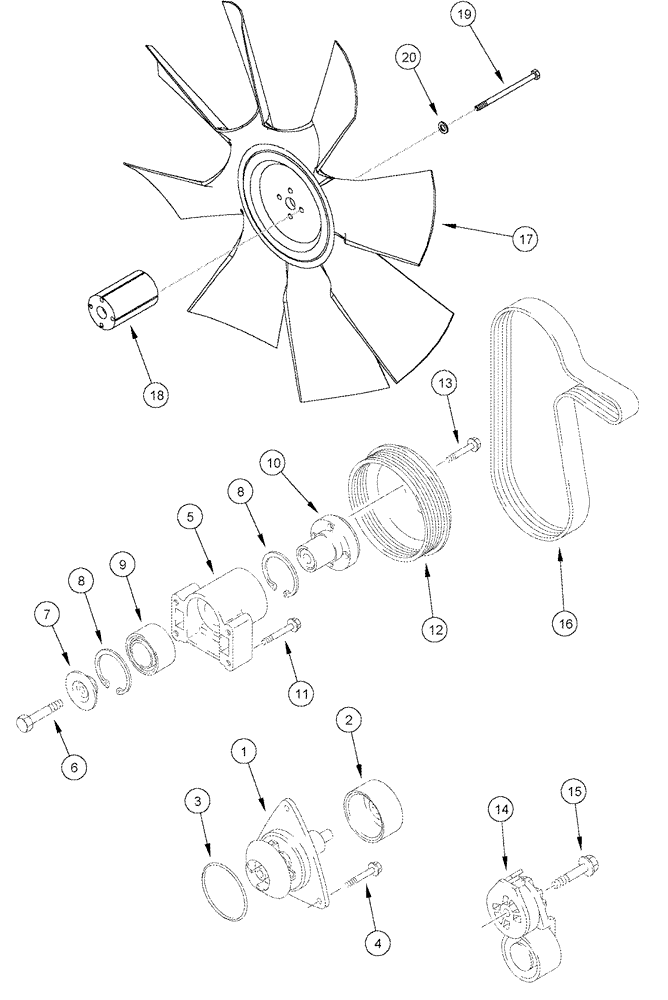

Запчасти Case IH CPX610 (02-09) - WATER PUMP SYSTEM (01) - ENGINE

J804927

WATER PUMP

Includes 1 - 3

1шт.

87308650R

REMAN-WATER PUMP

CPX610 Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

5

J942896

SUPPORT

Includes 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

4шт.

12

84244661

PULLEY,235.65mm OD

1шт.

13

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

14

87436755

BELT TENSIONER

Replaces J945849

1шт.

15

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

16

A78011

V-BELT,3.56 mm W x 1940.00 mm L, 8 Ribs

1шт.

17

282998A2

FAN

813 mm (32 in)

1шт.

18

A184548

SPACER,Fan, 89/90mm Thk

90 mm

1шт.

19

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

M10 x 125

4шт.

20

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.
