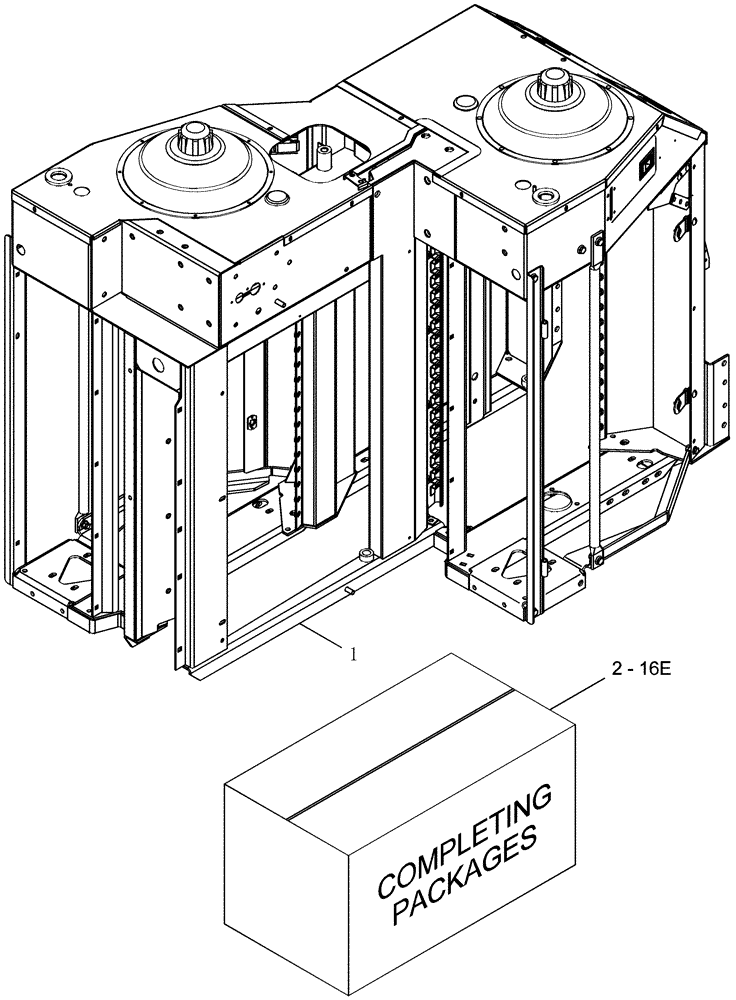

Запчасти Case IH CPX610 (09A-32) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
402920A2
DRUM
Assembly, Service, Drum #1; Inc. 1 - 7, 8, 9A, 9B, 10, 12, 14, 15, 16
1шт.
402921A2
DRUM
Assembly, Service, Drum #2; Inc. 1 - 6, 7A, 8A, 9A, 10B, 11, 12A, 14A, 15C, 16A
1шт.
402922A2
DRUM
Assembly, Service, Drum #3; Inc. 1 - 7, 9, 10C, 11A, 12B, 13, 14, 15A, 16B
1шт.
402923A2
DRUM
Assembly, Service, Drum #4; Inc. 1 - 7, 8B, 10D, 11B, 12C, 13, 14, 15A, 16C
1шт.
402924A2
DRUM
Assembly, Service, Drum #5; Inc. 1 - 6, 7A, 8B, 9, 10B, 11, 12D, 13A, 14A, 15C, 16D
1шт.
402925A2
DRUM
Assembly, Service, Drum #6; Inc. 1 - 7, 8A, 9, 10A, 11A, 12E, 14, 15A, 16E
1шт.
405641A2
DRUM
Assembly, High Yield, Service, Drum #1; Inc. 1 - 7, 8, 9A, 9B, 10, 12, 14, 15, 16
1шт.
405642A2
DRUM
Assembly, High Yield, Service, Drum #2; Inc. 1 - 6, 7A, 8A, 9A, 10B, 11, 12A, 14A, 15C, 16A
1шт.
405643A2
DRUM
Assembly, High Yield, Service, Drum #3; Inc. 1 - 7, 9, 10C, 11A, 12B, 13, 14, 15A, 16B
1шт.
405644A2
DRUM
Assembly, High Yield, Service, Drum #4; Inc. 1 - 7, 8B, 10D, 11B, 12C, 13, 14, 15A, 16C
1шт.
405645A2
DRUM
Assembly, High Yield, Service, Drum #5; Inc. 1 - 6, 7A, 8B, 9, 10B, 11, 12D, 13A, 14A, 15C, 16D
1шт.
405646A2
DRUM
Assembly, High Yield, Service, Drum #6; Inc. 1 - 7, 8A, 9, 10A, 11A, 12E, 14, 15A, 16E
1шт.
1
NSS
NOT SOLD SEPARAT
Drum, Basic Service, With Covers and Harness
1шт.
2
431238A1
PACKAGE
Rotor Doors, See Figure 09A-31A
1шт.
3
431239A1
PACKAGE
Doffer Supports, See Figure 09A-31A
1шт.
4
431242A1
PACKAGE
Front Outlets, See Figure 09C-01
1шт.
5
431245A1
PACKAGE
Front Nozzles, See Figure 09C-01
1шт.
6
431470A1
PACKAGE
Rear Outlets, See Figure 09C-02
1шт.
7
431491A1
PACKAGE
Rear Nozzles, See Figure 09C-02
1шт.
7a
431473A1
PACKAGE
Rear Nozzles, See Figure 09C-02
1шт.
8
431654A1
PACKAGE
Front Transition, See Figure 09C-01
1шт.
8a
431655A1
PACKAGE
Front Transition, See Figure 09C-01
1шт.
8b
431244A1
PACKAGE
Front Transition, See Figure 09C-01
1шт.
9
431475A1
PACKAGE
Rear Transitions, See Figure 09C-02
1шт.
9a
431472A1
PACKAGE
Rear Transitions, See Figure 09C-02
1шт.
9b
431651A1
PACKAGE
Rear Transitions, See Figure 09C-02
1шт.
10
431647A1
PACKAGE
Front Extension, See Figure 09C-01
1шт.
10a
431648A1
PACKAGE
Front Extension, See Figure 09C-01
1шт.
10b
431243A1
PACKAGE
Front Extension, See Figure 09C-01
1шт.
10c
431480A1
PACKAGE
Front Extension, See Figure 09C-01
1шт.
10d
431496A1
PACKAGE
Front Extension, See Figure 09C-01
1шт.
11
431471A1
PACKAGE
Rear Extension, See Figure 09C-02
1шт.
11a
431481A1
PACKAGE
Rear Extension, See Figure 09C-02
1шт.
11b
431497A1
PACKAGE
Rear Extension, See Figure 09C-02
1шт.
12
431240A1
PACKAGE
Gearbox, See Figure 09A-08
1шт.
12a
431634A1
PACKAGE
Gearbox, See Figure 09A-09
1шт.
12b
431635A1
PACKAGE
Gearbox, See Figure 09A-10
1шт.
12c
431636A1
PACKAGE
Gearbox, See Figure 09A-11
1шт.
12d
431637A1
PACKAGE
Gearbox, See Figure 09A-12
1шт.
12e
431280A1
PACKAGE
Gearbox, See Figure 09A-13
1шт.
13
433188A1
PACKAGE
Gearbox Completing, See Figure 09A-11
1шт.
13a
433186A1
PACKAGE
Gearbox Completing, See Figure 09A-12
1шт.
14
414357A1
PACKAGE
Plant Lifter with Automatic Height Control, See Figure(s) 09A-22, 09A-23, 09A-25
1шт.
14a
414358A1
PACKAGE
Plant Lifter without Automatic Height Control, See Figure(s) 09A-22, 09A-23
1шт.
15
448177A1
PACKAGE
Automatic Height Control Completing with Ladder Latch, See Figure(s) 09A-25; 09A-31A
1шт.
15a
431241A1
PACKAGE
Automatic Height Control Completing without Ladder Latch, See Figure(s) 09A-25, 09A-31A
1шт.
15c
431281A1
PACKAGE
Automatic Height Control Fillers, See Figure 09A-31A
1шт.
16
431246A1
PACKAGE
Completing Parts, See Figure 09A-32A
1шт.
16a
431492A1
PACKAGE
Completing Parts
1шт.
16b
431692A1
PACKAGE
Completing Parts
1шт.
16c
431476A1
PACKAGE
Completing Parts
1шт.
16d
431694A1
PACKAGE
Completing Parts
1шт.
16e
431695A1
PACKAGE
Completing Parts
1шт.
Выбрано товаров: 53
