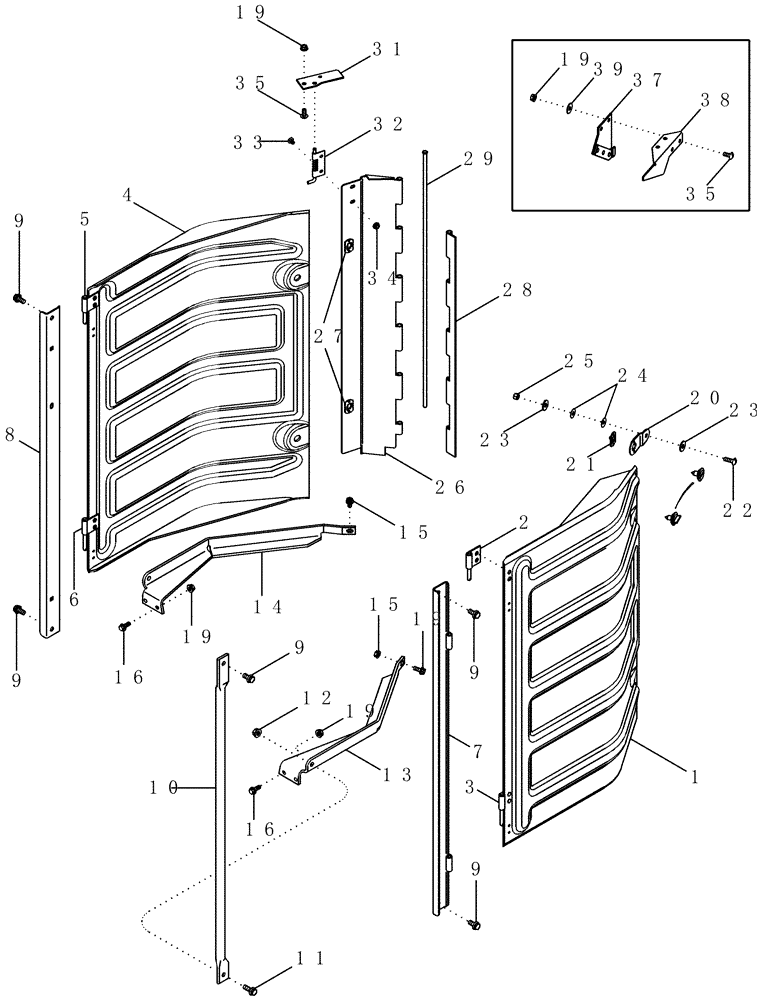

Запчасти Case IH CPX610 (09A-31A) - FRONT AND REAR DOORS - ASN JJC0250200 (13) - PICKING SYSTEM

431238A1

PACKAGE

Rotor Doors, Inc. 1 - 6

1шт.

1

282110A4

DOOR

Front, Rotor Cover

1шт.

2

1546422C1

HINGE

Upper

1шт.

3

1546423C1

HINGE

Lower

1шт.

4

282112A4

DOOR

Rear, Rotor Cover

1шт.

5

1546409C1

HINGE

Upper

1шт.

6

1546412C1

HINGE

Lower

1шт.

431239A1

PACKAGE

Doffer Supports, Inc. 7 - 12

1шт.

7

87408978

HINGE

Doffer Post Angle, Front

1шт.

8

87408979

HINGE

Doffer Post Angle, Rear

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

10

402792A1

BRACE

Doffer Post

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

392698A1

ANGLE

Front Rotor Cover

1шт.

14

87408575

ANGLE

Rotor Cover Stop, Rear

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

20

87409320

LATCH ASSY.

Front Rotor Cover, Inc. 21

2шт.

21

1326406C1

PEDESTAL

Receptacle Shield Fastener

1шт.

22

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

23

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

24

87410387

BELLEVILLE WASHER

Belleville Rotor Door

4шт.

25

231-1445

NUT,5/16"-18, GB

2шт.

26

87409321

DOOR ASSY.

Rear Rotor Cover, Inc. 27

1шт.

27

1326406C1

PEDESTAL

Receptacle Shield Fastener

2шт.

28

87408573

HINGE

HINGE, Cover Rotor Door Latch Plate, Weldment

1шт.

29

87408576

PIN,7.94mm OD x 755mm L

Latch Plate Hinge

1шт.

31

87408571

PLATE

Rotor Door Support

1шт.

32

87410418

PIN

Spring Type

1шт.

33

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2

2шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(5)

2шт.

35

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

36

87413813

FLAP

Assy, Inc. 37

1шт.

37

87411066

FLAP

Moistener Column

1шт.

38

87411065

ANGLE

Cover, Filler AHC

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

2шт.

40

87421438

KIT

Update, Quick Service Moistener Stand, Inc. 6, 17, 26, 28, 29, 31, 32, 36; Also Includes: See Figure(s) 09A-20, Ref 38, 38A, 39, 39A; 09A-25, Ref 28; Also Hardware Package, Templates and Instructions

1шт.

431281A1

PACKAGE

Automatic Height Control Fillers, Inc. 19 (2), 35 (2), 36, 37, 38

1шт.

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch, Inc. 19 (2), 35 (2), 36, 37, 39; Also Includes: See Figure 09A-25

1шт.
