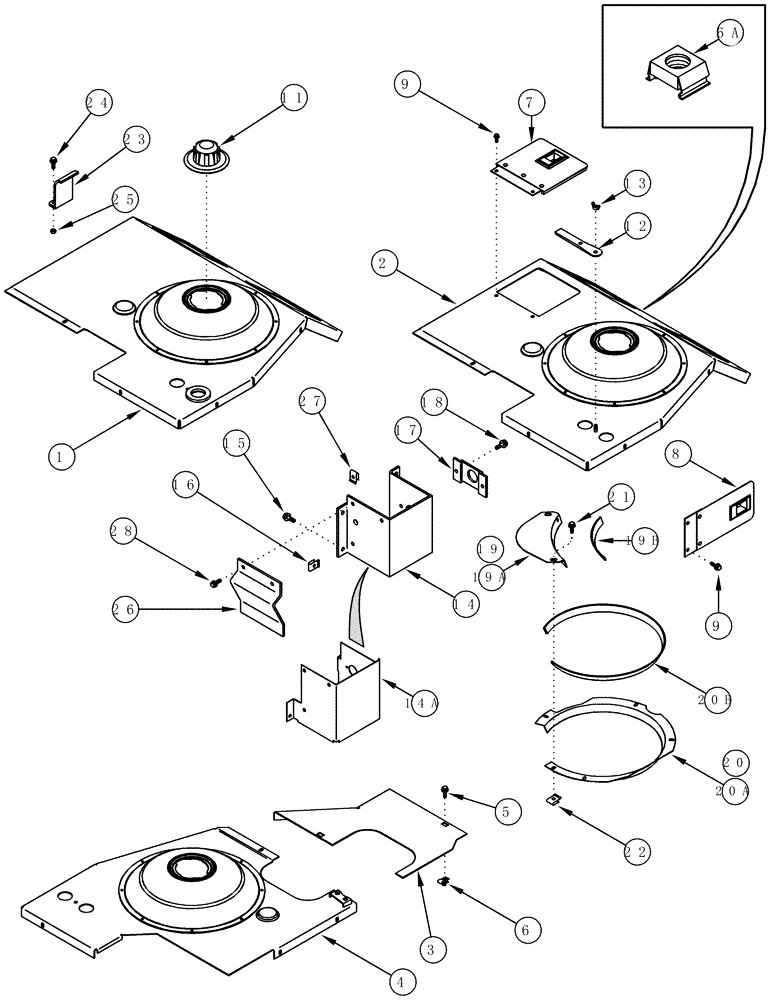

Запчасти Case IH CPX610 (09A-29) - COVERS (13) - PICKING SYSTEM

1

1982627C2

COVER ASSY

Front Upper, Right Hand

1шт.

See Figure 9A-30

1шт.

2

1982724C1

COVER ASSY

Front Upper, Right Hand, Drum Number 2, With Opening For Operator Presence System

1шт.

See Figure 9A-30

1шт.

3

1990261C2

COVER ASSY

Top, Center

1шт.

See Figure 9A-30

1шт.

4

1982764C2

COVER ASSY

Top, Rear

1шт.

See Figure 9A-30

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

20шт.

6

104329C1

NUT

1/4

16шт.

6a

673689R1

NUT

Cage

4шт.

7

1982665C2

COVER ASSY

Access, Large

1шт.

See Figure 9A-30

1шт.

8

1982669C2

COVER ASSY

Access, Small

2шт.

See Figure 9A-30

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

10шт.

11

1982787C2

PLUG

Rotor

2шт.

12

1982894C2

LOCKING PLATE

Doffer Adjustment

2шт.

13

129-409

WING NUT,1/4"-20

2шт.

14

1982729C2

CHANNEL

Tether Storage, Drum Number 2, Serial Range: -JJC0250100

1шт.

14a

430562A1

CHANNEL

Tether Storage, Drum Number 2, Start Serial: JJC0250100

1шт.

15

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

91795C1

SUPPORT

Transducer Mounting, Drum Number 2

1шт.

18

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

1шт.

19

1982858C1

COVER

Access, Picker Bar, Serial Range: -JJC0250100

2шт.

19a

433777A1

COVER

Access, Picker Bar, Inc. 19B, Start Serial: JJC0250100

2шт.

19b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

433775A1

RING

Rotor Guard, Left Hand, Inc. 20A, 20B, Start Serial: JJC0250100

1шт.

20a

1988726C1

RING

Rotor Guard, Left Hand

1шт.

20b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

433776A1

RING

Rotor Guard, Right Hand, Inc. 20A, 20B, Start Serial: JJC0250100

1шт.

20a

1988727C1

RING

Rotor Guard, Right Hand

1шт.

20b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

14шт.

22

104329C1

NUT

1/4

14шт.

23

1983176C2

BRACKET

Rotor Wrench, Drum Number 2

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

1982841C1

SUPPORT

Switch Panel, Drum Number 2

1шт.

27

104329C1

NUT

1/4

2шт.

28

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.
