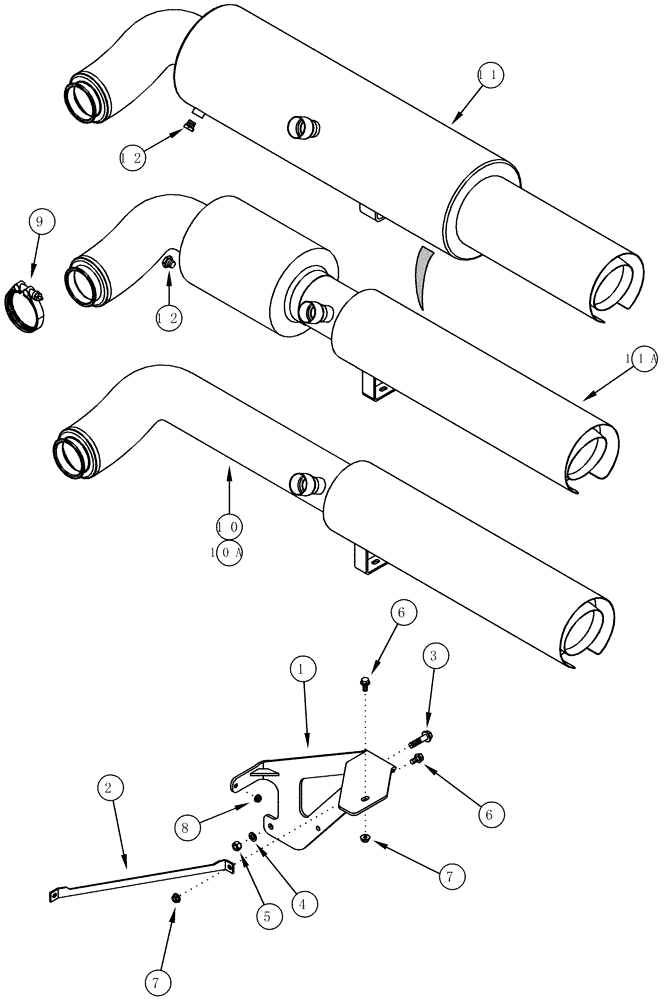

Запчасти Case IH CPX610 (02-07) - EXHAUST SYSTEM (01) - ENGINE

1

444606A2

SUPPORT

Muffler

1шт.

2

356510A2

BRACE

, Serial Range: -JJC0250199

1шт.

2

87421046

BRACE

, Start Serial: JJC0250200

1шт.

3

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

, Serial Range: -JJC0250199

1шт.

3

87025455

BOLT,Hex, 1/2" - 13 x 2", Gr 8

BOLT 1/2 x 2; 8, Start Serial: JJC0250200

1шт.

4

892-11012

LOCK WASHER,M12

, Serial Range: -JJC0250199

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

, Start Serial: JJC0250200

1шт.

5

829-1412

NUT,M12, Cl 10.9

, Serial Range: -JJC0250199

1шт.

5

429-108

NUT,1/2"-13, G8

1/2; 8, Start Serial: JJC0250200

1шт.

6

905-10020

BOLT,Hex Flg, M10 x 20mm

, Serial Range: -JJC0250199

2шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

, Start Serial: JJC0250200

2шт.

7

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

, Serial Range: -JJC0250199

2шт.

7

425-286

FLANGE NUT,Flg, 3/8"-16, G5

, Start Serial: JJC0250200

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

9

A170807

CLAMP,102mm ID

Includes Hardware

1шт.

10

412447A1

MUFFLER

Standard, Serial Range: -JJC0250100

1шт.

10a

412447A2

MUFFLER

Standard, Start Serial: JJC0250100

1шт.

11

282198A2

MUFFLER

Spark Arrester, Inc. 12, Optional With 412447A1, 412447A2, No Longer Available, Order 282198A3, Serial Range: -JJC0250100

1шт.

11a

282198A4

MUFFLER

Spark Arrester, Inc. 12, Optional With 412447A1, 412447A2, Start Serial: JJC0250100

1шт.

12

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.
