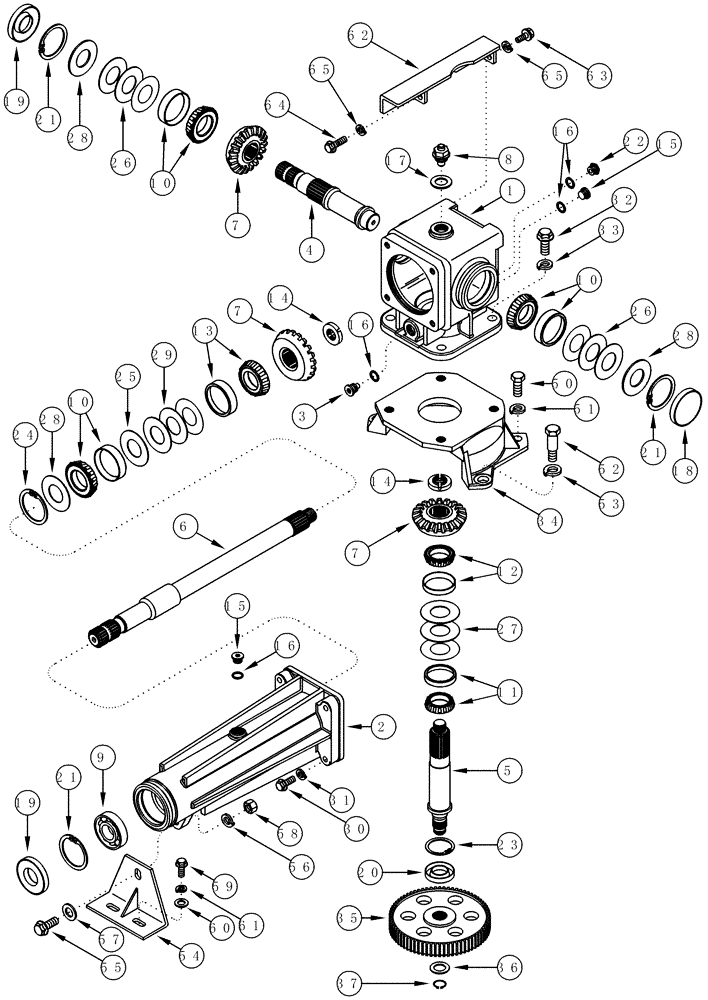

Запчасти Case IH CPX610 (09A-10) - GEARBOX - DRUM NUMBER 3 (13) - PICKING SYSTEM

451306A1

GEARBOX

Inc. 1 - 31

1шт.

1

375394A1

CASE ASSY.

1шт.

2

382211A1

SUPPORT

1шт.

3

375423A1

PLUG

M16

1шт.

4

375396A2

SHAFT

Output

1шт.

5

375400A2

SHAFT

Drum Drive

1шт.

6

382214A2

SHAFT

Input

1шт.

7

378141A2

GEAR SET

1шт.

8

378129A1

BREATHER

1шт.

9

906067R1

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

1шт.

10

906064R1

TAPERED BEARING,35 mm ID x 72 mm OD x 15 mm

3шт.

11

906065R1

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

12

906066R1

TAPERED BEARING,40 mm ID x 90 mm OD x 20 mm

1шт.

13

906079R1

TAPERED BEARING,35 mm ID x 80 mm OD x 18 mm

1шт.

14

375406A1

SLOTTED NUT

2шт.

15

375409A1

PLUG

M16

2шт.

16

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

17

933608R1

SEALING RING,M26 x 31 x 2

1шт.

18

375412A1

CAP

72 mm

1шт.

19

375414A1

SEAL,35mm ID x 72mm OD

2шт.

20

375415A1

SEAL,35mm ID x 68mm OD

1шт.

21

800-2172

SNAP RING

No. 72

3шт.

22

382834A1

SIGHTGLASS

1шт.

23

800-2168

SNAP RING,M68, Int

1шт.

24

800-6172

SNAP RING,M72, Int, Hvy

No. 72

1шт.

25

906080R1

SHIM,M72 ID x 80 OD x 2 Thk

72 x 80 x 2 mm

1шт.

26

906068R1

SHIM,M62 x 72mm OD x 0.1mm Thk

Shim, 0.10 mm (0.004 in)

1шт.

26

906069R1

SHIM,M62 x 72mm OD x 0.3mm Thk

Shim, 0.30 mm (0.012 in)

1шт.

26

906070R1

SHIM,M62 x 72mm OD x 0.5mm Thk

Shim, 0.50 mm (0.020 in)

1шт.

27

906076R1

SHIM,M80 ID x 90 OD x .1 Thk

0.10 mm (0.004 in)

1шт.

27

906077R1

SHIM,M80 ID x 90 OD x .3 Thk

0.30 mm (0.012 in)

1шт.

27

906078R1

SHIM,M80 ID x 90 OD x .5 Thk

0.50 mm (0.020 in)

1шт.

28

906072R1

SHIM,M62 ID x 72 OD x 2 Thk

2.0 mm

3шт.

29

906073R1

SHIM,M72 x 80mm OD x 0.5mm Thk

Shim, 0.50 mm (0.020 in)

1шт.

29

906074R1

SHIM,M72 x 80mm OD x 0.3mm Thk

Shim, 0.30 mm (0.012 in)

1шт.

29

906075R1

SHIM,M72 x 80mm OD x 0.1mm Thk

Shim, 0.10 mm (0.004 in)

1шт.

30

844-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 8.8

M12 x 55; 8.8

2шт.

31

892-11012

LOCK WASHER,M12

2шт.

32

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

4шт.

33

892-11012

LOCK WASHER,M12

4шт.

34

375563A1

SUPPORT

1шт.

35

375564A1

GEAR

1шт.

36

906071R1

SHIM,M25 ID x 35 OD x 2 Thk

25 x 35 x 2 mm

1шт.

37

800-5124

SNAP RING,M24, Ext

No. 24

1шт.

50

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

51

492-11062

BEARING WASHER,5/8"

2шт.

52

1982634C2

BOLT

5/8

2шт.

53

892-11020

LOCK WASHER,M20

2шт.

54

1990337C1

SUPPORT

1шт.

55

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

57

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

58

425-108

NUT,1/2" - 13, Gr 5

1шт.

59

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

60

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

61

492-11038

LOCK WASHER,3/8"

2шт.

62

404093A1

ANGLE

stop

1шт.

63

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

M12 x 25; 10.9

1шт.

64

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

1шт.

65

892-11012

LOCK WASHER,M12

2шт.

431635A1

PACKAGE

Gearbox, Inc. 1 - 61

1шт.
