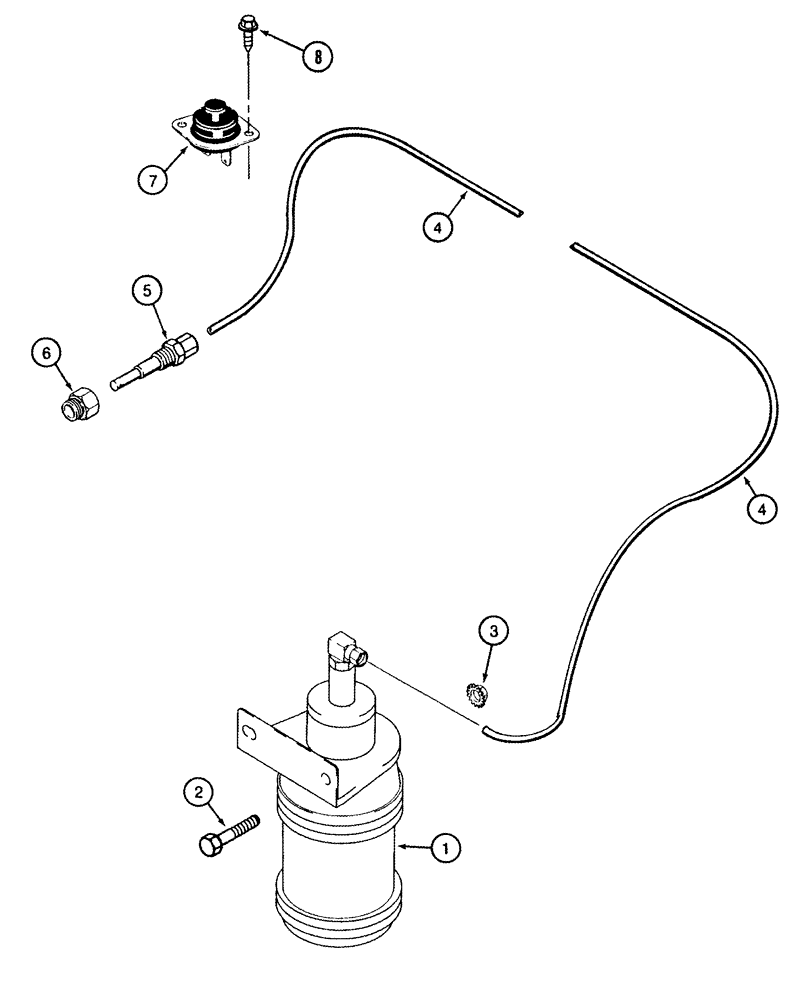

Запчасти Case IH CPX610 (02-06) - ETHER START SYSTEM (01) - ENGINE

442204A1

INSTRUCTION

ATTACHMENT, Ether Start, Inc. 1 - 8

1шт.

Order From Wholegoods Price List

1шт.

1

185552A2

SOLENOID

12V, Inc. 1A

1шт.

1a

190752A1

HOUSING

Not Illustrated

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

144264C1

TUBE,0.125" OD, 50" Length

1270 mm (50 in), Cut From 1954063CX

1шт.

5

A172900

NOZZLE CAP

Not Serviced Separately

1шт.

6

217-223

REDUCER,3/4"-14 NPTF x 1/8"-27 Fem NPTF

3/4 x 1/8 PT

1шт.

7

D67872

SWITCH

1шт.

8

281-5358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 1/2 in

2шт.
