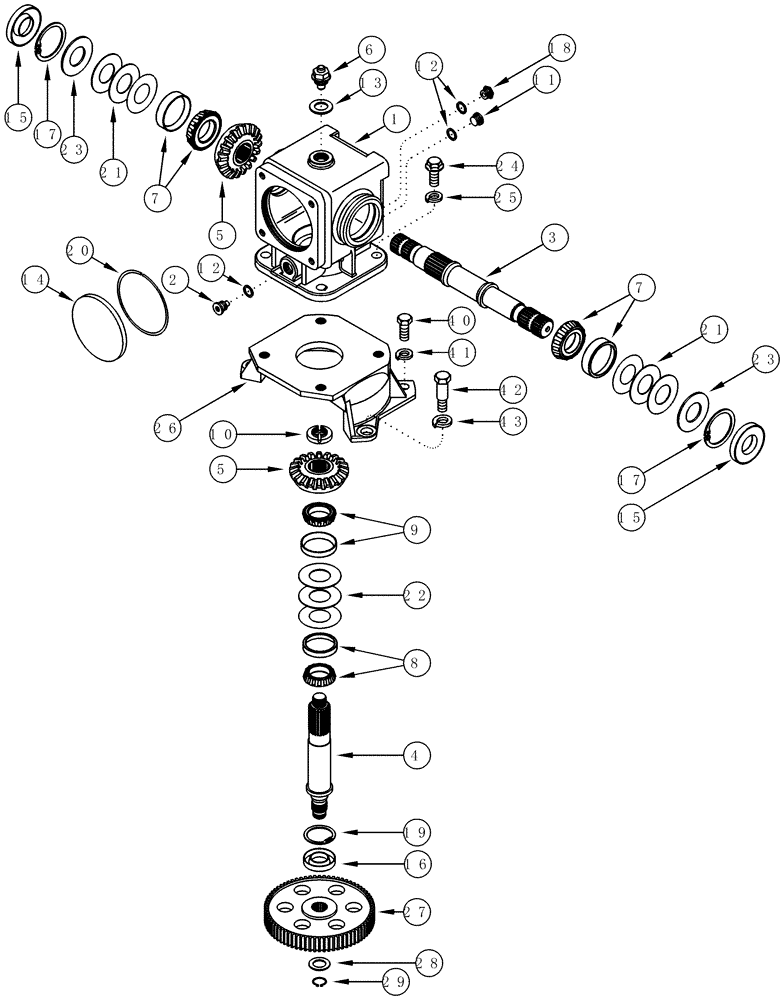

Запчасти Case IH CPX610 (09A-09) - GEARBOX - DRUM NUMBER 2 (13) - PICKING SYSTEM

451305A1

GEARBOX

Inc. 1 - 23

1шт.

1

375394A1

CASE ASSY.

1шт.

2

375423A1

PLUG

M16

1шт.

3

382212A2

SHAFT

Input

1шт.

4

375400A2

SHAFT

Drum Drive

1шт.

5

375401A2

GEAR SET

1шт.

6

378129A1

BREATHER

1шт.

7

906064R1

TAPERED BEARING,35 mm ID x 72 mm OD x 15 mm

1шт.

8

906065R1

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

9

906066R1

TAPERED BEARING,40 mm ID x 90 mm OD x 20 mm

1шт.

10

375406A1

SLOTTED NUT

1шт.

11

375409A1

PLUG

M16

1шт.

12

933155R1

SEALING RING,M16 x 20 x 1.5

3шт.

13

933608R1

SEALING RING,M26 x 31 x 2

1шт.

14

375413A1

CAP

120 mm

1шт.

15

375414A1

SEAL,35mm ID x 72mm OD

2шт.

16

375415A1

SEAL,35mm ID x 68mm OD

1шт.

17

800-2172

SNAP RING

No. 72

2шт.

18

382834A1

SIGHTGLASS

1шт.

19

800-2168

SNAP RING,M68, Int

1шт.

20

800-21120

SNAP RING,M120, Int

No. 120

1шт.

21

906068R1

SHIM,M62 x 72mm OD x 0.1mm Thk

Shim, 0.10 mm (0.004 in)

1шт.

21

906069R1

SHIM,M62 x 72mm OD x 0.3mm Thk

Shim, 0.30 mm (0.012 in)

1шт.

21

906070R1

SHIM,M62 x 72mm OD x 0.5mm Thk

Shim, 0.50 mm (0.020 in)

1шт.

22

906076R1

SHIM,M80 ID x 90 OD x .1 Thk

0.10 mm (0.004 in)

1шт.

22

906077R1

SHIM,M80 ID x 90 OD x .3 Thk

0.30 mm (0.012 in)

1шт.

22

906078R1

SHIM,M80 ID x 90 OD x .5 Thk

0.50 mm (0.020 in)

1шт.

23

906072R1

SHIM,M62 ID x 72 OD x 2 Thk

Shim, 2.0 mm

2шт.

24

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

4шт.

25

892-11012

LOCK WASHER,M12

4шт.

26

375563A1

SUPPORT

1шт.

27

375564A1

GEAR

1шт.

28

906071R1

SHIM,M25 ID x 35 OD x 2 Thk

25 x 35 x 2 mm

1шт.

29

800-5124

SNAP RING,M24, Ext

No. 24

1шт.

40

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

41

492-11062

BEARING WASHER,5/8"

2шт.

42

1982634C2

BOLT

5/8

2шт.

43

892-11020

LOCK WASHER,M20

2шт.

431634A1

PACKAGE

Gearbox, Inc. 1 - 43, Plus (2 ea) of 413-616, 495-11041, 492-1038

1шт.
