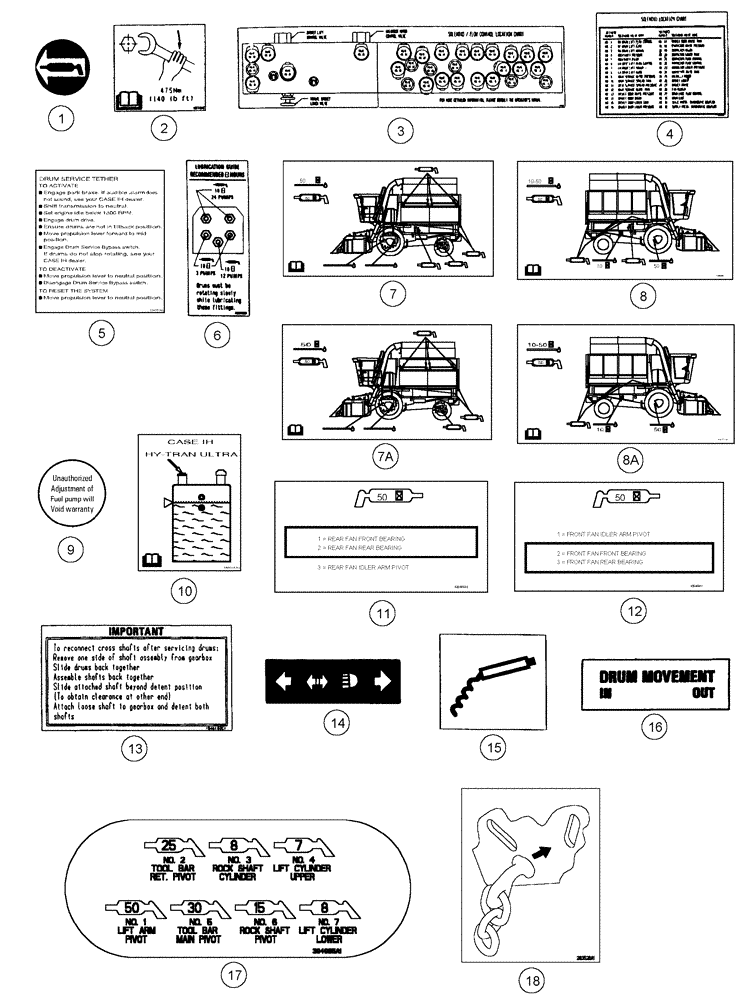

Запчасти Case IH CPX610 (09F-14) - DECALS - GENERAL INSTRUCTIONS (12) - CHASSIS

1

128490C1

DECAL

Grease Fitting Locator

10шт.

2

181917A2

DECAL

Wheel Bolt Torque, Models with Mud Hog

2шт.

3

1546129C1

DECAL

Solenoid/Flow Control Location Chart, English

1шт.

3

302623A1

DECAL

Solenoid/Flow Control Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

3

302353A1

DECAL

Solenoid/Flow Control Location Chart, Portuguese Language

1шт.

4

1546130C2

DECAL

Solenoid Location Chart, English

1шт.

4

109145A1

DECAL

Solenoid Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

4

302223A1

DECAL

Solenoid Location Chart, Portuguese Language

1шт.

5

194003A2

DECAL

Drum Service Tether, English

1шт.

5

254902A2

DECAL

Drum Service Tether, Spanish Language, European Models, Latin American Spanish

1шт.

5

302229A2

DECAL

Drum Service Tether, Portuguese Language

1шт.

6

1990032C2

DECAL

Drum Lubrication Guide, Recommended Hours, English, Serial Range: -JJC0250199

6шт.

6

1546225C1

DECAL

Drum Lubrication Guide, Recommended Hours, Spanish Language, European Models, Latin American Spanish

6шт.

6

302289A1

DECAL

Drum Lubrication Guide, Recommended Hours, Portuguese Language

6шт.

7

419896A1

DECAL

Lubrication Chart, Left Hand Chassis, Serial Range: -JJC0250199

1шт.

7a

87417846

DECAL

Lubrication Chart, Left Hand Chassis, Start Serial: JJC0250200

1шт.

8

419895A1

DECAL

Lubrication Chart, Right Hand Chassis, Serial Range: -JJC0250199

1шт.

8a

87417845

DECAL

Lubrication Chart, Right Hand Chassis, Start Serial: JJC0250200

1шт.

9

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

9

184669A1

DECAL

Warranty, Fuel Pump, Spanish Language, European Models, Latin American Spanish

1шт.

9

278583A1

DECAL

Warranty, Fuel Pump, Portuguese Language

1шт.

10

186936A3

DECAL

Hydraulic Oil Level

1шт.

11

430468A1

DECAL

Fan Lube Bank, Left Hand, Serial Range: -JJC0250199

1шт.

12

430469A1

DECAL

Fan Lube Bank, Right Hand, Serial Range: -JJC0250199

1шт.

13

1546103C1

DECAL

Cross Shaft Reconnect, English

6шт.

13

254991A1

DECAL

Cross Shaft Reconnect, Spanish Language, European Models, Latin American Spanish

6шт.

13

302227A1

DECAL

Cross Shaft Reconnect, Portuguese Language

1шт.

14

120332A1

DECAL

Directional Arrows

1шт.

15

186944A1

DECAL

Tether Location

1шт.

16

1982880C2

DECAL

English

1шт.

16

254990A1

DECAL

Spanish Language, European Models, Latin American Spanish

1шт.

16

302352A1

DECAL

Portuguese Language

1шт.

17

394985A1

DECAL

Lubrication, Serial Range: -JJC0249826

1шт.

18

283528A1

DECAL

T-Hook

6шт.
