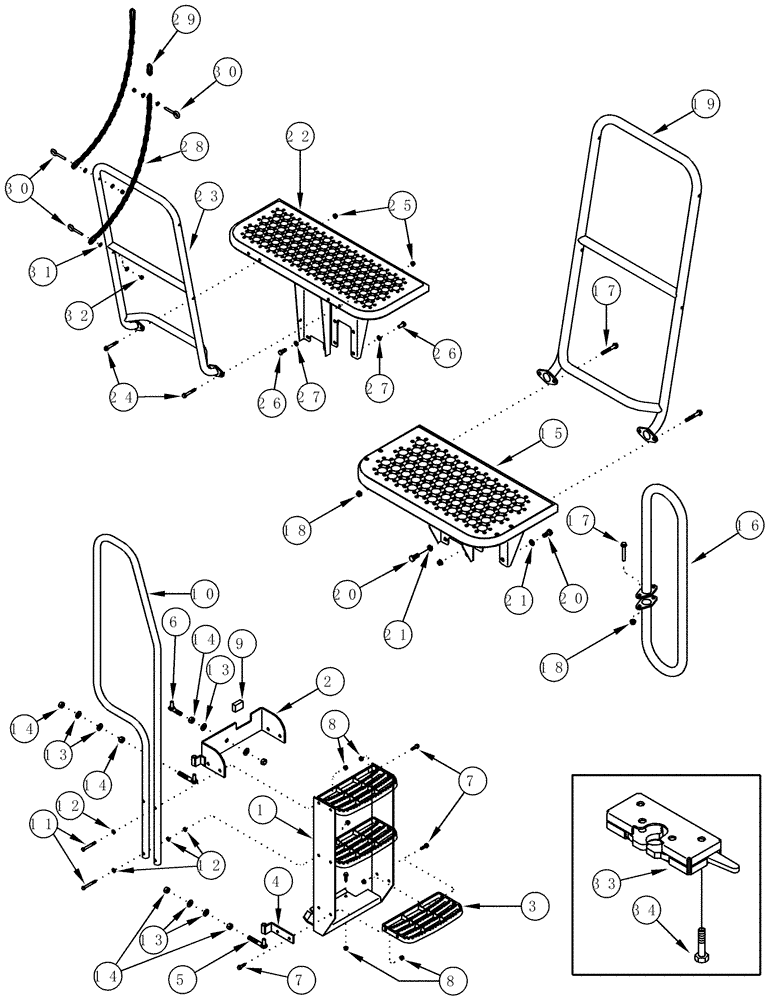

Запчасти Case IH CPX610 (09F-11) - DRUM LADDER, DRUM NUMBERS 1 AND 2 STEP ASSEMBLIES - ASN JJC0250100 (12) - CHASSIS

NSS

NOT SOLD SEPARAT

Ladder Assy, Cotton Drum, Inc. 1-14

1шт.

1

437571A1

SUPPORT

Ladder Base

1шт.

2

437572A1

SUPPORT

Ladder, Upper

1шт.

3

257375A1

STEP

3шт.

4

437573A1

HINGE

Drum Ladder

1шт.

5

437580A1

PIVOT PIN

100 mm (3-15/16 in)

2шт.

6

437581A1

PIVOT PIN

60 mm (2-3/8 in)

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

9шт.

8

231-5146

FLANGE NUT,3/8"-16

13шт.

9

187884C1

SEALING STRIP,50mm L

51 mm (2 in), Cut From : 187885C1

1шт.

10

437579A1

HANDRAIL

Drum Ladder, Front

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

12

495-81129

WASHER,13/32" x 3/4" x .120"

13/32 x 3/4 x 7/64

8шт.

13

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

6шт.

14

425-1010

NUT,5/8"-11, G5

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1, Inc. 15 - 21

1шт.

15

445284A3

STEP

1шт.

16

445285A1

GRAB RAIL

1шт.

17

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

3/8 x 2-1/2

6шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

19

445286A1

GRAB RAIL

With Step

1шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

21

892-11012

LOCK WASHER,M12

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 2, Inc. 22 - 32

1шт.

22

445283A2

STEP

1шт.

23

445286A1

GRAB RAIL

With Step

1шт.

24

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

3/8 x 2-1/2

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

27

892-11012

LOCK WASHER,M12

6шт.

28

449891A1

CHAIN

2шт.

29

326376A2

LINK

Ladder Chain

18шт.

30

449894A1

EYEBOLT

4шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

8шт.

32

231-4215

LOCK NUT,5/16"-18, GB

4шт.

33

141224A1

LATCH

1шт.

34

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.
