(09F-10) - ACCESS STEP, HANDRAILS AND TREADS WITH DUAL WHEELS - BSN JJC0250100

Запчасти Case IH CPX610 (09F-10) - ACCESS STEP, HANDRAILS AND TREADS WITH DUAL WHEELS - BSN JJC0250100 (12) - CHASSIS

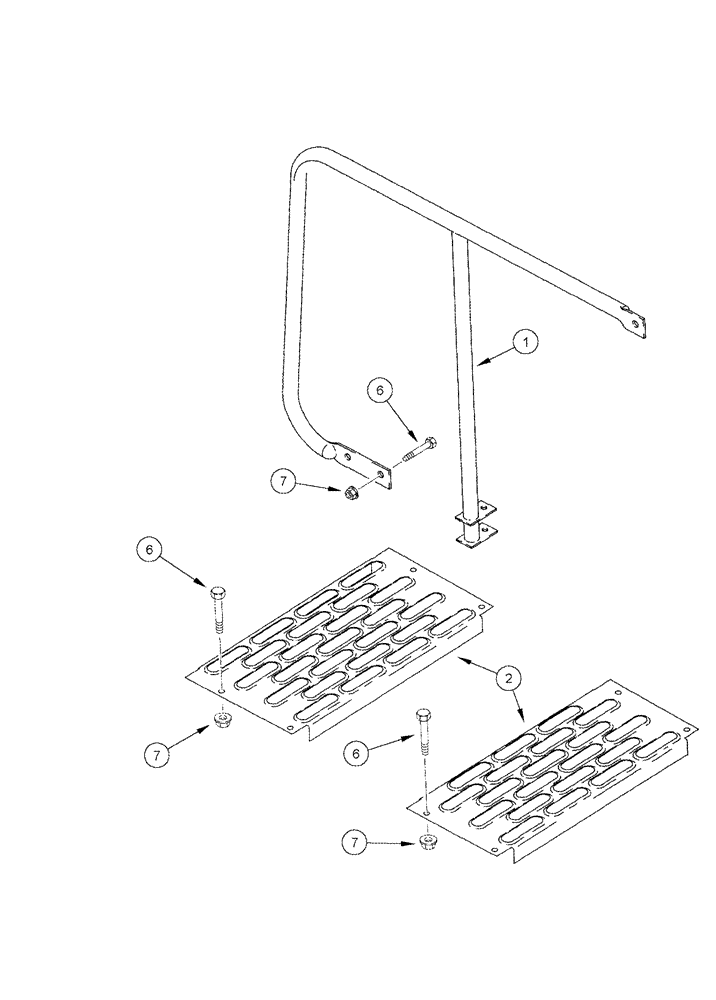

Схема запчастей Case IH CPX610 - (09F-10) - ACCESS STEP, HANDRAILS AND TREADS WITH DUAL WHEELS - BSN JJC0250100 (12) - CHASSIS
7
7
6
7
6
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

113042A1

HANDRAIL

Access

1шт.

2

1546431C1

STEP

Access

2шт.

6

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

12шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.
