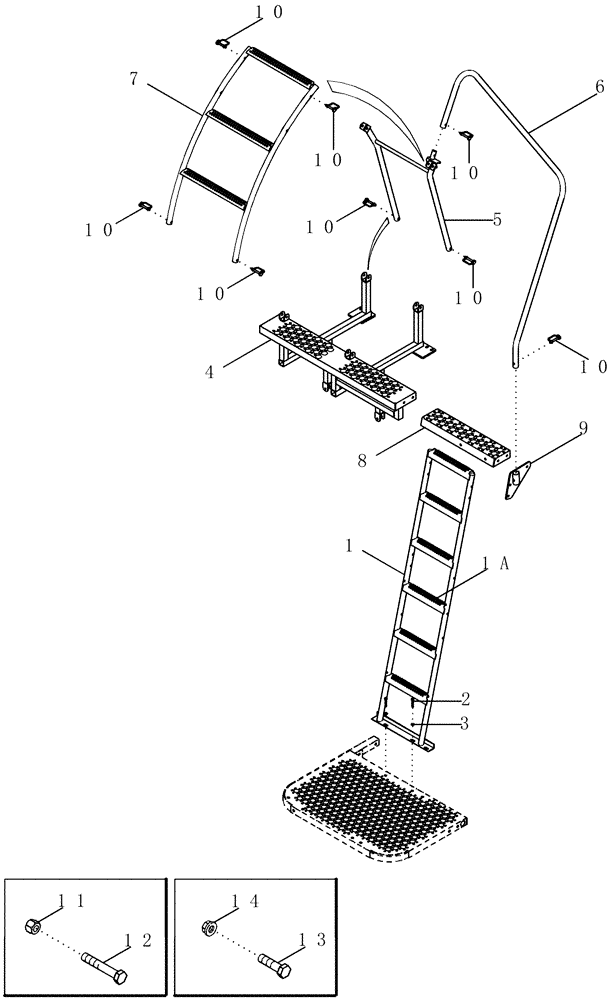

Запчасти Case IH CPX610 (09F-08) - STEPS LADDERS - BASKET LID (12) - CHASSIS

1

176339A3

LADDER

Basket, Serial Range: -JJC0250100

1шт.

1

444246A2

LADDER

Basket, Inc. 1A, Start Serial: JJC0250100

1шт.

1a

176342A2

TREAD

6шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

4

257158A4

STEP

Basket Lid

1шт.

5

282466A2

SUPPORT

Ladder, Basket Lid, Serial Range: -JJC0250199

1шт.

5

87416424

SUPPORT

Ladder, Basket Lid, Start Serial: JJC0250200

1шт.

6

431511A1

TUBE

Handrail, Basket, Serial Range: -JJC0250199

1шт.

6

87416426

TUBE

Handrail, Basket, Start Serial: JJC0250200

1шт.

7

282465A4

LADDER

Basket Lid

1шт.

8

257159A1

STEP

Basket Lid, Extension

1шт.

9

394224A2

BRACKET

Ladder Support

1шт.

10

432959A1

LOCK PIN

4шт.

11

231-4116

NUT,3/8"-16, GB

3/8

6шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

14

231-5146

FLANGE NUT,3/8"-16

8шт.
