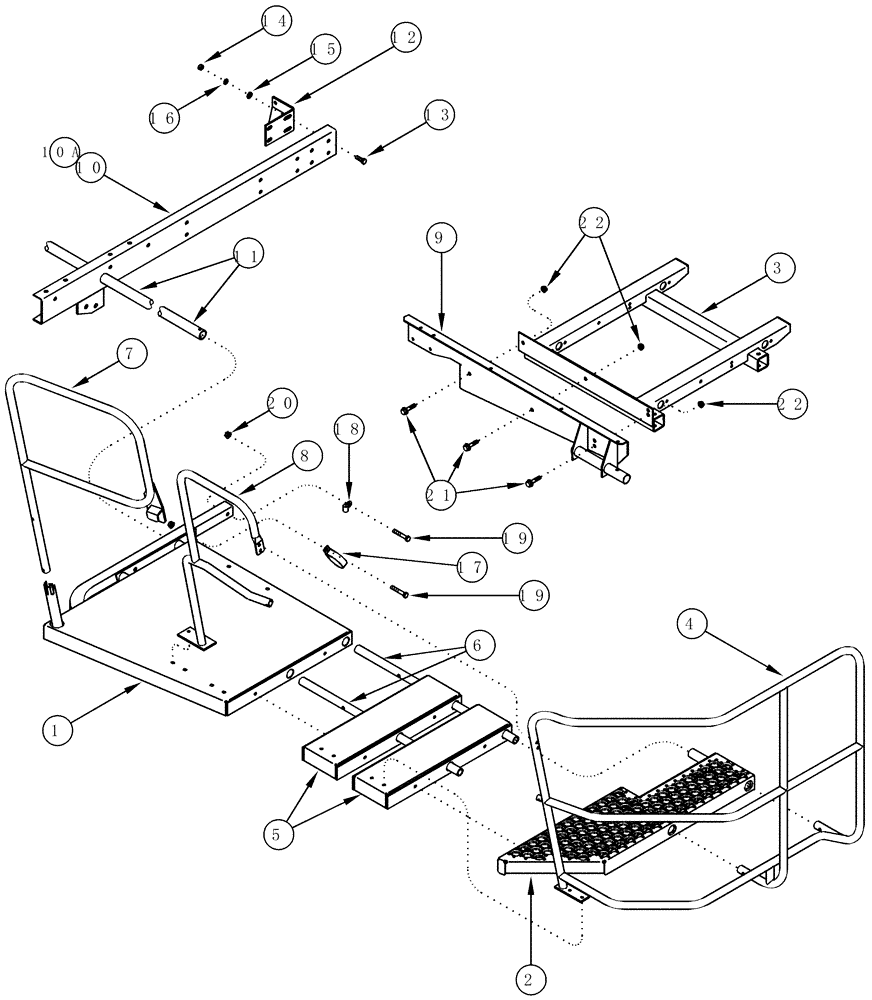

Запчасти Case IH CPX610 (09F-07) - PLATFORM AND HANDRAILS - BSN JJC0250100 (12) - CHASSIS

1

130646A5

PLATFORM ASSY.

Cab, Left Hand Inner

1шт.

2

130657A2

PLATFORM

Cab, Left Hand Outer

1шт.

3

1545968C4

SUPPORT

Ladder

1шт.

4

131141A5

HANDRAIL

Cab Platform, Outer

1шт.

5

130650A2

PLATFORM ASSY.

Extension, Left Hand Inner

2шт.

6

223558A1

TUBE,1.312" OD

Platform Extension, Left Hand

2шт.

7

258801A1

TUBE,667, 297 mm Length

Handrail

1шт.

8

327075A1

TUBE

Handrail, Cab Platform

1шт.

9

177911A3

HANDRAIL

Left Hand Front

1шт.

10

139132A3

CHANNEL

Left Hand

1шт.

10a

139135A3

CHANNEL

Right Hand, Not Illustrated

1шт.

11

144660A1

TUBE,33.34 mm OD, 2470 mm Length

Cab Platform, Left Hand Inner

1шт.

12

86867C2

BRACKET

2шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

12шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

8шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

17

240450A2

CLAMP

3 in dia

1шт.

18

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4; 5

3шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

21

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.
