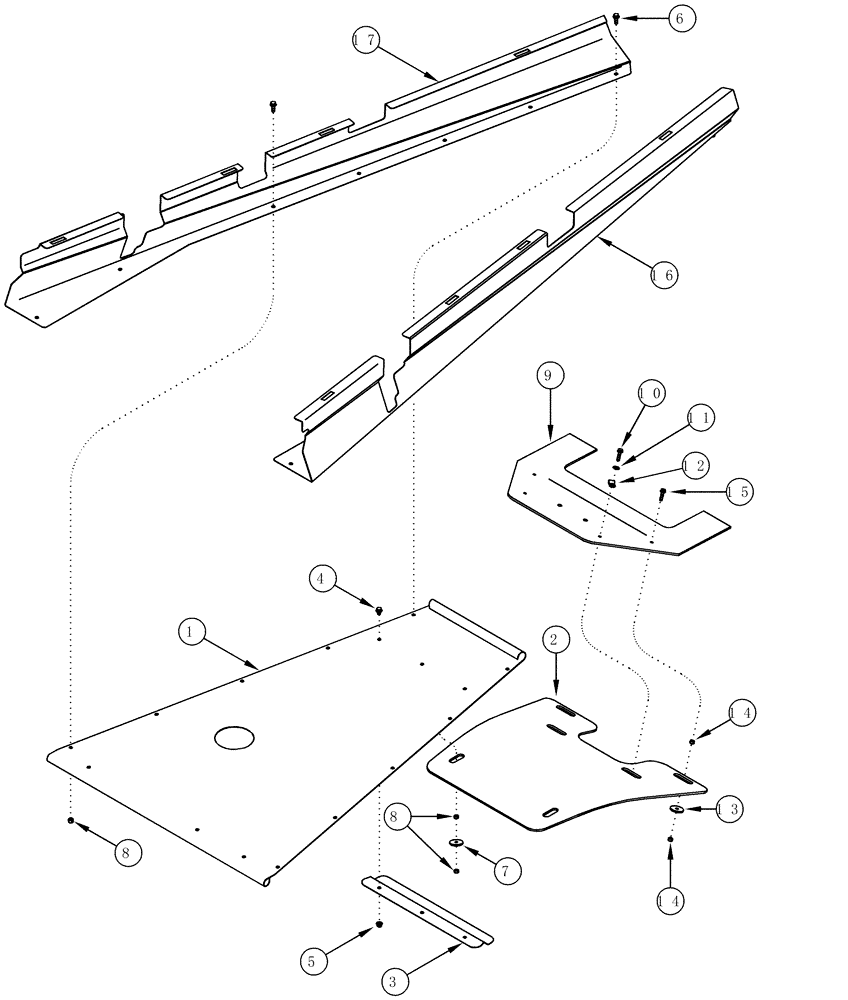

Запчасти Case IH CPX610 (09F-05) - PLANT TUNNEL - TRASH SHIELD (12) - CHASSIS

1

181670A4

PLATE

Belly Pan Bottom

1шт.

2

448454A1

PLATE

1шт.

3

451502A1

SHIELD

Deflector

1шт.

4

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

3шт.

5

231-5146

FLANGE NUT,3/8"-16

3шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

7

495-81145

WASHER,13/32" x 1 3/4" x .120"

2шт.

8

231-4116

NUT,3/8"-16, GB

3/8

4шт.

9

REF

INSTRUCTION

Axle Assembly, Power Guide Valve Mount

1шт.

See Figure 05-06

1шт.

10

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

12

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

13

495-81123

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

11/32 x 1-3/4 x 3/16

4шт.

14

231-4115

NUT,5/16"-18, GB

8шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

16

300877A1

SHIELD

Plant Guard, Left Hand Side

1шт.

17

300878A1

SHIELD

Plant Guard, Right Hand Side

1шт.
