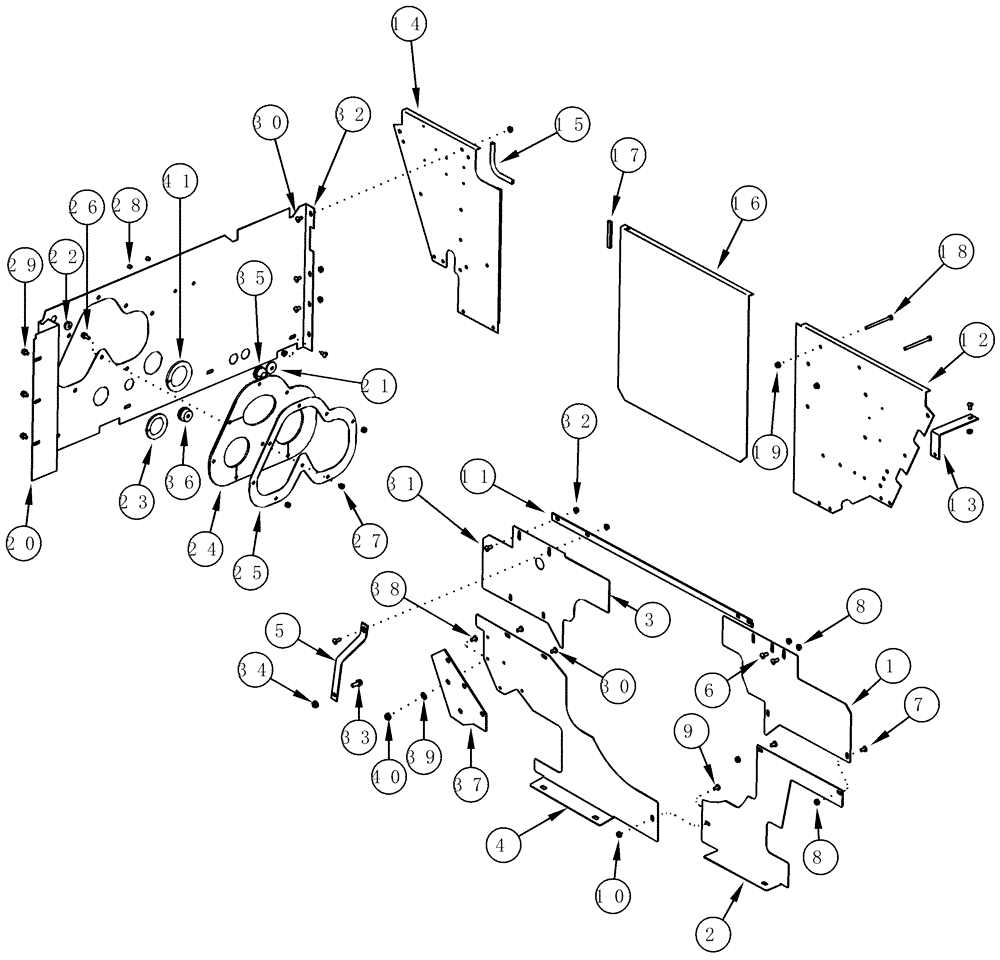

Запчасти Case IH CPX610 (09F-01) - FRONT DECK - SHIELDS, ENGINE AND RADIATOR (12) - CHASSIS

1

407925A1

SHIELD

Trash, Right Hand Front, Upper

1шт.

2

407926A1

SHIELD

Trash, Right Hand front, Lower

1шт.

3

334915A2

SHIELD

Trash, Left Hand Front, Upper

1шт.

4

334916A2

SHIELD

Trash, Left Hand Front, Lower

1шт.

5

416429A1

STRAP

Left Hand

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

1982302C4

SUPPORT

1шт.

12

352509A2

PANEL ASSY.

Right Hand, Serial Range: -JJC0250199

1шт.

12

87416020

PANEL ASSY.

Right Hand, Start Serial: JJC0250200

1шт.

13

1982345C2

SUPPORT

Right Hand, Serial Range: -JJC0250200

1шт.

13

1982345C3

STRAP

Right Hand, Start Serial: JJC0250200

1шт.

14

352510A1

PANEL ASSY.

Left Hand, Serial Range: -JJC0250199

1шт.

14

87416019

PANEL ASSY.

Left Hand, Start Serial: JJC0250200

1шт.

15

1982349C3

GASKET

183 mm (7-1/4 in), Cut From 1977224CX

1шт.

16

131623A1

SHEET

Center

1шт.

17

195510A1

PROTECTION STRIP

91 mm (3-5/8 in), Cut From 1977224CX

1шт.

18

113-197

BOLT,Hex, 5/16" - 18 x 4", Gr 2, Full Thd

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

302824A1

COVER

Engine Compartment, Left Hand

1шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID, Serial Range: -JJC0250200

2шт.

21

1321767C1

GROMMET

3/8 ID, Start Serial: JJC0250200

1шт.

22

248-2368

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

1шт.

23

1982349C3

GASKET

183 mm (7-1/4 in), Cut From 1977224CX

1шт.

24

302826A2

RUBBER SEAL

1шт.

25

334741A1

SEALING RING

SEALRING

1шт.

26

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20, Serial Range: -JJC0250200

8шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0250200

8шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

, Serial Range: -JJC0250200

8шт.

27

231-1445

NUT,5/16"-18, GB

, Start Serial: JJC0250200

8шт.

28

353-402

PLUG,Dome, .375" hole, Nylon

, Serial Range: -JJC0250200

2шт.

28

205-80

HOLE PLUG BUTTON,11/32"

11/32, Start Serial: JJC0250200

2шт.

29

905-8012

BOLT,Hex Flg, M8 x 12mm

, Serial Range: -JJC0250200

3шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

, Start Serial: JJC0250200

3шт.

30

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

1шт.

31

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

M8 x 20, 10.9

1шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

33

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.

34

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

35

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

36

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID

1шт.

37

87426313

RUBBER

Flap, Trash Shield

1шт.

38

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4; 5

5шт.

39

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

17/64 x 3/4 x 1/16

5шт.

40

231-1444

NUT,1/4"-20, GB

5шт.

41

1345190C1

ORNAMENTAL STRIP

1шт.
