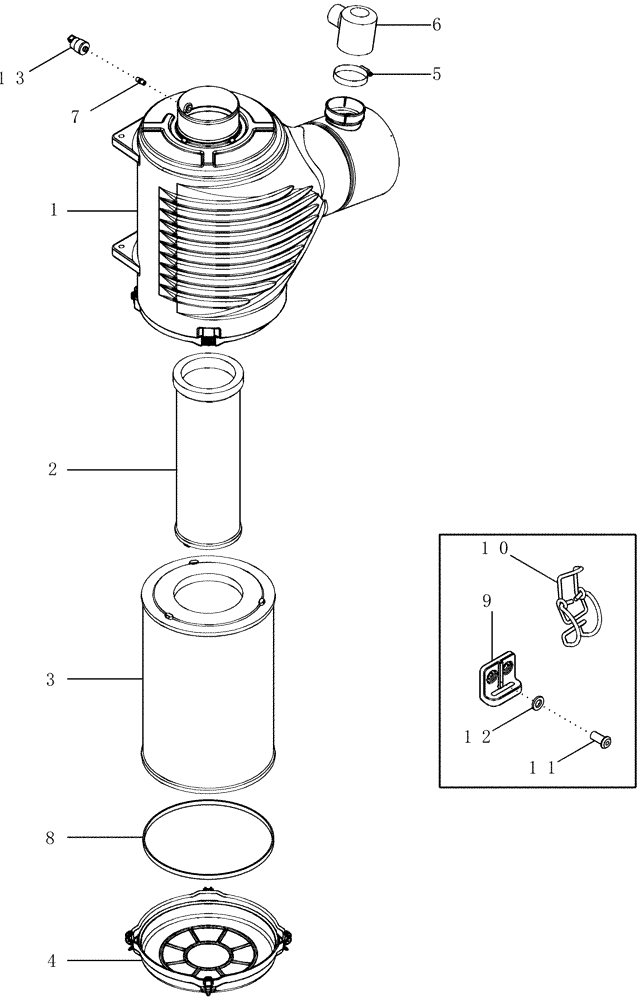

Запчасти Case IH CPX610 (02-04) - AIR CLEANER ASSEMBLY - BSN JJC0250200 (01) - ENGINE

243966A3

AIR CLEANER

Inc. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

243969A1

ELEMENT

Safety

1шт.

3

243968A1

ELEMENT

Primary

1шт.

4

87414982

COVER

Filter, End, Includes 8 - 12

1шт.

5

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

6

249788A1

VALVE

1шт.

7

D36264

FITTING

1шт.

8

87414805

GASKET,336.8mm ID x 347.4mm OD x 11mm Thk

1шт.

371266A1

LATCH

Includes 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

CATCH

1шт.

10

NSS

NOT SOLD SEPARAT

LATCH ASSY

1шт.

11

NSS

NOT SOLD SEPARAT

RIVET

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER

2шт.

13

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.
