Запчасти Case IH CPX610 (09E-19) - HEATER / AIR CONDITIONING - RECEIVER-DRYER SYSTEM (10) - CAB & AIR CONDITIONING

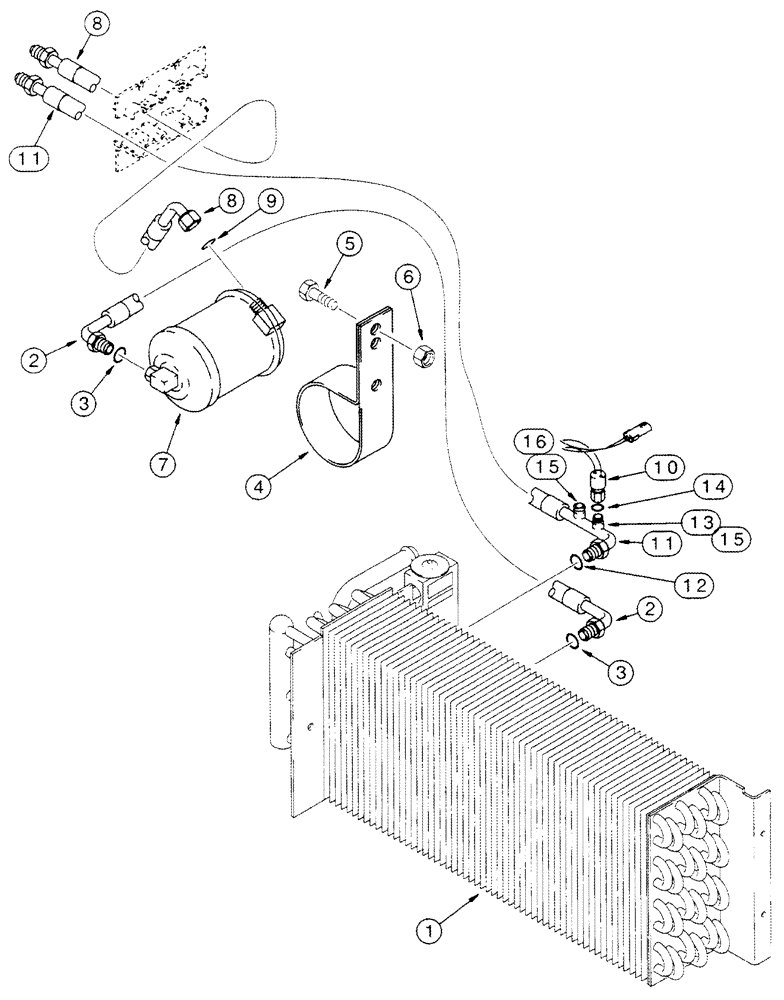

Схема запчастей Case IH CPX610 - (09E-19) - HEATER / AIR CONDITIONING - RECEIVER-DRYER SYSTEM (10) - CAB & AIR CONDITIONING
13
4
7
3
12
15
8
15
11
6
14
10
2
11
5
16
1
8
2
3
9

Артикул

Название

Примечание

Количество

1

121590A3

EVAPORATOR

1шт.

See Figure 9E-16

1шт.

2

124912A2

HOSE

540 mm (21-1/4 in), Inc. 3

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

4

D145289

SUPPORT

1шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

6

829-1412

NUT,M12, Cl 10.9

2шт.

7

1990758C2

RECEIVER-DRYER

1шт.

8

124914A1

HOSE

662 mm (26-1/8 in), Inc. 9

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

10

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

11

124913A2

HOSE

900 mm (35-7/16 in), Inc. 12 - 16

1шт.

12

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

13

NSS

NOT SOLD SEPARAT

M10 x 35, Fitting, Special

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

15

1250594C2

CORE

1шт.

16

122553A1

CAP

Sealing

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID, Not Shown

1шт.

Выбрано товаров: 18
