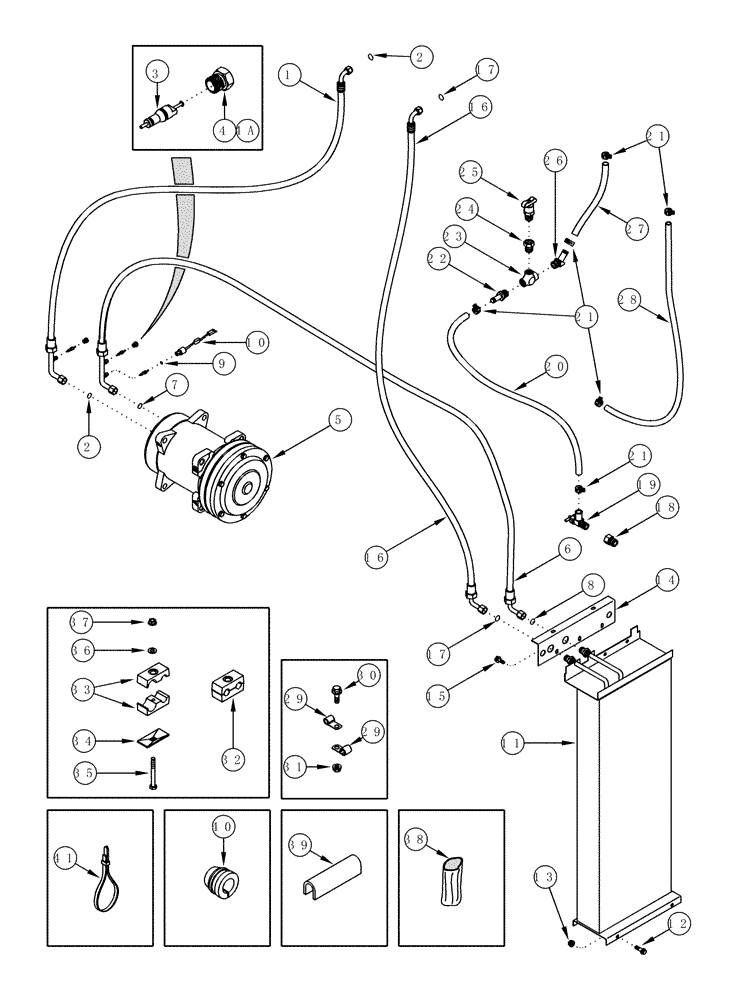

Запчасти Case IH CPX610 (09E-18) - HEATER / AIR CONDITIONING - CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301269A1

HOSE

5350 mm (210-5/8 in), Inc. 10 - 11

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

3

1250594C2

CORE

Valve

1шт.

4

122553A1

CAP

Sealing

1шт.

4a

122554A1

CAP

Sealing

1шт.

5

1999755C3

COMPRESSOR

Air Conditioning

1шт.

See Figure 9E-20

1шт.

5

86993462R

REMAN-COMPRESSOR

CPX610; Reman For New P/N 1999755C3

1шт.

5

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

5

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

5

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

5

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

5

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

6

301267A1

HOSE

3780 mm (148-13/16 in), Inc. 3, 4A, 7, 8

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

10

232948A1

SWITCH, A/C HIGH PRE

1шт.

11

321103A2

CONDENSER

Air Conditioning, Fuel Cooler

1шт.

12

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

13

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

14

315039A3

BRACKET

1шт.

15

905-8012

BOLT,Hex Flg, M8 x 12mm

3шт.

16

301265A1

HOSE

8300 mm (326-3/4 in), Inc. 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

18

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

19

301803R1

SHUT-OFF VALVE

Heater

1шт.

20

410532A1

HEATER HOSE,15.50 mm ID x 3556mm L

Cut From 97252CX, Engine To Tee

1шт.

21

1954736C1

HOSE CLAMP,#24

6шт.

22

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

23

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

3/4 fem PT

1шт.

24

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

3/4 PT x 1/4 fem

1шт.

25

86982771

VALVE

Drain, 1/4 PT

1шт.

26

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

27

419451A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

Cut From 97252CX, Tee To Cab

1шт.

28

410533A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

Cut From 97252CX, Heater Return

1шт.

29

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

2шт.

30

905-8016

BOLT,Hex Flg, M8 x 16mm

, Serial Range: -JJC0250199

1шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0250200

1шт.

31

825-5148

SERRATED NUT,M8, Flg Ser

, Serial Range: -JJC0250199

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0250200

1шт.

32

1546027C1

CLAMP

Tube, Serial Range: -JJC0250199

3шт.

32

1546026C1

CLAMP

, Start Serial: JJC0250200

3шт.

33

124668A1

CLAMP

3шт.

34

1347127C1

PLATE

3шт.

35

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 x 4; 5

3шт.

36

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16; 5

1шт.

38

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38 in), Cordura Hose, Use On Air Conditioning and Heater Hoses

2шт.

39

1327979C1

MOLDING

152 mm (6 in), Cut From 196707C1

1шт.

40

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

2шт.

40

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
