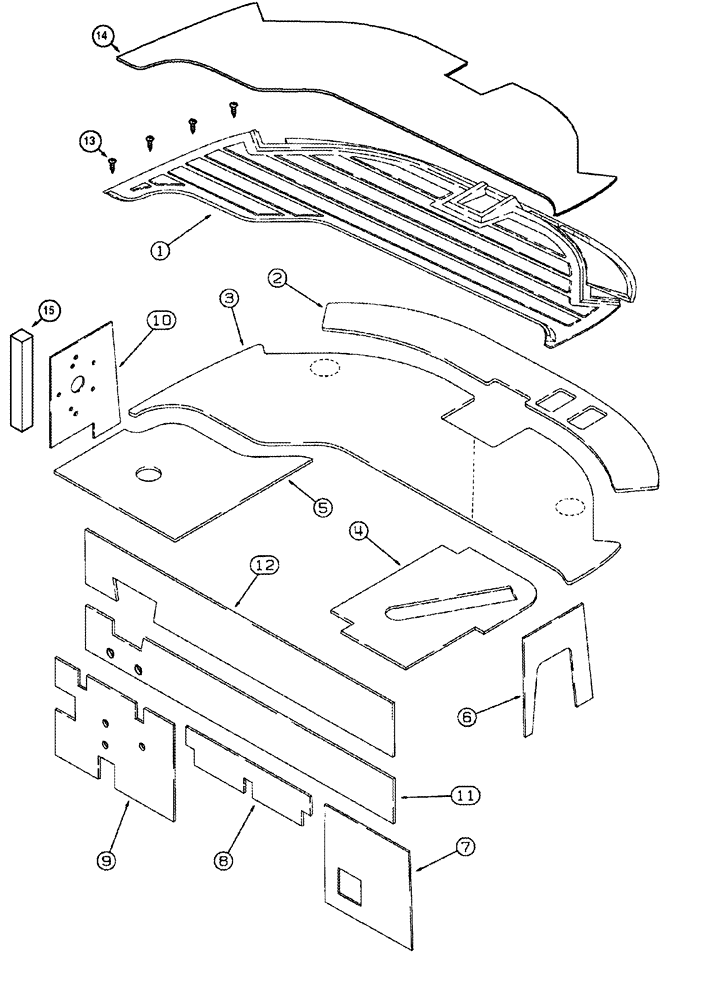

Запчасти Case IH CPX610 (09E-05) - CAB FLOOR MAT AND INSULATION (10) - CAB & AIR CONDITIONING

1

331728A1

FLOOR MAT

Cab

1шт.

2

136485A1

MAT

Foor, Front

1шт.

3

136484A1

MAT

Floor

1шт.

4

125038A1

FOAM INSULATION

Floor, RH Rear

1шт.

5

125037A2

FOAM INSULATION

Floor, LH Rear

1шт.

6

247007A1

FOAM INSULATION

Lower RH

1шт.

7

125040A2

FOAM INSULATION

Lower RH Rear

1шт.

8

119486A1

FOAM INSULATION

Lower Rear Centre

1шт.

9

125041A3

FOAM INSULATION

Lower LH Rear

1шт.

10

125042A2

GASKET,6.4mm Thk

Pressurized Blower

1шт.

11

137944A2

FOAM INSULATION

Center Rear

1шт.

12

137945A1

FOAM INSULATION

Upper Rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

No. 10 x 1, If Used

4шт.

14

182658A1

PROTECTOR,Cardboard

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

2шт.
