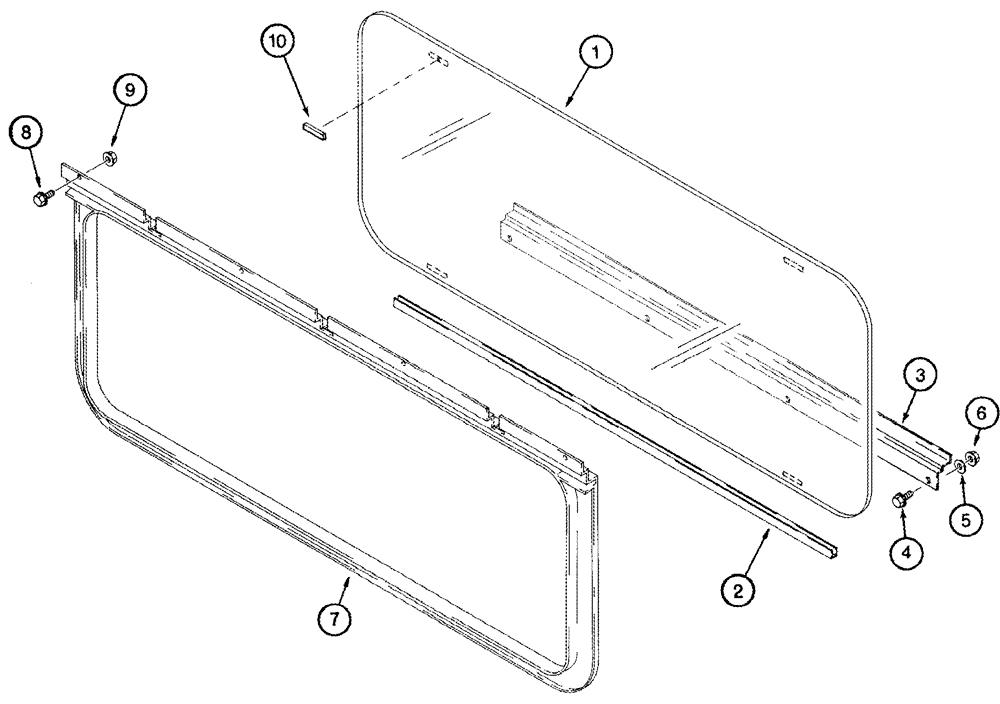

Запчасти Case IH CPX610 (09E-04) - CAB REAR WINDOW (10) - CAB & AIR CONDITIONING

1

117725A2

GLASS,CAB

Rear Window

1шт.

2

118185A1

PROTECTOR

Trim, 1000 mm (39-3/8 in), Cut From 2-6789T1

1шт.

3

117726A1

SUPPORT

Window Frame

1шт.

4

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

6шт.

5

495-31022

WASHER,#10

6шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

7

122722A2

FILLING STRIP

Rear Window

1шт.

8

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

16шт.

9

492-11010

LOCK WASHER,#10

16шт.

10

97268C1

SPACER

If Used

4шт.
