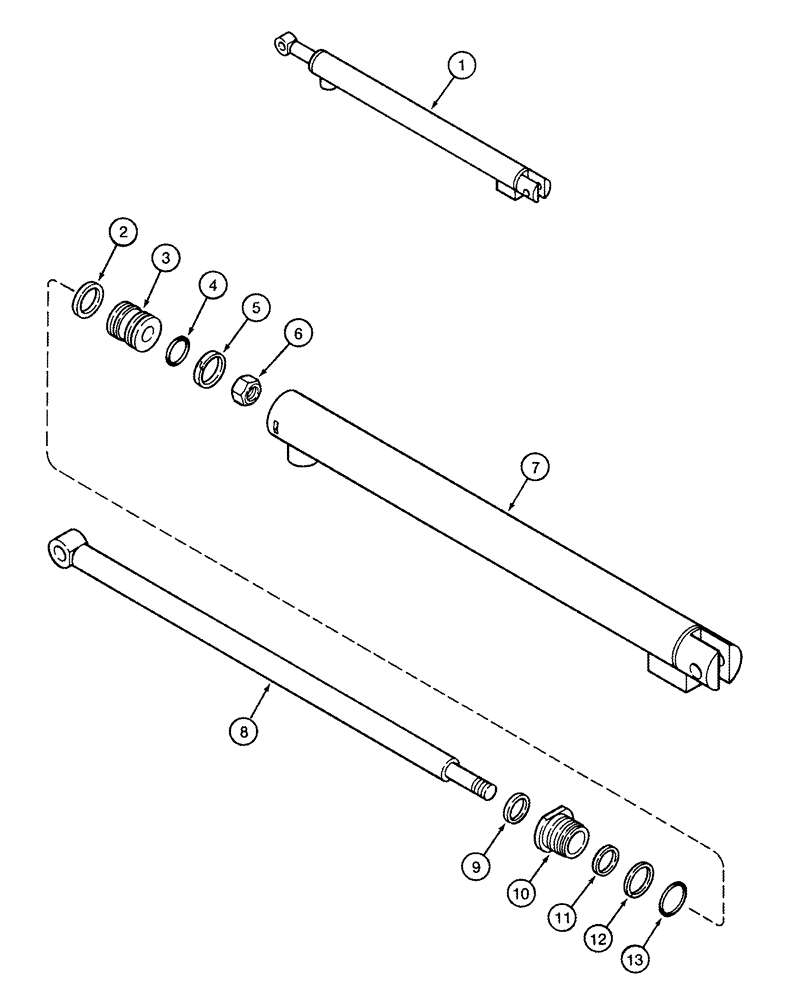

Запчасти Case IH CPX610 (08-38) - BASKET COMPACTOR CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

38 ID x 501 mm strk, Basket Compactor, Inc. 2 - 14

2шт.

2

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

92608C1

PISTON

Cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

387426A1

NUT

5/8 NF

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

8

1285720C1

ROD

1шт.

9

532773R1

WIPER SEAL

Piston Rod

1шт.

10

1343723C1

GLAND

1шт.

11

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

RING, Backup

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 ID x 3/32

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE, Retaining, Not Illustrated

1шт.

92611C3

SEAL KIT

Inc. 2, 4, 5, 9, 11 - 14

1шт.
