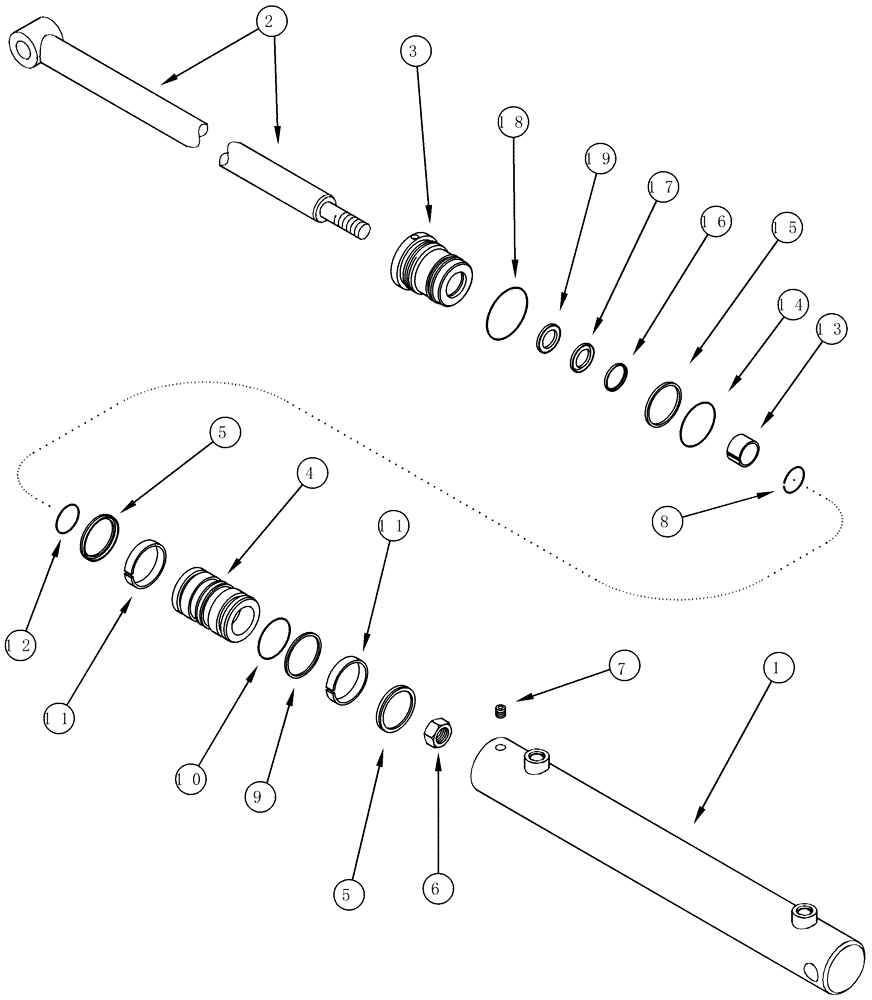

Запчасти Case IH CPX610 (08-36) - BASKET DOOR CYLINDER - BSN JJC0250100 (07) - HYDRAULICS

257388A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 892.1mm Stroke

Basket Door, Inc. 1 - 19

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

2

412326A1

PISTON ROD

Cylinder

1шт.

3

412327A1

GLAND

1шт.

4

412328A1

PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

RING, Piston

2шт.

6

232-46112

LOCK NUT,3/4"-16, GC

1шт.

7

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4

1шт.

8

102-23175

SNAP RING,#175, Int, Spiral

No. 175

1шт.

437372A1

SEAL KIT

Seal Replacement, Inc. 9 - 19

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

10

NSS

NOT SOLD SEPARAT

EXPANDER

1шт.

11

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

133877A1

RING

Wear

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER, Backup

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

CUP

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER

1шт.
