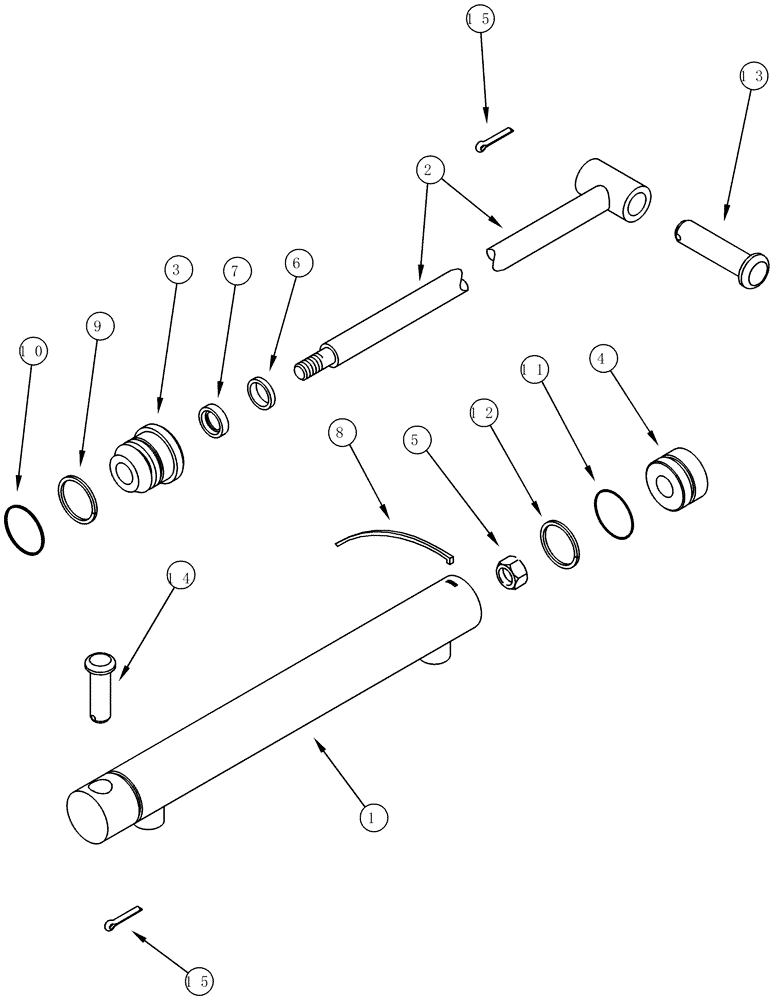

Запчасти Case IH CPX610 (08-32) - DRUM SPREAD CYLINDER ASSEMBLY - BSN JFG010501 (07) - HYDRAULICS

1542544C1

CYLINDER ASSY.

57 ID x 375 mm strk, Drum Spread, Inc. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

1282222C1

PISTON ROD

1шт.

3

127919C1

GLAND

1шт.

4

1543363C1

PISTON

Cylinder

1шт.

5

231-41310

LOCK NUT,5/8"-11, GB

5/8

1шт.

1543362C1

SEAL KIT

Inc. 6 - 12

1шт.

6

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

1шт.

7

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

Rod

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE, Retaining

1шт.

9

127933C1

BACK-UP RING

1-29/32 ID x 11/64, Backup

1шт.

10

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

11

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

12

127931C2

RING

Backup

1шт.

13

439-11664

HEADED PIN,1" x 4"

1 x 4; 2

2шт.

14

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

1 x 3-1/2; 2

2шт.

15

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.
