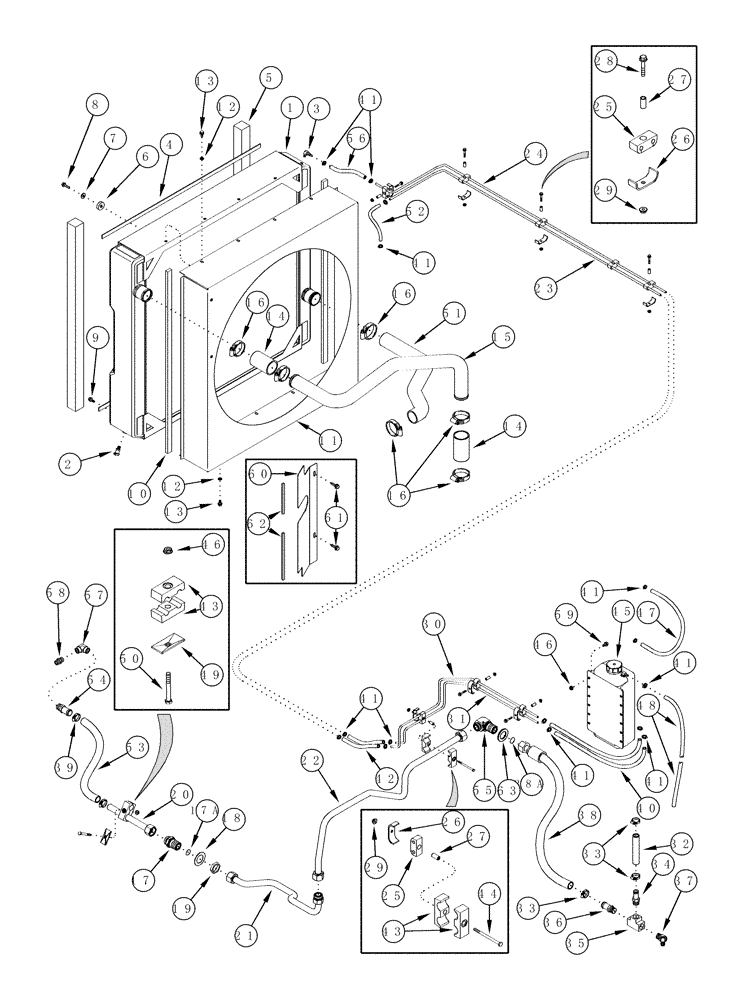

Запчасти Case IH CPX610 (02-01) - RADIATOR, FAN SHROUD AND COOLANT RECOVERY SYSTEM (01) - ENGINE

1

257533A2

RADIATOR

1шт.

2

86982771

VALVE

1/4 PT

1шт.

3

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

1шт.

4

370863A1

SEAL

960 mm (37-25/32 in), Cut From 195917C2

2шт.

5

370776A1

GASKET

973 mm (38-5/16 in), Cut From 1264566C2

2шт.

6

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

4шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

9 x 24 x 2 mm, Serial Range: -JJC0250200

4шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Start Serial: JJC0250200

4шт.

8

555-14

BOLT,M8 x 38.1mm, Cl 8.8

M8 x 30; 8.8

4шт.

9

370229A1

SCREW,Hex Flg, M8 x 20mm

M8 x 20

5шт.

10

368993A1

GASKET

960 mm (37-13/16 in), Cut From 87084C2

2шт.

11

345148A2

SHROUD

Engine Fan, Serial Range: -JJC0250200

1шт.

11

87410641

SHROUD

Engine Fan, Start Serial: JJC0250200

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

12

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Start Serial: JJC0250200

9шт.

13

905-8016

BOLT,Hex Flg, M8 x 16mm

, Serial Range: -JJC0250200

9шт.

14

292755A1

HOSE,57.15 mm ID x 101.60 mm, SAE 20R4 CLASS D1 PER SAE J20

101 mm (4 in)

2шт.

15

284758A3

TUBE,2.25" OD, 657, 364 mm Length

1шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

5шт.

17

201-116

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

blkhd 1-7/16 fc sl, Inc. 17A

1шт.

18

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1-17/32 x 2-1/2 x 3/64

1шт.

19

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

1-7/16 NF

1шт.

20

409129A1

TUBE

1шт.

21

409130A1

TUBE

1шт.

22

414309A2

TUBE

1шт.

23

409133A1

VENTILATION PIPE

Engine Vent

1шт.

24

409132A2

VENTILATION PIPE

Radiator Vent

1шт.

25

418783A1

CLAMP

8шт.

26

418784A1

PLATE

7шт.

27

418785A1

SPACER

7шт.

28

857-6035

BOLT

M6 x 35; 10,9, Serial Range: -JJC0250200

6шт.

28

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

1/4 x 1-1/2, Start Serial: JJC0250200

6шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

, Serial Range: -JJC0250200

7шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

, Start Serial: JJC0250200

7шт.

30

408595A1

VENTILATION PIPE

1шт.

31

408594A1

VENTILATION PIPE

Radiator Vent

1шт.

32

408599A1

HOSE ASSY.

144 mm (5-43/64 in)

1шт.

33

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

34

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

3/4 PT x barb

1шт.

35

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

3/4 fem PT

1шт.

36

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

37

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

38

408593A1

HOSE ASSY.

520 mm (20-1/2 in), Inc. 38A

1шт.

38a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

40

408605A1

HOSE

665 mm (26-3/16 in), Cut From 1254166C2

2шт.

41

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

14шт.

42

408604A1

HOSE

228 mm (9 in), Cut From 1254166C2

2шт.

43

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID

2шт.

44

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

, Serial Range: -JJC0250200

1шт.

44

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1/4 x 3-1/2, Start Serial: JJC0250200

1шт.

45

251245A1

RESERVOIR, COOLANT E

Includes 45A

1шт.

45a

238903A1

FILLER CAP

1шт.

46

825-5148

SERRATED NUT,M8, Flg Ser

, Serial Range: -JJC0250200

5шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0250200

5шт.

47

408608A1

HOSE

610 mm (24 in), Cut From 1254166C2

1шт.

48

408606A1

HOSE

2187 mm (86-1/8 inch), Cut From 1254166C2

1шт.

49

1347127C1

PLATE

1шт.

50

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

, Serial Range: -JJC0250200

1шт.

50

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

, Start Serial: JJC0250200

1шт.

51

257528A1

RADIATOR HOSE,57.15 mm ID x 497.80 mm, SAE 20R4 CLASS D-1, SAE R20

Lower

1шт.

52

408601A1

HOSE

838 mm (33 in)

1шт.

53

408600A1

HOSE

577 mm (22-3/4 in)

1шт.

54

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

55

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x bkhd fc

1шт.

56

408602A1

HOSE,8.30 mm ID x 175.00 mm

Cut From 1254166C2

1шт.

57

217-1124

ELBOW,45 Degree, 3/4"-14 Female

3/4 PT

1шт.

58

221-1212

FITTING

3/4 PT x 1-1/2

1шт.

59

905-8016

BOLT,Hex Flg, M8 x 16mm

, Serial Range: -JJC0250200

4шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0250200

4шт.

60

394803A2

PANEL

Heat Deflector

1шт.

61

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

62

195510A1

PROTECTION STRIP

91 mm (3-5/8 in), Cut From 1977224CX

2шт.

63

96-11144

WASHER,1.44" ID x 2.75" OD x 0.15" Thk

1-7/16 x 2-3/4 x 5/32

1шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
