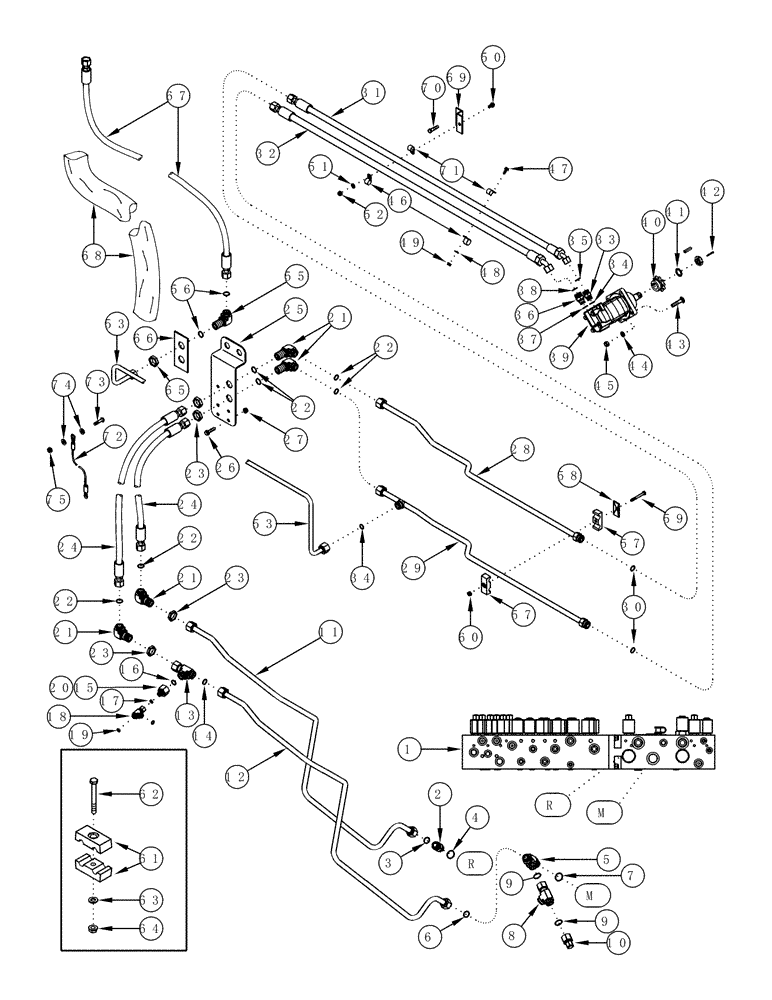

Запчасти Case IH CPX610 (08-27) - CONVEYOR UNLOADER MOTOR SYSTEM - ASN JJC0250100 (07) - HYDRAULICS

1

414467A1

VALVE

1шт.

See Figure 08-22

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 6, 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 9

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

10

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

11

1988938C1

TUBE

Supply

1шт.

12

1988939C1

TUBE

Return

1шт.

13

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 14

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

15

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Inc. 16, 17

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Inc. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

20

203-904

TUBE NUT,1 3/16"-12 ORFS

3/4

1шт.

21

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc x blkhd fc, Inc. 14

4шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

218-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

24

1984274C1

HOSE,19.05mm ID x 2500mm L

2500 mm (98-7/16 in), Bulkhead

2шт.

25

370372A2

BRACKET

1шт.

26

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

370245A3

TUBE,3" OD, 1388, 75 mm Length

Bulkhead

1шт.

29

370244A3

TUBE,3" OD, 1423, 75 mm Length

1шт.

30

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

31

191114A1

HOSE

1220 mm (48 in)

1шт.

32

140183A1

HYDRAULIC HOSE

1шт.

33

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 34, 35

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Incl. 37, 38

1шт.

37

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

429561A1

MOTOR, HYDRAULIC

Unloader, Inc. Key and Nut

1шт.

See Figure 08-40

1шт.

40

1260364C1

SPROCKET ASSY.

10 Teeth

1шт.

41

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

42

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

43

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2

4шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

45

425-108

NUT,1/2" - 13, Gr 5

4шт.

46

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

2шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

48

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

49

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

51

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

52

231-5146

FLANGE NUT,3/8"-16

1шт.

53

429556A1

TUBE

Auger Return

1шт.

54

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

55

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 56

1шт.

56

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

57

1546027C1

CLAMP

1шт.

58

1347127C1

PLATE

1шт.

59

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

61

1546027C1

CLAMP

2шт.

62

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

63

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

65

201-919

BHD LOCK NUT,1" - 14

5/8" OD Tube

1шт.

66

185479A1

SUPPORT

1шт.

67

231412A1

HOSE

Auger, Long

1шт.

68

246697A1

SLEEVE

1шт.

69

335724A1

SUPPORT

1шт.

70

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

71

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

72

87235C1

CHAIN

, Serial Range: -JJC0250200

1шт.

72

126396A1

CABLE

, Start Serial: JJC0250200

1шт.

73

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

1шт.

74

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

75

231-5146

FLANGE NUT,3/8"-16

1шт.
