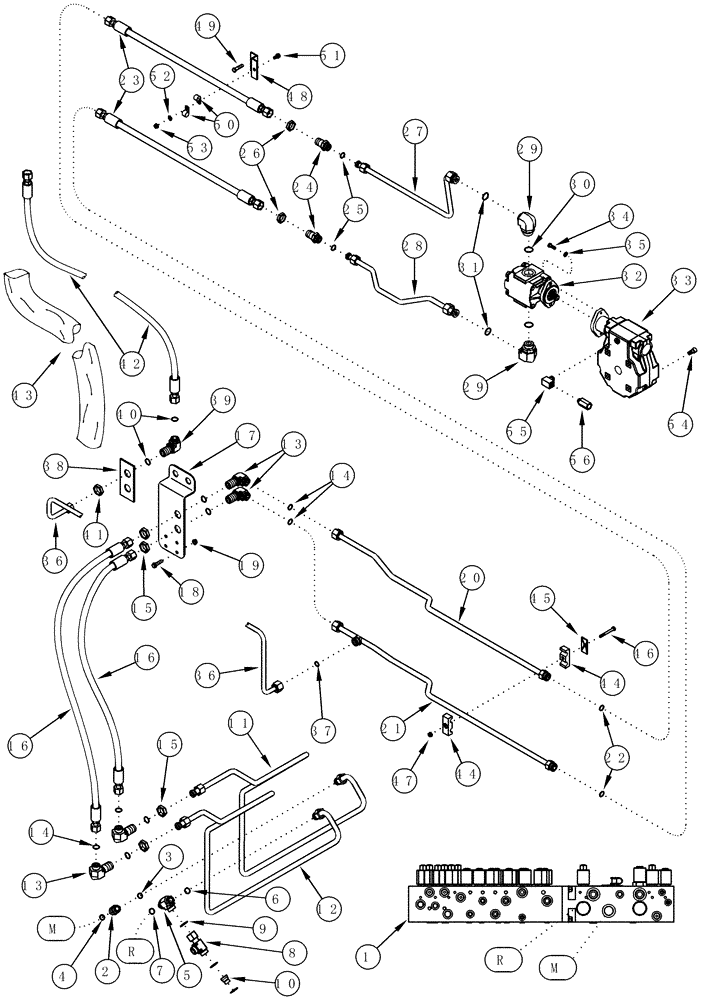

Запчасти Case IH CPX610 (08-26) - CONVEYOR UNLOADER MOTOR SYSTEM - BSN JJC0250100 (07) - HYDRAULICS

1

414467A1

VALVE

1шт.

See Figure 08-22

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 6, 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 9

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

10

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

11

1988938C1

TUBE

Supply

1шт.

12

1988939C1

TUBE

Return

1шт.

13

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc x blkhd fc, Inc. 14

4шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

218-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

16

1984274C1

HOSE,19.05mm ID x 2500mm L

2500 mm (98-7/16 in), Bulkhead

2шт.

17

370372A2

BRACKET

1шт.

18

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

370245A3

TUBE,3" OD, 1388, 75 mm Length

Bulkhead

1шт.

21

370244A3

TUBE,3" OD, 1423, 75 mm Length

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

407821A1

HOSE

1220 mm (48 in)

2шт.

24

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

1-3/16 fc, Inc. 25

2шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

27

401094A1

TUBE

Unloader Motor, Return

1шт.

28

401093A1

TUBE

Unloader Motor, Supply

1шт.

29

201-391

ELBOW,90 Degree, 1 7/16"-12 x 1 5/8"-12, Adj, ORFS

1 fcsl x 1-1/4 Or, Inc. 30, 31

2шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

294773A1

MOTOR, HYDRAULIC

Unloader, Not Serviced

1шт.

33

396683A1

GEARBOX ASSY

50:1, Not Serviced

1шт.

34

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

36

429556A1

TUBE

Auger Return

1шт.

37

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

185479A1

SUPPORT

1шт.

39

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 40

2шт.

40

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

41

201-919

BHD LOCK NUT,1" - 14

2шт.

42

1984269C1

HOSE,15.88mm ID x 2500mm L

2500 mm (98-7/16 in), Auger Supply

1шт.

43

134552A2

SLEEVE

1905 mm

1шт.

44

1546027C1

CLAMP

2 Piece

1шт.

45

1347127C1

PLATE

1шт.

46

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

48

335724A1

SUPPORT

1шт.

49

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

50

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

51

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

52

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

53

231-5146

FLANGE NUT,3/8"-16

1шт.

54

61-35016

HEX SOC SCREW,1/2"-13 x 1"

4шт.

55

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1/2 PT

1шт.

56

429567A1

CONNECTOR, ELEC

CONNECTOR

1шт.
