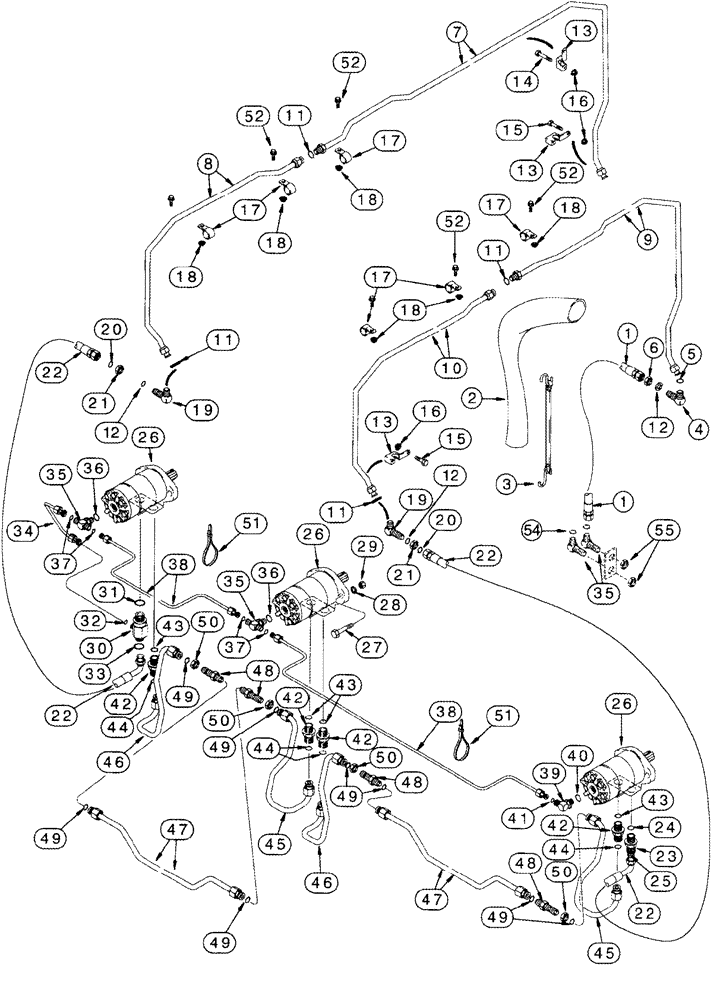

Запчасти Case IH CPX610 (08-25) - COMPACTOR AUGER DRIVE MOTOR SUPPLY AND RETURN LINES (07) - HYDRAULICS

1

231412A2

HOSE

2286 mm (90 in), Auger

2шт.

2

246697A1

SLEEVE

1шт.

3

246702A1

STRAP

381 mm (15 in)

2шт.

4

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 5

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

7

239361A1

HYD TUBE

Right Hand Front, Auger, Basket Lid, Overhead

1шт.

8

240786A1

HYD TUBE

Right Hand Rear, Auger, Basket Lid, Overhead

1шт.

9

239368A1

PIPE

Left Hand Front, Auger, Basket Lid, Overhead

1шт.

10

240785A1

HYD TUBE,0.5" OD

Left Hand Rear, Auger, Basket Lid, Overhead

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

12

895-10020

WASHER,22mm ID x 37mm OD x 3mm Thk

22 x 37 x 3 mm

4шт.

13

196447C1

CLAMP

If Used

6шт.

14

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

2шт.

15

326-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

4шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

17

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

8шт.

18

231-5146

FLANGE NUT,3/8"-16

8шт.

19

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 20

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

22

236023A1

HOSE

1020 mm (40-3/16 in)

2шт.

23

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 24, 25

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

395263A1

MOTOR, HYDRAULIC,195CC

Auger Drive, Order 188118A1

3шт.

395263A1R

REMAN-HYD MOTOR

CPX610

3шт.

395263A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

188118A1

SEAL KIT

1шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

29

425-108

NUT,1/2" - 13, Gr 5

6шт.

30

236695A1

TEE

Inc. 31 - 33, Special, Left Hand Motor

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

237219A1

HYD TUBE

Left Hand Drive Motor

1шт.

35

201-413

TEE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 7/16" - 20 ORB

7/16 Or x 9/16 fc x fc, Left Hand Drive Motor, Center Motor, Inc. 36, 37

2шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

38

237220A1

TUBE,0.25" OD

2шт.

39

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 or, Right Hand Drive Motor, Inc. 40, 41

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

41

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

42

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 43, 44

4шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

194532A1

HYD TUBE

Right Hand Drive Motor, Center Motor, Left Hand Port

2шт.

46

194533A1

HYD TUBE,0.5" OD

Left Hand Drive Motor, Center Motor, Right Hand Port

2шт.

47

194531A1

HYD TUBE,0.5" OD

2шт.

48

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 49

4шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

52

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

8шт.

53

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 54

2шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

55

201-919

BHD LOCK NUT,1" - 14

2шт.
