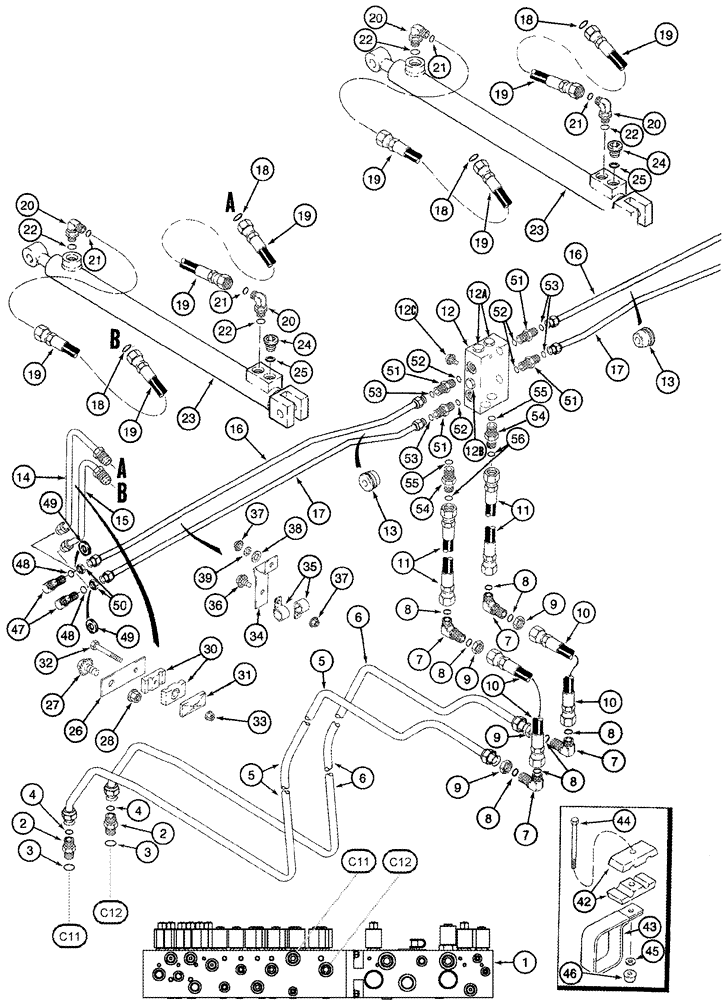

Запчасти Case IH CPX610 (08-18) - COMPACTOR CYLINDER SYSTEM (07) - HYDRAULICS

1

414467A2

MANIFOLD VALVE

, Serial Range: -JJC0250245

1шт.

See Figure 08-22

1шт.

1

87445254

MANIFOLD VALVE

, Start Serial: JFG010501

1шт.

See Figure 08-22

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

1988940C1

TUBE,0.625" OD

Lower

1шт.

6

1988941C1

TUBE

Raise

1шт.

7

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 8

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

201-919

BHD LOCK NUT,1" - 14

4шт.

10

1984269C1

HOSE,15.88mm ID x 2500mm L

2500 mm (98-7/16 in), See Below

2шт.

11

249148A1

HOSE

1910 mm (75-1/4 in)

2шт.

12

247579A2

VALVE

Compactor Divider, Inc. 12A, 12B

1шт.

12a

247697A2

VALVE, CHECK,3/4" - 16 ORB

Inc. 1542831C1

2шт.

1542831C1

SEAL KIT

Seal

1шт.

12b

247698A1

VALVE

Fow Control, Inc. 247675A1

1шт.

247675A1

SEAL KIT

1шт.

12c

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Mounts Compactor Divider Valve to Basket Wall

2шт.

13

240759A1

GROMMET

If Used

4шт.

14

224071A1

HYD TUBE,0.5" OD

Cylinder, Outer, Upper

2шт.

15

184846A1

HYD TUBE

Cylinder, Outer, Lower

2шт.

16

248137A1

HYD TUBE,0.5" OD, 1464 mm Length

Cylinder, Cylinder Supply

2шт.

17

248136A1

HYD TUBE,0.5" OD, 1464 mm Length

Cylinder, Cylinder Return

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

19

1984267C1

HOSE,12.7mm ID x 625mm L

625 mm (24-5/8 in)

4шт.

20

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 21, 22

4шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

38 ID x 501 mm strk, Basket Compactor

2шт.

See Figure 08-38

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

224604A1

PLATE

Clamp Mounting

2шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

30

1546025C1

CLAMP

2 Piece

2шт.

31

1347127C1

PLATE

2шт.

32

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

34

1349876C1

SUPPORT

Compactor Tube Support

2шт.

35

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

4шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

42

1546026C1

CLAMP

2шт.

43

1301387C2

CLIP

2 in ID, Square

1шт.

44

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

45

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

47

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 48

4шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

895-10020

WASHER,22mm ID x 37mm OD x 3mm Thk

22 x 37 x 3 mm

8шт.

50

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

51

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 52, 53

4шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 55, 56

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

56

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Note: See Figures 08-26, 08-27 For Hose Sleeve, Bracket and Mounting Hardware.

1шт.
