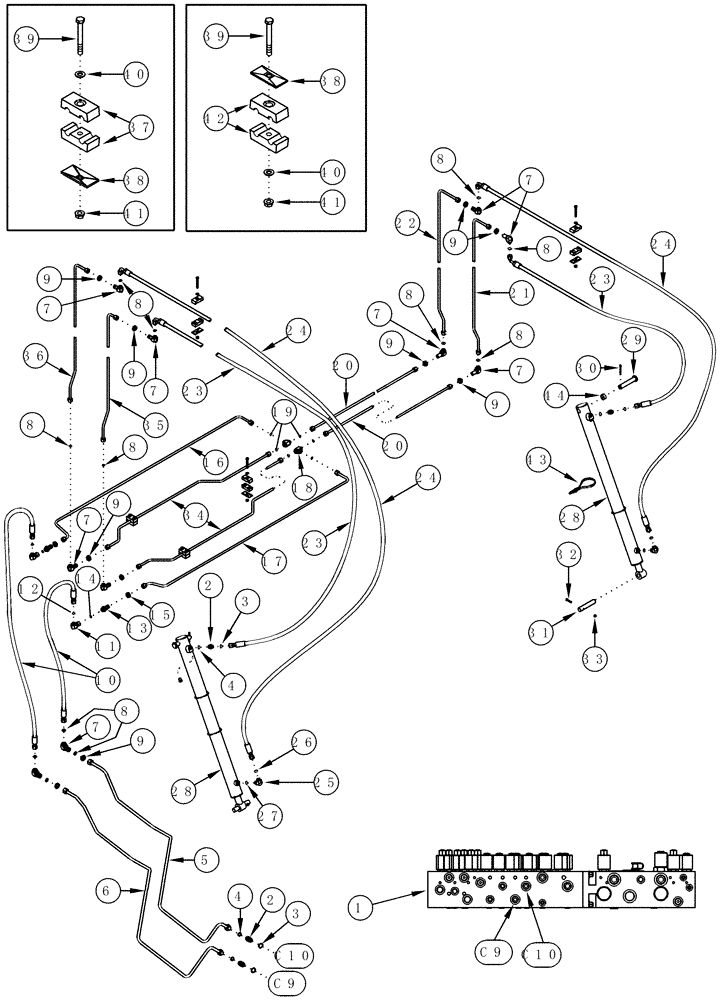

Запчасти Case IH CPX610 (08-17) - BASKET DOOR CYLINDER SYSTEM - ASN JJC0250100 (07) - HYDRAULICS

1

414467A2

MANIFOLD VALVE

, Serial Range: -JJC0250245

1шт.

See Figure 08-22

1шт.

1

87445254

MANIFOLD VALVE

, Start Serial: JFG010501

1шт.

See Figure 08-22

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

4шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

1988937C1

TUBE,0.5" OD

Door Open

1шт.

6

1988936C1

TUBE

Door Close

1шт.

7

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 8

6шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

201-903

TUBE NUT,Blkhd, 13/16"-16

6шт.

10

1984271C1

HOSE,12.7mm ID x 2500mm L

2500 mm (98-7/16 in)

2шт.

11

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Elbow, 90, Inc. 12, Serial Range: -JJC0250099

2шт.

11

87013112

ELBOW,45 Degree, 13/16"-16 x 13/16"-16 Fem Sw

45, Inc. 12, Start Serial: JJC0250100

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 14

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

201-903

TUBE NUT,Blkhd, 13/16"-16

10шт.

16

447561A1

TUBE

Door Bottom Close

1шт.

17

447818A1

TUBE

Door Bottom Open

1шт.

18

201-409

TEE,13/16"-16 ORFS

Inc.19

2шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

447560A1

TUBE

Door Rear Bottom

2шт.

21

416295A1

TUBE

Door Rear Open

1шт.

22

416296A1

TUBE

Door Rear Close

1шт.

23

319081A2

HOSE

1640 mm (64-9/16 in), Door Open

2шт.

24

319082A1

HOSE

2550 mm (100-3/8 in), Door Close

2шт.

25

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 25, 26

2шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

448192A1

CYLINDER ASSY.

Basket Door, Serial Range: JJC0250100-JJC0250245

2шт.

See Figure 08-37

1шт.

28

87444980

CYLINDER ASSY.

Basket Door, Start Serial: JFG010501

2шт.

See Figure 08-37A

1шт.

29

277500A1

PIN

1 x 5 in

2шт.

30

432-1636

COTTER PIN,1/4" x 2 1/4"

2шт.

31

259519A1

PIN

1 x 5-5/32 in

2шт.

32

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

33

231-1446

NUT,3/8" - 16, Gr 5

2шт.

34

447559A1

TUBE

Door Front Bottom

2шт.

35

416293A1

TUBE

Door Front Open

1шт.

36

416294A1

TUBE

Door Front Close

1шт.

37

1546025C1

CLAMP

2 Piece

4шт.

38

1347127C1

PLATE

6шт.

39

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

6шт.

40

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

41

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

6шт.

42

1546027C1

CLAMP

2шт.

43

291207C1

CLAMP

14 in

4шт.

44

623907R1

SPACER,1" Pipe x 5/8"

1 ID x 5/8

2шт.
