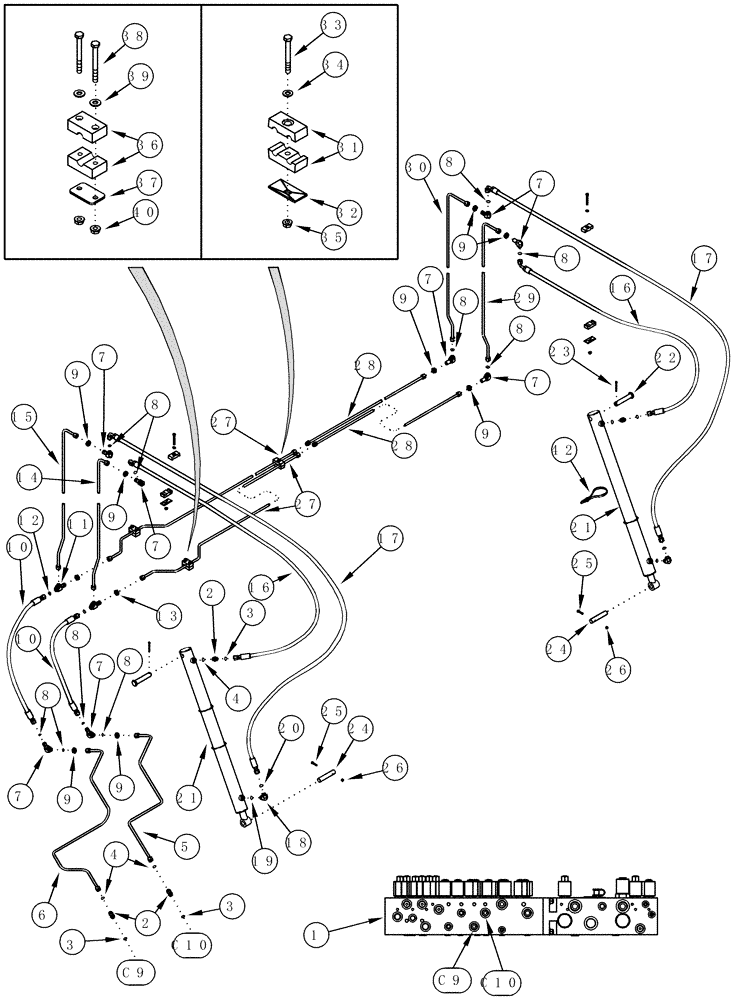

Запчасти Case IH CPX610 (08-16) - BASKET DOOR CYLINDER SYSTEM - BSN JJC0250100 (07) - HYDRAULICS

1

414467A2

MANIFOLD VALVE

, Serial Range: -JJC0250245

1шт.

See Figure 08-22

1шт.

1

87445254

MANIFOLD VALVE

, Start Serial: JFG010501

1шт.

See Figure 08-22

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

4шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

1988937C1

TUBE,0.5" OD

Door Open

1шт.

6

1988936C1

TUBE

Door Close

1шт.

7

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 8

6шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

201-903

TUBE NUT,Blkhd, 13/16"-16

6шт.

10

1984271C1

HOSE,12.7mm ID x 2500mm L

2500 mm (98-7/16 in)

2шт.

11

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Inc. 12

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

13

201-903

TUBE NUT,Blkhd, 13/16"-16

8шт.

14

416293A1

TUBE

Door Open, Front

1шт.

15

416294A1

TUBE

Door Close, Front

1шт.

16

319081A2

HOSE

1640 mm (64-9/16 in), Door Open

2шт.

17

319082A1

HOSE

2550 mm (100-3/8 in), Door Close

2шт.

18

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 19, 20

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

257388A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 892.1mm Stroke

Basket Door

2шт.

See Figure 08-36

1шт.

22

277500A1

PIN

1 x 5 in

2шт.

23

432-1636

COTTER PIN,1/4" x 2 1/4"

2шт.

24

259519A2

PIN

1 x 5-5/32 in

2шт.

25

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

26

231-1444

NUT,1/4"-20, GB

2шт.

27

316908A2

HYD TUBE,0.5" OD, 2510.3, 100 mm Length

Door Front, Bottom

2шт.

28

317186A2

TUBE

Door Rear, Bottom

2шт.

29

416295A1

TUBE

Door Open, Rear

1шт.

30

416296A1

TUBE

Door Close, Rear

1шт.

31

1546027C1

CLAMP

2шт.

32

1347127C1

PLATE

4шт.

33

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

34

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

35

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

4шт.

36

118633A1

CLAMP

1/2 in

2шт.

37

1541537C1

PLATE

2шт.

38

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

4шт.

39

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

40

425-284

FLANGE NUT,Flg, 1/4"-20.G5

1/4

4шт.

41

1546025C1

CLAMP

2 Piece

2шт.

42

306132C1

CABLE TIE,14.5" L

CABLE STRAP Tie, 14"

4шт.
