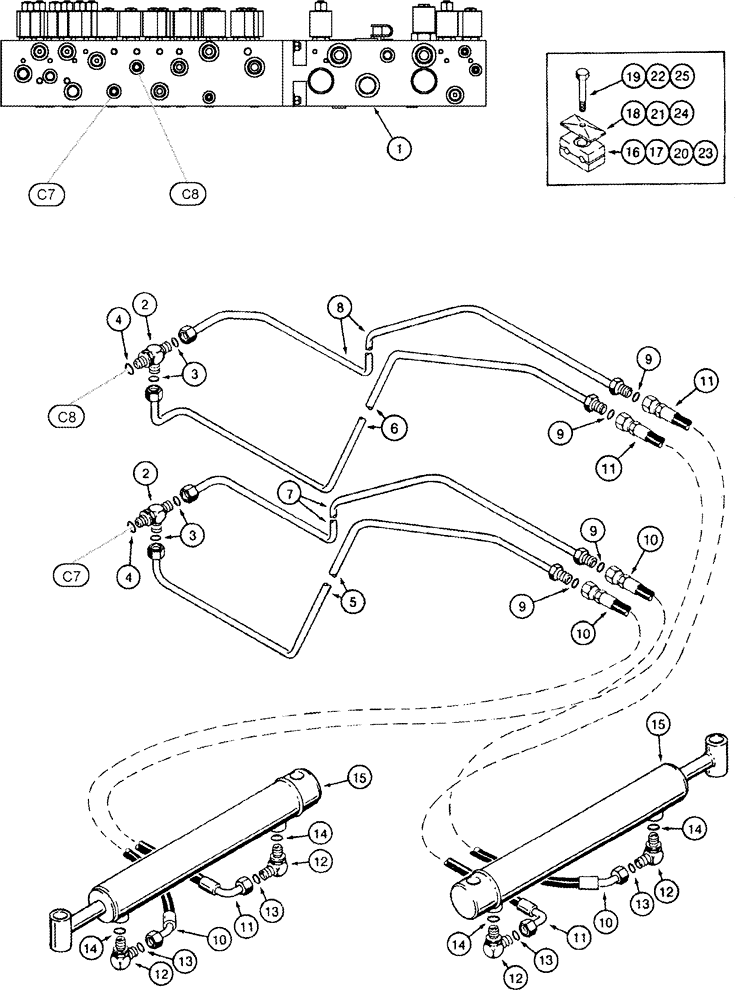

Запчасти Case IH CPX610 (08-14) - DRUM SERVICE CLOSE AND SPREAD SYSTEM (07) - HYDRAULICS

1

414467A2

MANIFOLD VALVE

, Serial Range: -JJC0250245

1шт.

See Figure 08-22

1шт.

1

87445254

MANIFOLD VALVE

, Start Serial: JFG010501

1шт.

See Figure 08-22

1шт.

2

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Incl 3, 4

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

1988932C1

TUBE

Right Hand, Drum Close

1шт.

6

1988933C1

TUBE

Right Hand, Drum Spread

1шт.

7

1988934C1

TUBE

Left Hand, Drum Close

1шт.

8

1988935C1

TUBE

Left Hand, Drum Spread

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

1984281C2

HOSE

1575 mm (62 in), Drum Close, Serial Range: -JJC0250245

2шт.

10a

87440385

HOSE

HOSE 1575 mm (62 in), Drum Close, Start Serial: JFG010501

2шт.

11

1984282C2

HOSE

1450 mm (57 in), Drum Spread

2шт.

12

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

11/16 fc x 3/4 Or, Inc. 13, 14, Serial Range: -JJC0250245

4шт.

12a

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/8 fc x 3/8 Or, Incl 13, 14A, Start Serial: JFG010501

4шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Serial Range: -JJC0250245

1шт.

15

1542544C1

CYLINDER ASSY.

57 ID x 375 mm strk, Drum Spread, Serial Range: -JJC0250245

2шт.

See Figure 08-32

1шт.

15a

87423752

CYLINDER,Double Acting, 31.75mm Rod, 374.65mm Stroke

CYLINDER ASSY. 70 mm (2-3/4 in) ID x 375 mm (14-3/4 in) strk, Start Serial: JFG010501

2шт.

See Figure 08-32A

1шт.

16

1546025C1

CLAMP

2 Piece

2шт.

17

1546024C1

CLAMP

2 Piece

2шт.

18

1347127C1

PLATE

2шт.

19

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

20

1546024C1

CLAMP

2 Piece

4шт.

21

1347127C1

PLATE

2шт.

22

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

5/16 x 1-3/8

2шт.

23

1546026C1

CLAMP

2шт.

24

1347127C1

PLATE

6шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

, Start Serial: JFG010501

1шт.
