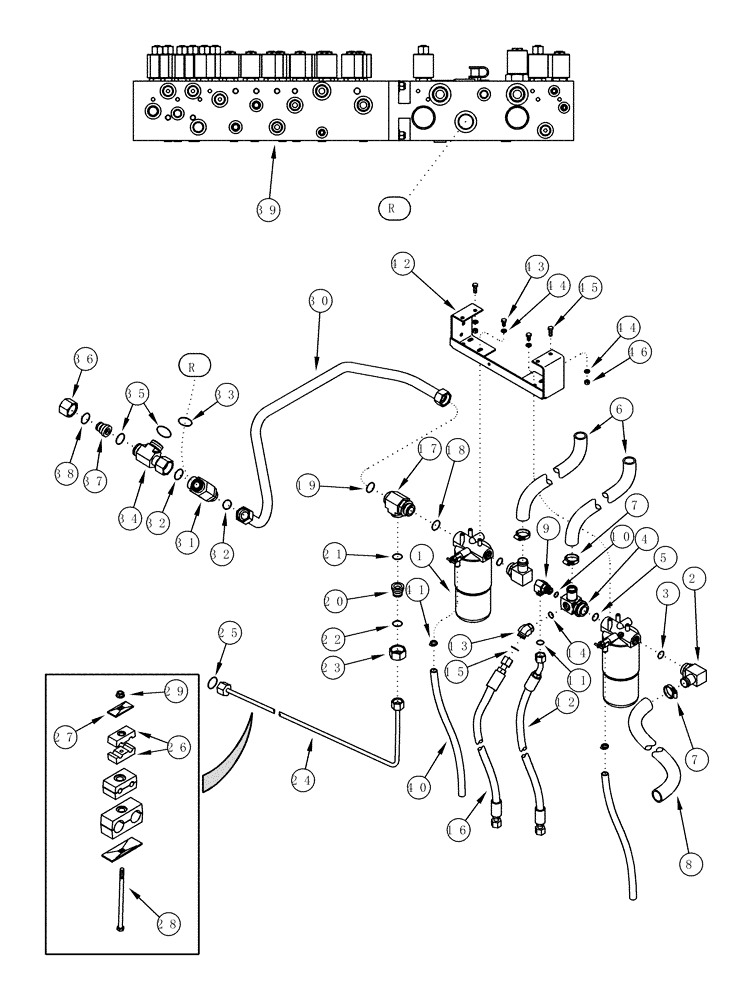

Запчасти Case IH CPX610 (08-03) - HYDRAULIC FILTERS (07) - HYDRAULICS

1

87784C92

HYDRAULIC OIL FILTER

2шт.

See Figure 08-04

1шт.

2

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 3

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

198617A2

ELBOW

Special, Inc. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

1989349C3

HOSE

270 mm (10-5/8 in), Cut From 1541953C1

2шт.

See Figure 08-01

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

8

408847A1

HOSE

450 mm (17-3/4 in), Cut From 1541953C1

1шт.

See Figure 06-04

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 10,11

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

399768A1

HOSE ASSY.

685 mm (26-31/32 in)

1шт.

See Figure 08-05

1шт.

13

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 14, 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

187671A1

HOSE

1985 mm (78-1/8 in)

1шт.

See Figure 07-02

1шт.

17

201-414

TEE,1 11/16"-12 x 1 5/8"-12 Run, ORFS

1-11/16 Or x 1-5/16 Or, Inc. 18, 19

1шт.

18

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

19

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

20

201-144

REDUCER,1 3/16"-12 Male x 1 11/16"-12 Fem, ORFS

1-1/4 Or x 3/4, Inc. 21, 22

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

23

203-906

TUBE NUT,1 11/16"-12 ORFS

1шт.

24

390565A1

TUBE,1" OD, 1510, 252 mm Length

Air Screen Return

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

1546025C1

CLAMP

2 Piece

3шт.

27

1347127C1

PLATE

3шт.

28

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

.313 X 6 UNC GR5 YZD

2шт.

29

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

2шт.

30

390566A1

TUBE

Filter Return

1шт.

31

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 32, 33

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 35

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

36

203-904

TUBE NUT,1 3/16"-12 ORFS

1шт.

37

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Inc. 38

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

414467A1

VALVE

1шт.

See Figure 08-22

1шт.

40

129096A1

HOSE

735 mm (29 in), Cut From 1977295CX

2шт.

41

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

42

300278A1

BRACKET

Filter Mounting

1шт.

43

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

44

492-11038

LOCK WASHER,3/8"

6шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

46

425-106

NUT,3/8"-16, Cl 5

4шт.
