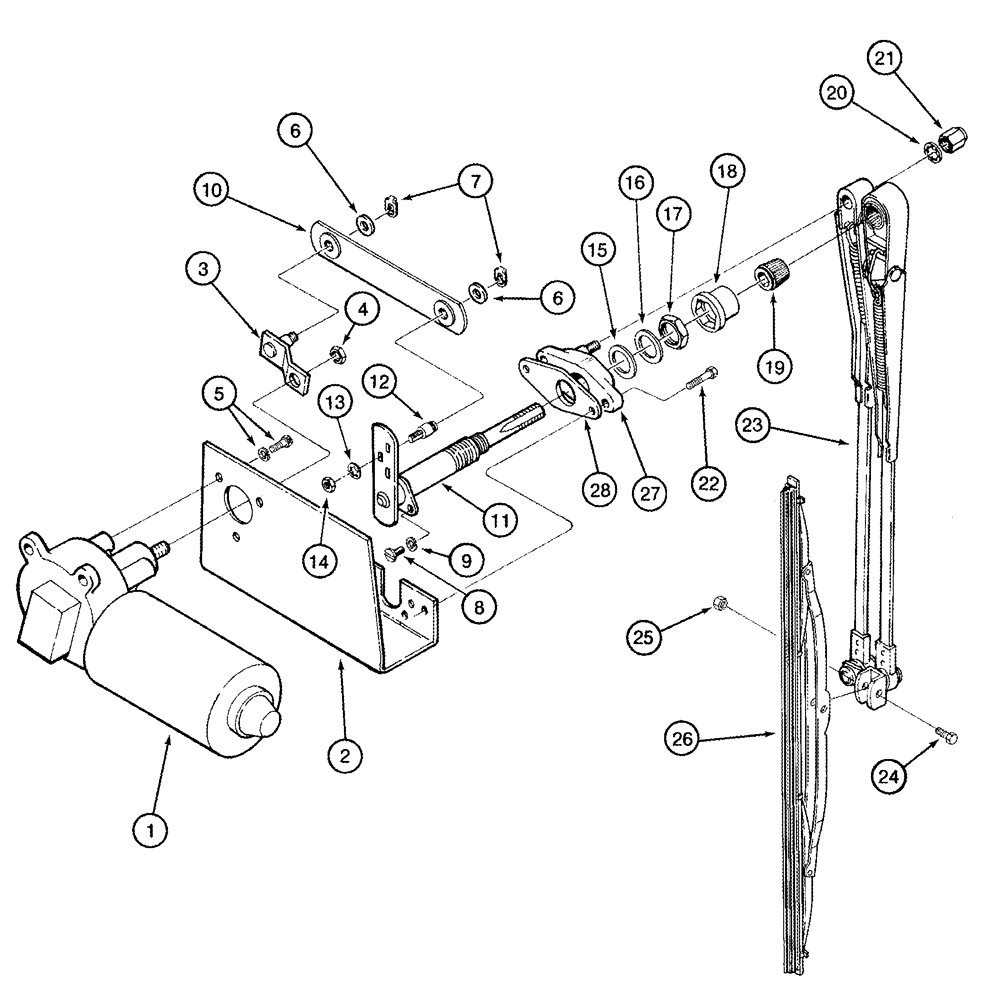

Запчасти Case IH CPX610 (04-24) - WINDSHIELD WIPER SINGLE BLADE (06) - ELECTRICAL SYSTEMS

137608A1

WIPER MOTOR

MOTOR, WIPER Inc. 1 - 21

1шт.

1

60-6586T1

WIPER MOTOR

MOTOR, WIPER

1шт.

2

D72850

BRACKET

1шт.

3

60-6626T1

LEVER

Drive

1шт.

4

143267A1

LOCK NUT

1шт.

5

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

3шт.

5

492-11025

LOCK WASHER,1/4"

3шт.

6

A22431

WASHER

2шт.

7

D71414

CLIP

2шт.

8

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

2шт.

9

A22431

WASHER

2шт.

10

D71427

LINK,85.85mm L

1шт.

137961A1

SHAFT

Inc. 11 - 21, Replaces N6714

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

12

D73642

PIN

1шт.

13

493-21026

LOCK WASHER,Int Tooth, 1/4"

1шт.

14

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

15

D71417

SPECIAL WASHER

1шт.

16

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

23/32 x 1-1/4 x 3/64

1шт.

17

D71419

NUT

1шт.

18

D71420

CAP

1шт.

19

N6753

BLOCK DRIVER

1шт.

20

493-21039

LOCK WASHER,Int Tooth, 3/8"

1шт.

21

60-6635T1

NUT

1шт.

22

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

2шт.

23

121259A1

WIPER ARM

ARM, WIPER 559 mm (22 in), Inc. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW

1шт.

25

NSS

NOT SOLD SEPARAT

NUT

1шт.

26

121260A1

WIPER BLADE

BLADE, WIPER 502 mm (19-3/4 in)

1шт.

133935A1

PACKAGE

Wiper Adapter, Inc. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET, plate

1шт.
