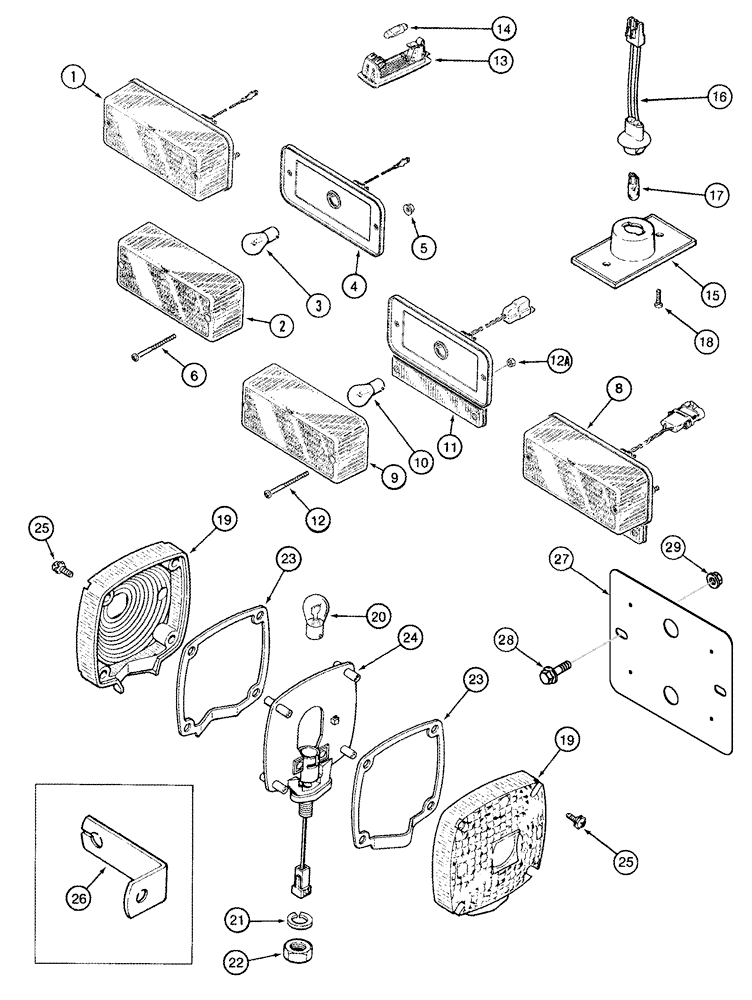

Запчасти Case IH CPX610 (04-22) - LAMP ASSEMBLIES - WARNING, STOP-TAIL, DOME, AND CONSOLE (06) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

Warning, Front, Rear, Inc. 2 - 4

4шт.

2

130883C1

LENS

Amber

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, Order 130882C91

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

6

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

No. 10 x 2-1/4

8шт.

8

92260C1

LAMP,12V, 27W, Red

Stop-Tail, Inc. 9 - 11

2шт.

9

216045C1

LENS

Red

1шт.

10

T34857

BULB,C6, #1157, 12.8V

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, Order 92260C1

1шт.

12

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

No. 10 x 2-1/4

4шт.

12a

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

13

429726A1

COURTESY LIGHT

DOME LIGHT Inc. 14

2шт.

14

E35556

BULB,12V, 10W

1шт.

83882C91

LAMP

Console, Inc. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

LENS, Order 83882C91

1шт.

16

107329C1

WIRE HARNESS

1шт.

17

D71346

TAIL LAMP,12V

No. 168

1шт.

18

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

83885C91

LAMP

Warning, Drum, Side, Inc. 19 - 25, Order 192051A1

2шт.

192051A1

SERVICE KIT

Warning Lamp, Inc. 19 - 25, Connector and Instructions

1шт.

19

A44202

KIT

Amber Lens, Inc. 25

1шт.

20

A41264

BULB,#1156, 12V

2шт.

21

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

A43731

GASKET

Lens

2шт.

24

NSS

NOT SOLD SEPARAT

BODY, Order 192051A1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW

8шт.

26

1283289C1

ANGLE

Mounting, Side Warning Lamp Assembly

2шт.

See Figure 9E-21

1шт.

27

87409362

BRACKET

Light Support

2шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

29

231-5146

FLANGE NUT,3/8"-16

(5)

4шт.
