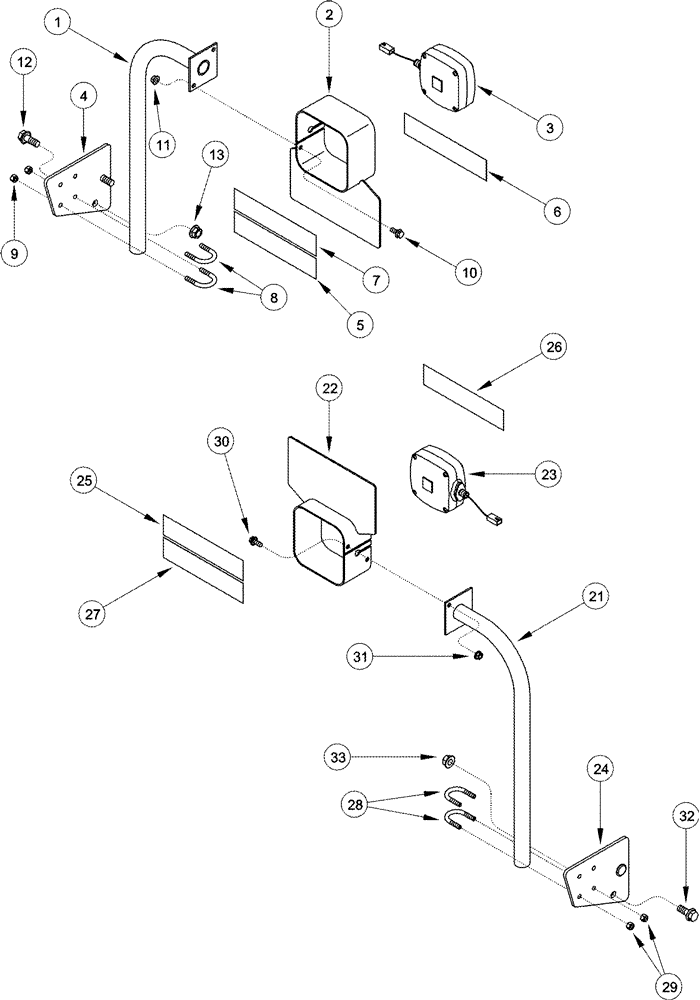

Запчасти Case IH CPX610 (04-21A) - WARNING LIGHT - TOOLBAR/DRUM (06) - ELECTRICAL SYSTEMS

414065A1

LIGHT

LIGHT ASSY Left Hand, Inc. 1 - 13, Order Components

1шт.

1

414130A1

SUPPORT

1шт.

2

414061A1

BRACKET

1шт.

3

429000A1

LAMP

Side Warning, See Figure 04-25

1шт.

4

414131A1

BRACKET

1шт.

5

311863A1

REFLECTOR

Red

1шт.

6

311864A1

REFLECTOR

Amber

1шт.

7

311865A1

REFLECTOR

Orange

1шт.

8

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

2шт.

9

231-4215

LOCK NUT,5/16"-18, GB

4шт.

10

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

1/2 x 2

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

12

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

414066A1

LIGHT

LIGHT ASSY Right Hand, Inc. 21 - 33, Order Components

1шт.

21

414130A1

SUPPORT

1шт.

22

414061A1

BRACKET

1шт.

23

429000A1

LAMP

Side Warning, See Figure 04-25

1шт.

24

414132A1

BRACKET

1шт.

25

311863A1

REFLECTOR

Red

1шт.

26

311864A1

REFLECTOR

Amber

1шт.

27

311865A1

REFLECTOR

Orange

1шт.

28

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

2шт.

29

231-4215

LOCK NUT,5/16"-18, GB

4шт.

30

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

1/2 x 2

2шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

32

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

33

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
