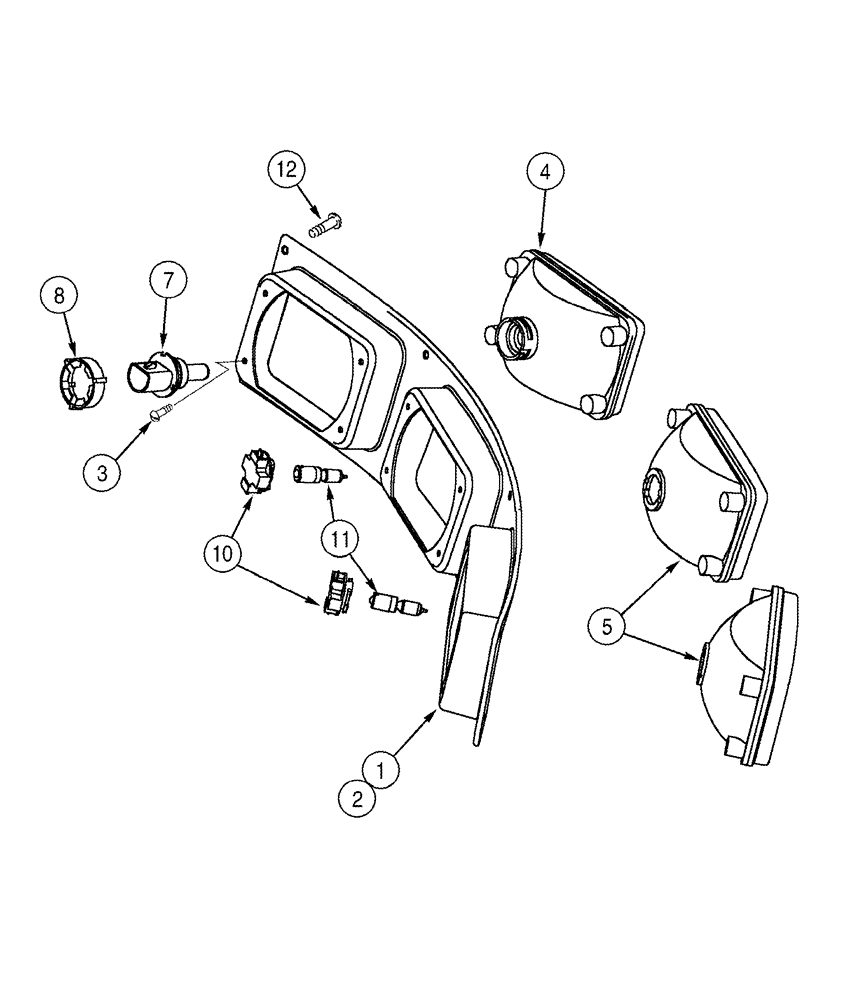

Запчасти Case IH CPX610 (04-21) - LAMP ASSY DRIVE AND FLOOD (06) - ELECTRICAL SYSTEMS

1

339704A1

BEZEL

Lamps, RH, Fixed

1шт.

2

339705A1

BEZEL

Lamps, LH, Fixed, Not Illustrated

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

24шт.

4

138224A1

WORK LAMP

High Low, Left Hand, Shown

1шт.

4a

183161A1

WORK LAMP

High Low, Right Hand, Not Illustrated

1шт.

5

183162A1

WORK LAMP

LH ,Centre, Outer, Left, Shown

2шт.

5a

138225A1

WORK LAMP

Right Centre, Outer, RH, Not Illustrated

2шт.

7

137823A1

BULB,#9004, 65W/50W

1шт.

8

137825A1

RETAINER COLLAR

1шт.

10

137827A1

LAMP SOCKET

2шт.

11

137828A1

BULB

65W

2шт.

12

137829A1

SCREW,Hex Rec Hd, #10 - 24 x 76.20mm

No. 10 x 3

9шт.

13

137831A1

RETAINER

Screw, Not Illustrated

9шт.
